Emilio Stainless is a reputable manufacturer and supplier of top-notch AWS Class E330-16 electrodes, proudly based in Manila, Philippines. With a strong dedication to quality and years of industry know-how, Emilio Stainless caters to a variety of industrial sectors by offering reliable welding solutions that align with international standards. Renowned for their precision engineering and consistent product performance, the company’s electrodes are specifically crafted to excel in high-temperature and corrosion-resistant welding applications. Emilio Stainless takes pride in being a local leader in providing AWS E330-16 electrodes, bolstering Philippine industries with trustworthy and cost-effective welding materials that are built to endure.
The AWS Class E330-16 electrodes from Emilio Stainless are tailored for welding heat- and oxidation-resistant alloys. These electrodes typically feature around 35% nickel, 15% chromium, and 2% silicon, which together deliver outstanding resistance to oxidation and scaling at high temperatures. The weld deposit boasts moderate strength, with tensile strengths reaching up to 75,000 psi. Its well-balanced composition ensures high resistance to thermal fatigue and creep. Emilio Stainless guarantees that each batch of electrodes meets stringent AWS specifications, ensuring reliable weld integrity, stable arcs, and ease of use in demanding industrial settings.
| 2B Finish Stainless Steel Plate Specification | ASTM A240 / ASME SA240 |
| 2B Finish Stainless Steel Manufacturing Process | Hot Rolled (HR) / Cold Rolled (CR) |
| 2B Finish Stainless Steel Plate Grades | 202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. UNS No. – UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904 EN No. – 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539 |
| 2B Finish Stainless Steel Plate Thickness | 0.6 MM TO 80 MM THICKNESS |
| 2B Finish Stainless Steel Plate Width | 1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement |
| 2B Finish Stainless Steel Plate Length | 2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement |
| 2B Finish Stainless Steel Plate Surface Finish | 2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available. |
| 2B Finish Stainless Steel Plate Coating | PVC coating Normal / Laser, Film: 100 micrometer, Color: black/white. |
| Designation | Chemical composition % by mass max unless stated | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNS No | SAE No | AISI No / Common Name | C | Si | Mn | P | S | Cr | Mo | Ni | Others |
| S30100 | 30301 | 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0/18.0 | – | 6.0/8.0 | N 0.10 |
| S30103 | – | 301L | 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0/18.0 | – | 6.0/8.0 | N 0.20 |
| S30153 | – | 301LN | 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0/18.0 | – | 6.0/8.0 | N 0.07/0.20 |
| S30200 | 30302 | 302 | 0.15 | 0.75 | 2.00 | 0.045 | 0.030 | 17.0/19.0 | – | 8.0/10.0 | N 0.10 |
| S30215 | 30302B | 302B | 0.15 | 2.00/3.00 | 2.00 | 0.045 | 0.030 | 17.0/19.0 | – | 8.0/10.0 | – |
| S30300 | 30303 | 303 | 0.15 | 1.00 | 2.00 | 0.20 | 0.15 min | 17.0/19.0 | – | 8.0/10.0 | |
| S30310 | – | XM-5 (303Plus x) | 0.15 | 1.00 | 2.50/4.50 | 0.20 | 0.25 min | 17.00/19.00 | – | 7.00/9.00 | – |
| S30323 | 30303Se | 303Se | 0.15 | 1.00 | 2.00 | 0.20 | 0.060 | 17.0/19.0 | – | 8.0/10.0 | Se 0.15 min |
| S30330 | – | 303Cu | 0.15 | 1.00 | 2.00 | 0.15 | 0.10 min | 17.0/19.0 | – | 6.0/10.0 | Cu 2.5/4.0; Se 0.10 |
| S30400 | 30304 | 304 | 0.07 | 0.75 | 2.00 | 0.045 | 0.030 | 17.5/19.5 | – | 8.0/10.5 | N 0.10 |
| S.S. | 200 | 202 | 301 | 302 | 303 | 304 | 304L | 309 | 309s | 310 | 310s | 314 | 316 | 316L | 317 | 321 | 347 |
| Tensile Strength | 105 | 105 | 110 | 90 | 90 | 85 | 60 | 90 | 90 | 95 | 95 | 100 | 85 | 78 | 90 | 87 | 92 |
| Yield Strength | 55 | 55 | 40 | 37 | 35 | 35 | 30 | 40 | 40 | 40 | 40 | 50 | 35 | 30 | 40 | 35 | 35 |
| Elongation in 2′ | 55 | 55 | 60 | 55 | 50 | 55 | 55 | 45 | 45 | 45 | 45 | 45 | 55 | 55 | 50 | 55 | 50 |
| Rockwell | 90 | 90 | 85 | 82 | 84 | 80 | 76 | 85 | 85 | 87 | 87 | 87 | 80 | 76 | 85 | 80 | 84 |
| Brinell | 185 | 185 | 165 | 155 | 160 | 150 | 140 | 165 | 165 | 170 | 170 | 170 | 150 | 145 | 160 | 150 | 160 |
| En58M | En58E | En58J&H | En58C | ||||||||||||||
| X12 CrNi17.7 | X2 CrNi18.8 | X5 CrNi18.9 | X5 CrNi18.8 | x5 CrNiMo18.12 | X2 CrNiMo19.1 | X10 CrNiMo18.9 | |||||||||||
| AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. | AUST. |
Contact us to get a quick quote for your requirement.

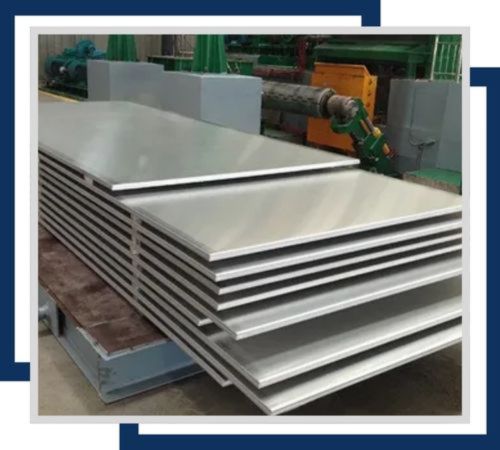

Corrosion-resistant and ideal for structural applications, hot-rolled stainless steel sheets and plates are produced at high temperatures. They typically range in thickness from 3mm to 100mm and can be found in widths up to 2000mm and lengths up to 6000mm.

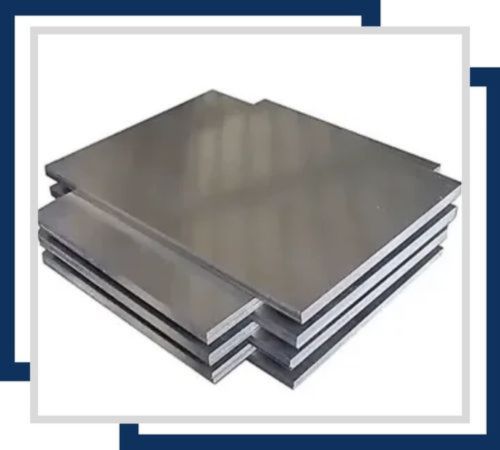

Offering superior surface finish and tighter tolerances, cold-rolled stainless steel sheets and plates are less prone to corrosion. These sheets usually have thicknesses between 0.3mm and 6mm and come in widths up to 1500mm and lengths up to 4000mm.

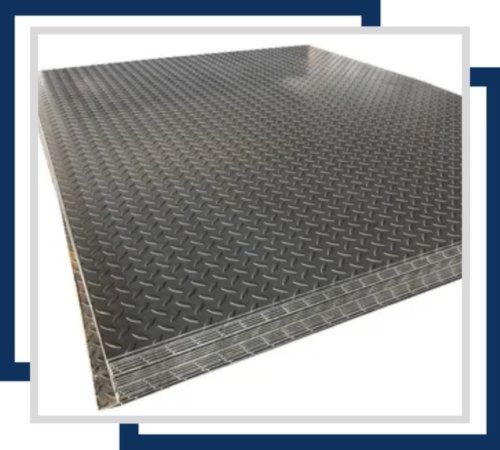

Chequered stainless steel sheets and plates enhance slip resistance and durability while being corrosion-resistant. They are commonly available in thicknesses ranging from 1mm to 10mm and sizes up to 1500mm x 6000mm, featuring a patterned surface for improved traction.

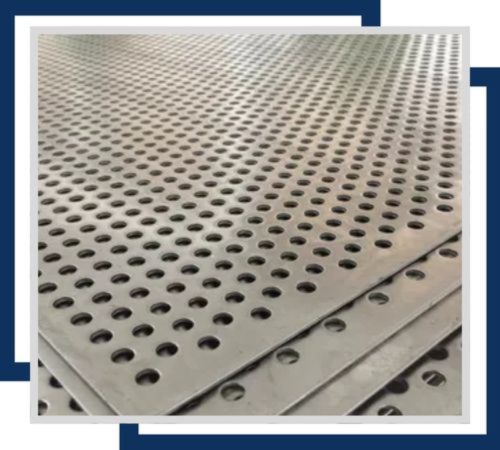

These sheets offer excellent corrosion resistance and are designed with various hole patterns for aesthetic and functional purposes. Perforated stainless steel sheets typically come in thicknesses from 0.5mm to 6mm and sizes up to 1200mm x 2400mm, depending on the hole pattern.
Each 2B-Finish Stainless Steel Sheet is packed religiously with high-quality packing material to avoid scratches, impact, and contamination in transit. We strive for customer satisfaction; hence, we deliver promptly through efficient and reliable transport services. As such, all necessary documents relating to a product, inclusive of quality certificates and dispatch data, are handed over to clients on delivery of their purchased product, ensuring that the process is completely transparent.
Emilio Stainless’s AWS Class E330-16 electrodes are extensively utilized in industries that require exceptional heat and oxidation resistance. These electrodes are perfect for welding both cast and wrought forms of the 330 stainless steel alloy, which is commonly found in heat-treating equipment, furnace components, chemical processing, and petrochemical facilities. Their impressive performance at temperatures soaring up to 1150°C makes them ideal for fabricating and repairing parts that face thermal cycling and oxidizing conditions. Whether for new projects or maintenance welding, Emilio Stainless provides E330-16 electrodes that ensure consistent quality and durability, supporting the needs of various industries.
