Emilio Stainless is a reputable manufacturer and supplier of top-notch AWS Class E330-16 electrodes, proudly based in Manila, Philippines. With a strong dedication to quality and years of industry know-how, Emilio Stainless caters to a variety of industrial sectors by offering reliable welding solutions that align with international standards. Renowned for their precision engineering and consistent product performance, the company’s electrodes are specifically crafted to excel in high-temperature and corrosion-resistant welding applications. Emilio Stainless takes pride in being a local leader in providing AWS E330-16 electrodes, bolstering Philippine industries with trustworthy and cost-effective welding materials that are built to endure.
The AWS Class E330-16 electrodes from Emilio Stainless are tailored for welding heat- and oxidation-resistant alloys. These electrodes typically feature around 35% nickel, 15% chromium, and 2% silicon, which together deliver outstanding resistance to oxidation and scaling at high temperatures. The weld deposit boasts moderate strength, with tensile strengths reaching up to 75,000 psi. Its well-balanced composition ensures high resistance to thermal fatigue and creep. Emilio Stainless guarantees that each batch of electrodes meets stringent AWS specifications, ensuring reliable weld integrity, stable arcs, and user-friendliness across demanding industrial applications.
| Product Name | 17-7 ph stainless steel coil |
| Grades | 301/EN 1.4310/SUS301 |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard as customer’s requirements |
| Thickness | 0.02mm-6.0mm |
| Width | 1.0mm-1500mm |
| Edge | Slit/Mill |
| Quantity Tolerance | ±10% |
| Paper Core Internal Diameter | Ø500mm paper core, special internal diameter core and without paper core on customer request |
| Surface Finish | NO.1/2B/2D/BA/HL/Brushed/6K/8K Mirror,etc |
| Packaging | Wooden Pallet/Wooden Case |
| Payment Terms | 30% TT deposit and 70% balance before shipment, 100% LC at sight |
| Delivery Time | 5-7 working days |
| MOQ | 200Kgs |
| Sample | The sample of 301 stainless steel coil is available |
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
| 17-7 ph Coils | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.00-18.00 | 6.00-8.00 | – |
| Grade | EN Grade | Yield Strength Rp0.2(N/mm²) | Tensile Strength Rm(N/mm²) | Hardness | Vickers Hardness(HV) | Elongation A50% |
| 17-7 ph Coils | 1.4310 | ≥205 | ≥520 | Annealed | ≥160 | ≥40 |
Contact us to get a quick quote for your requirement.

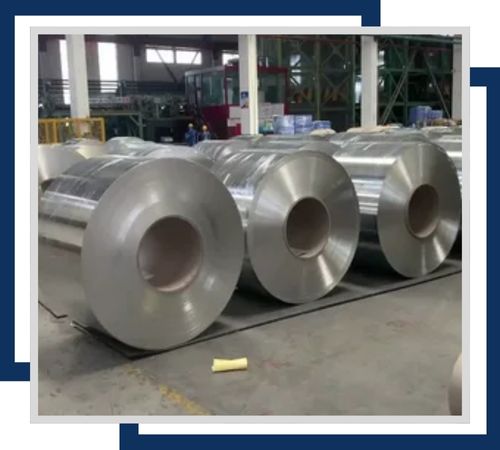

For enhanced corrosion resistance, these Stainless Steel 17-7 PH Plated Coils are coated. They posses high strength and have excellent mechanical properties, which enable their application for demanding aerospace, automotive, and industrial purposes.

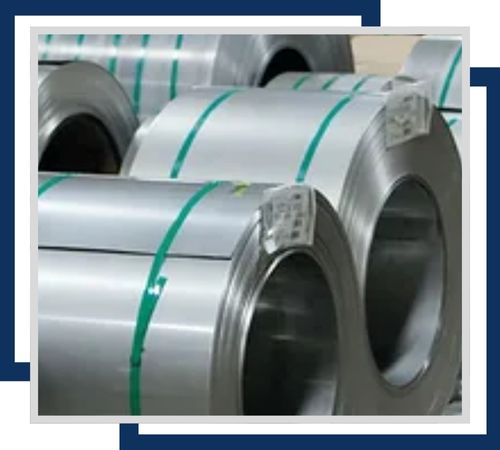

Stainless Steel 17-7 PH Hot Rolled Coils are rolled hot. They are highly strong and have a lot of durability. These are very useful for applications that require toughness, resistance to stress, and corrosion.

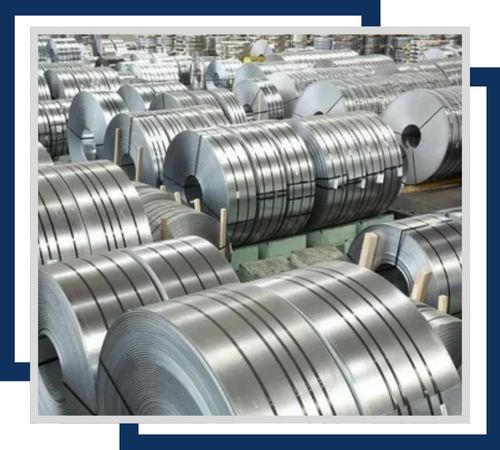

S 17-7 PH Cold Rolled Coils are cold rolled for a smooth, precise finish and enhanced mechanical properties. They provide high strength, excellent dimensional accuracy, and corrosion resistance.
We ensure quality products like Stainless Steel 17-7 PH Coils that consistently perform. We test these through various procedures such as hardness testing, spectro analysis, PMI, and flaring tests. In addition, we conduct micro and macro tests, pitting resistance, and IGC tests to ensure superior quality in every material delivered. We have full documentation along with our rigid testing procedures, including commercial invoices, packing lists indicating net and gross weights, box numbers, and labels. We also provide a legalized or attested Certificate of Origin, Third-Party Inspection Certificates, for total assurance that we will be committed to providing the best products and unmatched customer satisfaction.
Emilio Stainless’s AWS Class E330-16 electrodes are extensively utilized in industries that require exceptional heat and oxidation resistance. These electrodes are perfect for welding both cast and wrought forms of the 330 stainless steel alloy, which is commonly found in heat-treating equipment, furnace components, chemical processing, and petrochemical facilities. Their impressive performance at temperatures soaring up to 1150°C makes them ideal for fabricating and repairing parts that face thermal cycling and oxidizing conditions. Whether for new projects or maintenance welding, Emilio Stainless provides E330-16 electrodes that ensure consistent quality and durability, supporting the needs of various industries.
