Home > Stainless Steel 316/316L Channels
Emilio Stainless, located in Manila, Philippines, is a reliable manufacturer and supplier of top-notch Stainless Steel 316/316L Channels. These channels are specifically designed to meet the rigorous demands of industrial and marine applications, offering outstanding resistance to corrosion, oxidation, and mechanical stress. The 316 grade is particularly known for its exceptional ability to resist pitting and crevice corrosion in chloride-rich environments, while the 316L grade, with its lower carbon content, enhances weldability and reduces carbide precipitation. With advanced manufacturing techniques and stringent quality control, Emilio Stainless ensures that their channels have precise dimensions and consistent quality, making them a durable and dependable choice for construction, chemical, marine, and industrial uses.
Stainless Steel 316/316L Channels are made up of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with carbon content capped at 0.08% for 316L and 0.10% for 316, along with small amounts of manganese, silicon, and phosphorus. These austenitic stainless steels boast a tensile strength ranging from 515 to 690 MPa and a yield strength of about 205 to 310 MPa, along with impressive ductility and toughness. The presence of molybdenum significantly boosts resistance to pitting and crevice corrosion, while the low-carbon 316L grade enhances weldability and dimensional stability, making them perfect for structural and industrial applications.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

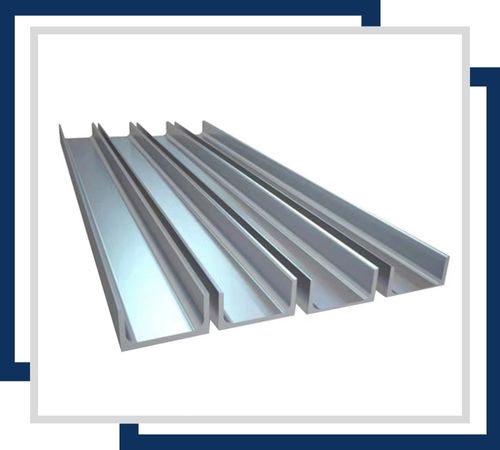

Stainless Steel 316/316L channels are structural elements made from corrosion-resistant stainless steel. They provide high strength and durability, ideal for marine, chemical, and high-temperature applications.

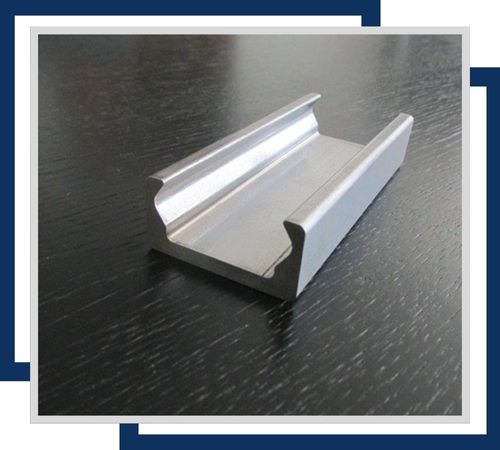

SS 316/316L C channels are stainless steel sections shaped like a “C,” offering high strength and superior corrosion resistance. They are used for support and framing in demanding environments.

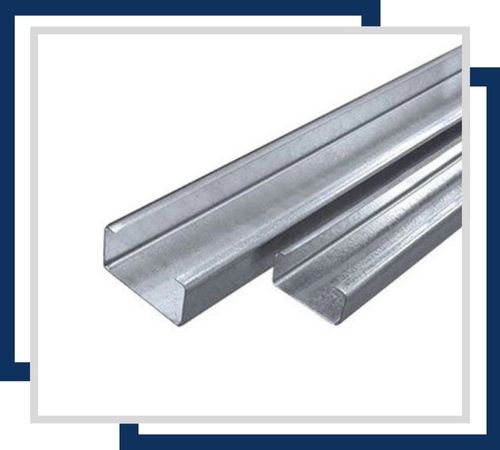

Stainless Steel 316/316L U channels are structural components with a “U” shape, known for excellent strength and corrosion resistance. They are used in marine, chemical, and high-temperature environments for support and reinforcement.

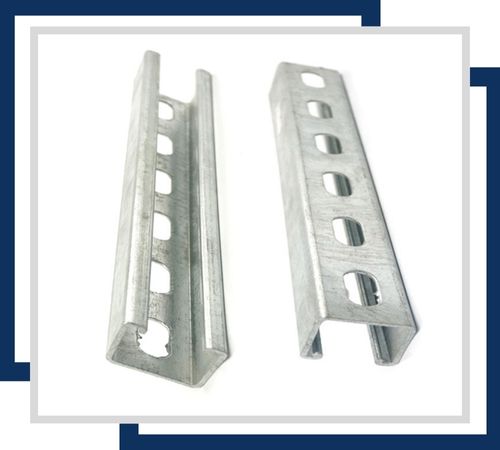

SS 316/316L strut C channels are stainless steel sections with a “C” shape, designed for robust support and framing. They offer high strength, durability, and excellent corrosion resistance for industrial applications.

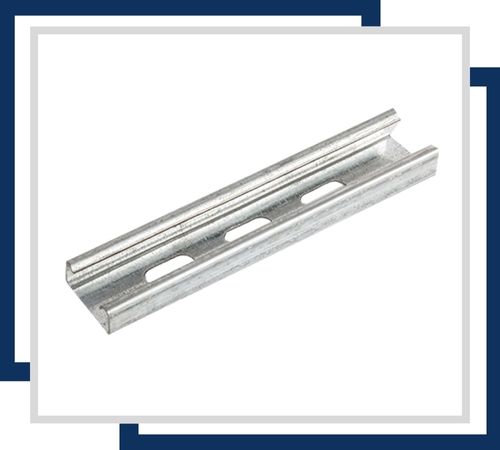

SS 316/316L cold-rolled Unistrut channels are stainless steel channels produced through cold rolling. They offer high strength, excellent corrosion resistance, and are used for versatile support and framing in demanding environments.

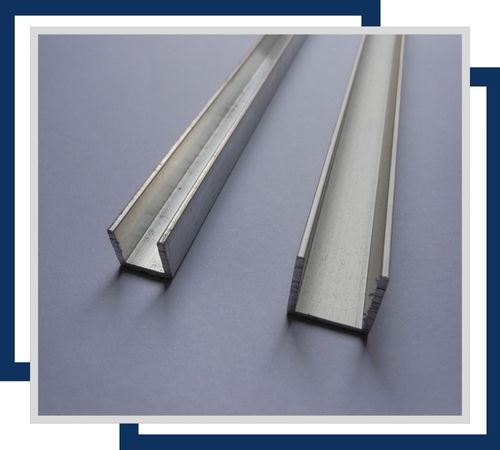

SS 316/316L double C type channels are stainless steel sections with two “C” shapes back-to-back. They provide enhanced strength and stability, suitable for heavy-duty support and structural applications in harsh environments.
Each Stainless Steel 316/316L Channel is carefully packed with the use of best materials for its prevention from undergoing damages upon corrosion whether in processing or during shipping to its destination. Packing the materials as such, we always see to it that our orders reach our customers in the best possible and timely way due to available transport systems and modes. Requisite accompanying documentation all highest will be handed over to customers as soon as delivery is accomplished to make the deal seem smooth and transparent.
Stainless Steel 316/316L Channels find extensive use in chemical processing plants, marine settings, power generation, and various structural applications. They are particularly well-suited for building frames, supports, machinery components, and architectural structures in environments prone to corrosion from seawater or chemicals. The 316 grade excels in harsh conditions, while 316L channels facilitate easier welding without sacrificing corrosion resistance. Emilio Stainless offers these channels in a range of sizes, thicknesses, and finishes to meet diverse project needs.
