Home > Stud Bolts > Stainless Steel 304H Stud Bolts

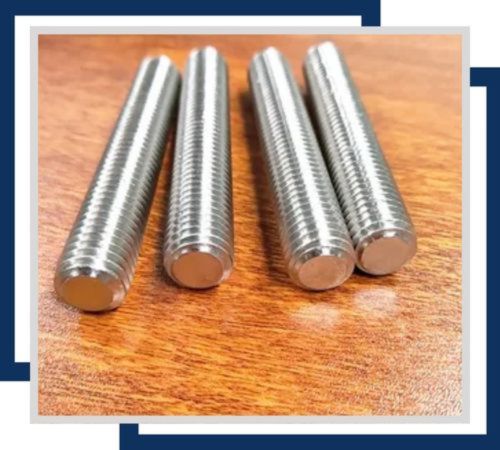

Emilio Stainless, located in Manila, Philippines, is a reliable manufacturer and supplier of top-notch Stainless Steel 304H Stud Bolts. These bolts are specifically designed for high-temperature and demanding industrial settings, offering outstanding corrosion resistance, mechanical strength, and long-lasting durability. The 304H grade, which has a higher carbon content than the standard 304, delivers enhanced tensile strength and heat resistance, making them perfect for high-pressure and high-temperature piping systems. At Emilio Stainless, each stud bolt undergoes precision manufacturing and rigorous quality control, ensuring secure, leak-proof, and dependable fastening solutions for various applications, including chemical, petrochemical, power generation, and industrial sectors.
Stainless Steel 304H Stud Bolts are made up of 18–20% chromium, 8–10.5% nickel, and a carbon content ranging from 0.04–0.10%, along with small amounts of manganese, silicon, and phosphorus. These austenitic stainless steel bolts boast a tensile strength of 520–620 MPa and a yield strength of about 210–310 MPa, along with excellent ductility and toughness. The increased carbon content improves high-temperature strength while maintaining resistance to corrosion and oxidation. 304H stud bolts ensure dimensional stability and mechanical integrity under stress, making them well-suited for high-temperature and high-pressure industrial and engineering applications.
| Grade | Stainless Steel 304, 304H, 304L |
| Specifications | ASTM A193 / ASME SA193 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3mm to 200mm |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Types | Threaded Rod, Class A double ended stud, Tie Rod, Double Ended Stud, Stud Bolts, Bronze Hex Studs, Threaded Studs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.

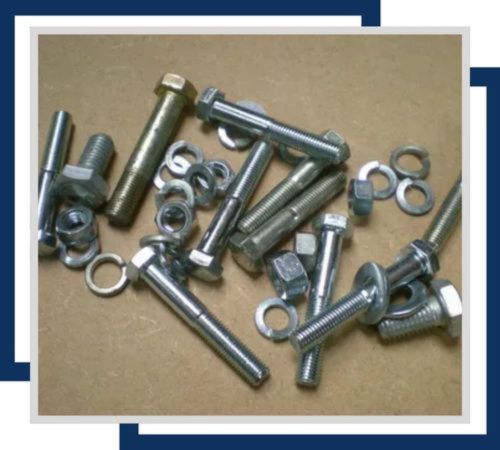

Stainless Steel DIN 1.4301 Stud Bolts offer superior strength and corrosion resistance, adhering to DIN standards. Ideal for general-purpose applications, they ensure reliable performance in various industrial settings.

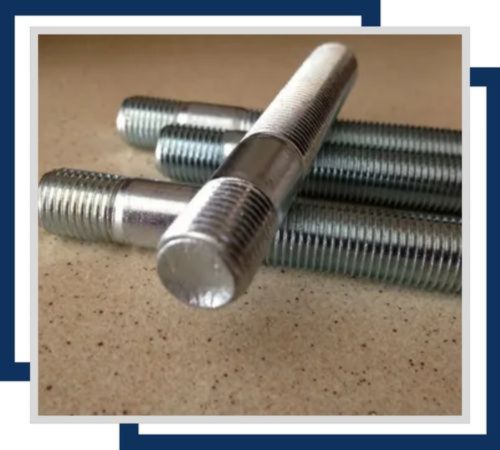

Stainless Steel UNS S30409 Stud Bolts deliver high strength and excellent resistance to corrosion and high temperatures. Suitable for demanding industrial applications, they ensure durability and reliability in challenging environments.

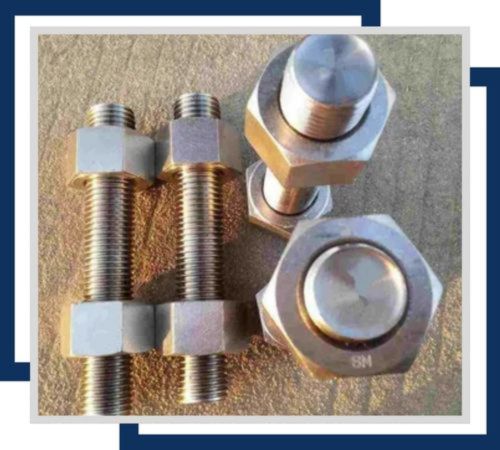

Stainless Steel 304H Flush Head Stud Bolts combine high strength with a sleek, flush design, ideal for applications requiring minimal protrusion. They offer excellent corrosion resistance and durability in harsh environments.
We ensure detailed documents of our Stainless Steel 304H Stud Bolts, ensuring the product is thoroughly transactable and reliable in communication. Our documents include a commercial invoice, packaging list, fumigation certificate, heat treatment chart, and a quality assurance plan. The shipment contains the NABL-approved lab test report, ensuring that the product meets very high standards. The quality commitment is further depicted by several test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and a Third-Party Inspection Certificate. All these measures ensure 100% client satisfaction and confidence in the integrity of our products.
Stainless Steel 304H Stud Bolts find extensive use in chemical processing plants, petrochemical industries, power generation, and industrial piping systems that face high temperatures and corrosive conditions. They are perfect for securing flanges, valves, boilers, heat exchangers, and furnace lines, where strength, durability, and corrosion resistance are essential. These stud bolts create secure, leak-proof connections for high-pressure and high-temperature systems. Emilio Stainless offers 304H stud bolts in a variety of sizes, threads, and finishes, providing versatile solutions for your industrial needs.
