Home > Stud Bolts > Stainless Steel 304L Stud Bolts
Emilio Stainless, located in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality Stainless Steel 304L Stud Bolts. Known for their precision engineering and strict quality control, these bolts meet international standards and provide exceptional corrosion resistance, durability, and strength. Made from low-carbon austenitic stainless steel, SS 304L Stud Bolts are perfect for chemical, marine, and industrial applications where welding and resistance to corrosion are crucial. With cutting-edge manufacturing technology and thorough quality testing, Emilio Stainless guarantees that each stud bolt offers consistent performance, precise dimensions, and long-lasting reliability for clients both at home and abroad.
Stainless Steel 304L Stud Bolts are mainly made up of iron, containing 18–20% chromium, 8–12% nickel, ≤0.03% carbon, along with small amounts of manganese, silicon, and phosphorus. This low-carbon austenitic stainless steel is known for its excellent corrosion resistance, particularly against intergranular attack after welding. It boasts a tensile strength of 500–700 MPa and a yield strength of around 200–250 MPa, along with remarkable ductility and toughness. These stud bolts maintain their mechanical integrity and dimensional stability in various environmental and mechanical conditions, making them perfect for welded assemblies and corrosive settings.
| Specification | ASTM A 193/ASME SA 193 |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

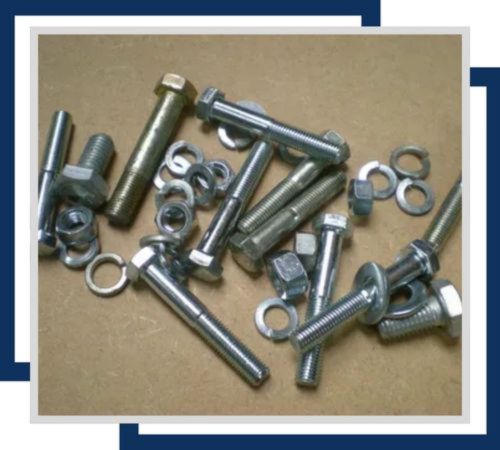

Stainless Steel DIN 1.4301 stud bolts offer exceptional strength and corrosion resistance. Designed for high-performance applications, they ensure durable and secure connections with precise threading and high-quality stainless steel.

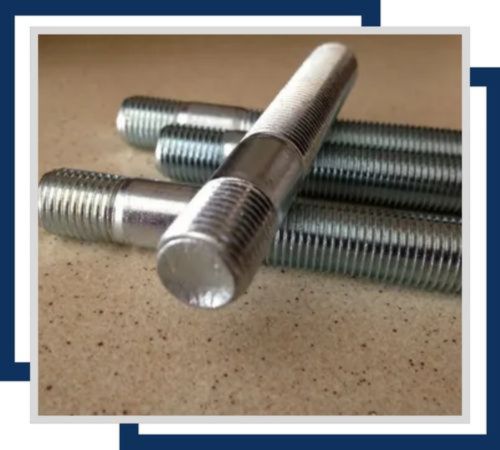

Stainless Steel UNS S30403 stud bolts provide outstanding durability and resistance to corrosion. Perfect for demanding applications, they offer secure, reliable connections with high-strength performance and precision threading.

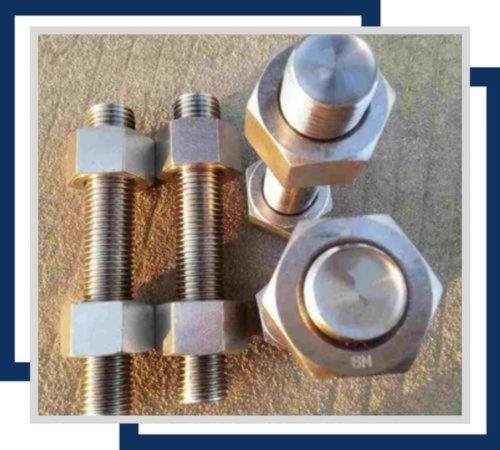

Stainless Steel 304L flush head stud bolts combine durability and sleek design, offering excellent corrosion resistance and strength. Their flush head allows for a clean, streamlined installation in tight spaces.
We assure the transparency of our Stainless Steel 304L Stud Bolts with the high quality assurance. All the orders are supplied along with relevant documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, and NABL-approved lab test report. We offer Material Test Certificates according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates. Detailed documentation is maintained in order to meet the satisfaction level of clients to the highest level.
Stainless Steel 304L Stud Bolts find extensive use in industries that demand high corrosion resistance, durability, and weldability. They are particularly suited for chemical processing plants, marine settings, food processing facilities, oil refineries, and power generation systems. These bolts are essential for securing equipment, pipelines, machinery, and structural components in environments with high moisture or corrosive elements. Their outstanding weldability and strength make them ideal for both industrial and structural applications. Emilio Stainless proudly supplies SS 304L stud bolts to meet the diverse needs of various sectors.
