Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, specializing in high-quality Stainless Steel 314 Bars. These bars are crafted for outstanding performance in high-temperature and oxidizing environments, boasting remarkable durability, strength, and resistance to scaling. Emilio Stainless guarantees that each Stainless Steel 314 Bar adheres to rigorous international standards, delivering dependable and long-lasting solutions for various industrial applications. With impressive mechanical properties and excellent corrosion resistance, these bars find extensive use in sectors like chemical processing, furnace components, and power generation.
Stainless Steel 314 Bars primarily consist of iron, along with 24–26% chromium and 19–22% nickel, plus small amounts of silicon and manganese to enhance oxidation resistance at elevated temperatures. This alloy provides a tensile strength of approximately 620 MPa, a yield strength of around 310 MPa, and favorable elongation properties. These bars retain high mechanical strength and surface stability, even when exposed to continuous heat. Their ability to resist scaling and oxidation makes them suitable for operations reaching up to 1150°C, ensuring a long service life in challenging thermal conditions.
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| Element | Content (%) |
|---|---|
| Iron, fe | Balance |
| Chromium, Cr | 19-26 |
| Nickel, Ni | 19-22 |
| Manganese, Mn | 2 |
| Silicon, Si | 1.5-3 |
| Carbon, C | 0.25 |
| Sulfur, S | 0.03 |
| Phosphorous, P | 0.045 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 689 MPa | 99900 psi |
| Yield strength | 345 MPa | 50000 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Elongation at break (in 50 mm) | 40% | 40% |
| Hardness, Rockwell B | 85 | 85 |
Contact us to get a quick quote for your requirement.
We ensures that it provides the most excellent quality on Stainless Steel 314 Bars in terms of being tested and certification. Each and every bar passed through the high-quality mechanical, chemical analysis; tensile strength, hardness strength, corrosion testing, and with reports like a Mill Test Certificate, which verifies the industry specification and customer satisfaction.

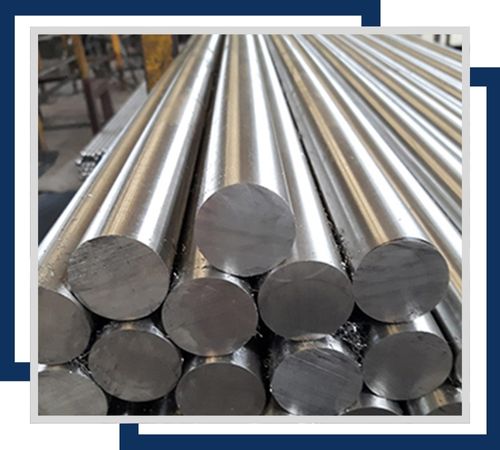

Corrosion-resistant and designed for high-temperature applications, Stainless Steel 314 Round Bars are available in diameters from 0.5″ to 12″. Ideal for use in industrial equipment and heat exchangers.

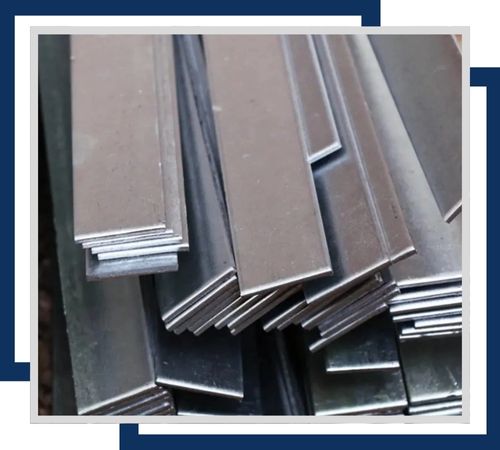

Stainless Steel 314 Flat Bars offer excellent resistance to high temperatures, available in thicknesses from 0.25″ to 6″ and widths up to 12″. Perfect for structural components and industrial uses.

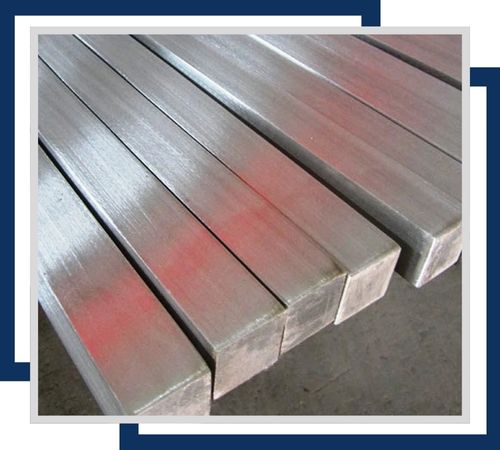

Featuring superior heat resistance, Stainless Steel 314 Square Bars come in sizes from 0.5″ to 6″ on each side. They are suitable for applications requiring high strength and thermal stability.

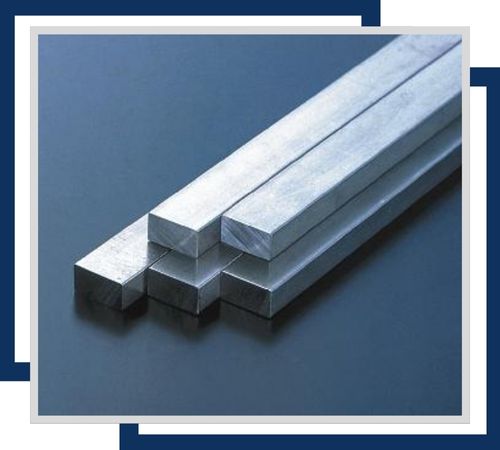

Stainless Steel 314 Rectangular Bars provide excellent high-temperature resistance, available in sizes from 0.5″ x 1″ to 6″ x 12″. Ideal for heavy-duty applications and components exposed to extreme conditions.

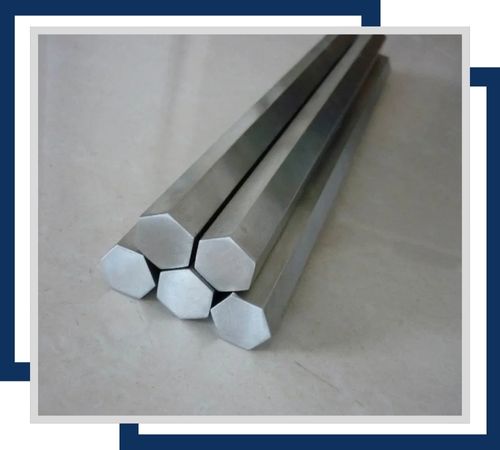

Offering exceptional heat resistance, Stainless Steel 314 Hexagonal Bars are available in sizes from 0.5″ to 4″ across flats. Suitable for aerospace and chemical processing applications requiring durable performance.

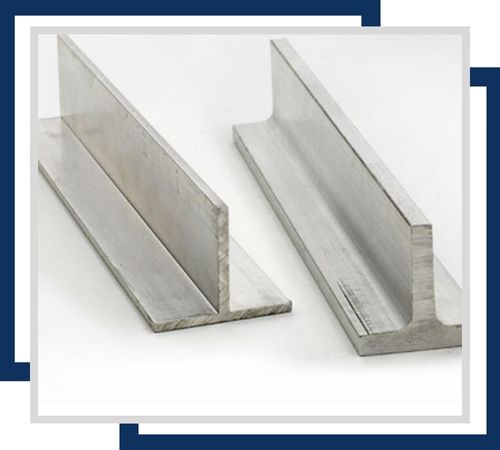

Corrosion-resistant Stainless Steel 314 T-Bars come in dimensions from 0.5″ x 0.5″ to 6″ x 6″. They are ideal for structural applications and machinery needing high-temperature strength and durability.
Stainless Steel 314 Bars are frequently utilized in applications that require extended exposure to high heat and oxidizing environments. They are perfect for creating furnace parts, kiln liners, burners, heat treatment baskets, and radiant tubes. In the chemical and petrochemical sectors, they are essential for processing equipment and components that deal with corrosive substances. Furthermore, Stainless Steel 314 Bars are used in power plants, refineries, and metallurgical operations where strength, stability, and resistance to thermal fatigue are crucial for safe and efficient performance.
