Emilio Stainless, a reputable manufacturer and supplier located in Manila, Philippines, proudly offers top-notch Stainless Steel 317 Bars. These bars are celebrated for their remarkable strength, resistance to corrosion, and long-lasting durability. They’re specifically crafted to excel in tough environments, particularly where they face chemicals, acids, and salty conditions. Emilio Stainless guarantees that each Stainless Steel 317 Bar adheres to international quality standards, ensuring outstanding mechanical performance. Perfect for the chemical processing, marine, and construction sectors, these bars promise reliability, a long service life, and excellent workability.
Stainless Steel 317 Bars primarily consist of iron, along with 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, which significantly boosts their resistance to pitting, crevice corrosion, and harsh chemicals. They showcase impressive tensile and yield strength, good elongation, and exceptional toughness even at high temperatures. The inclusion of molybdenum enhances their corrosion resistance in chloride-rich environments, while the well-balanced composition ensures stability under pressure and stress. Additionally, these bars are known for their excellent weldability and machinability, making them ideal for a variety of fabrication and engineering projects.
| Specifications | ASTM A 276 / SA 276 |
|---|---|
| Dimensions | ASTM, ASME |
| Range | 3.17 MM TO 350 MM DIA |
| Diameter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317 | 0.08 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 14.0 | 3.0 – 4.0 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317 | 620 MPa | 275 MPa | 45% | 85 | 193 | – |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317 panels are rigorously tested for quality, durability and performance. Products are subjected to various tests, including mechanical, chemical and corrosion resistance studies. Certified to industry standards, each batch is accompanied by appropriate certifications to ensure compliance and customer satisfaction.

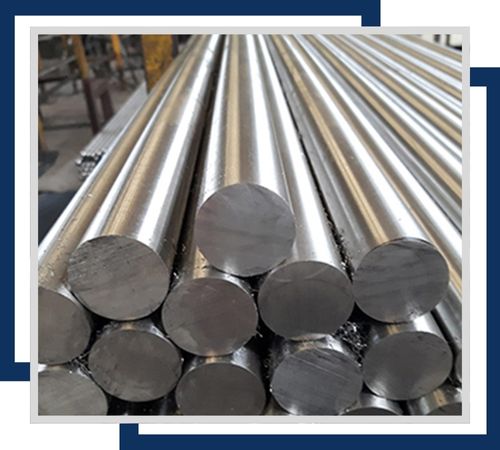

Corrosion-resistant Stainless Steel 317 Round Bars come in various diameters, typically from 6mm to 300mm. They are ideal for applications requiring high resistance to chloride corrosion, such as marine and chemical environments.

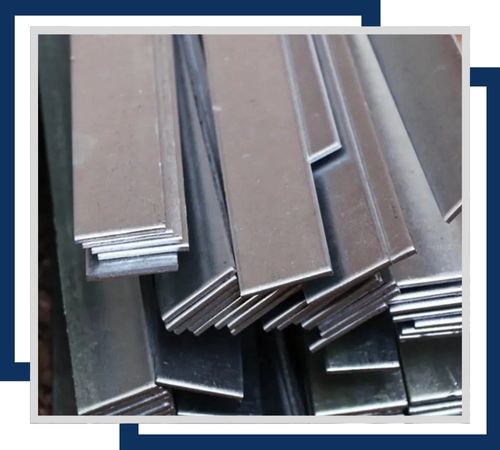

Stainless Steel 317 Flat Bars are available in widths ranging from 10mm to 300mm and thicknesses from 3mm to 50mm. These bars excel in resisting corrosion and are used in structural applications exposed to harsh chemicals.

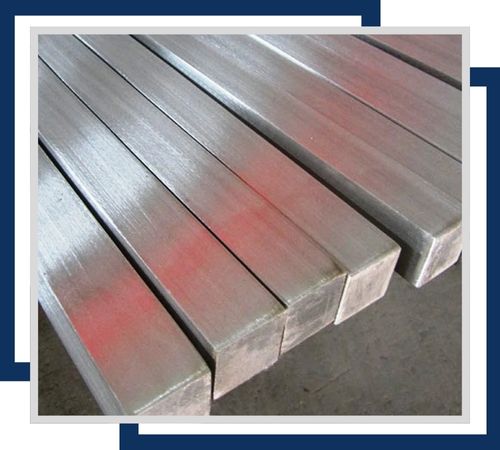

Stainless Steel 317 Square Bars, offered in sizes from 10mm to 100mm, provide excellent resistance to corrosion in aggressive environments. They are used in various structural and manufacturing applications requiring robust material properties.

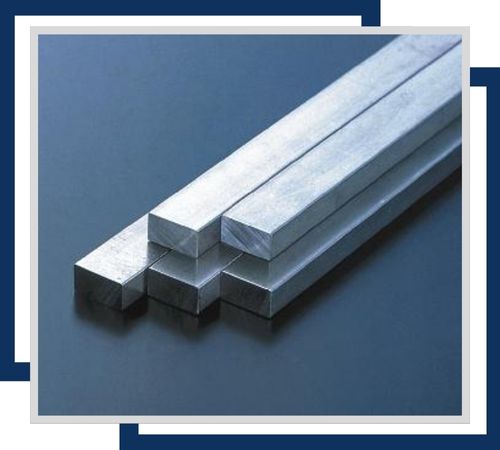

Stainless Steel 317 Rectangular Bars come in dimensions like 20mm x 10mm to 150mm x 50mm. They are preferred for applications needing high strength and resistance to corrosive substances, such as heat exchangers.

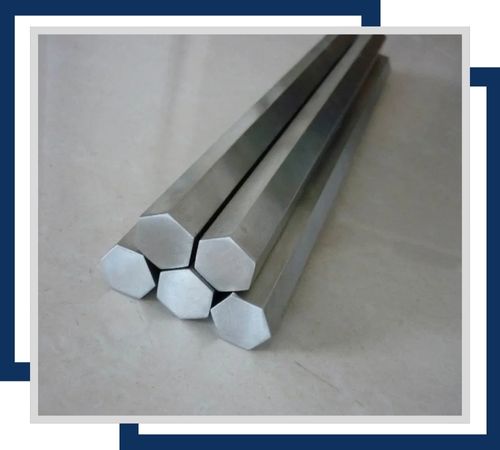

Corrosion-resistant Stainless Steel 317 Hexagonal Bars, available in sizes from 10mm to 100mm across flats, offer excellent performance in corrosive environments. They are used in industries where both strength and corrosion resistance are critical.

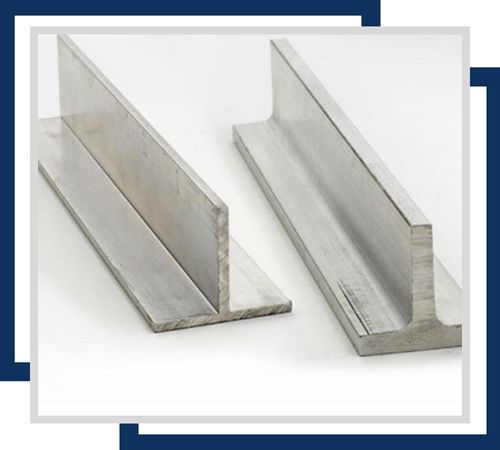

Stainless Steel 317 T-Bars are typically available in sizes like 10mm x 10mm to 100mm x 100mm. These bars provide high resistance to corrosion and are used in structural supports and frameworks exposed to aggressive conditions.
Stainless Steel 317 Bars find extensive use in the chemical processing, power generation, marine, and food industries, thanks to their outstanding resistance to corrosion and oxidation. They are perfect for crafting shafts, fasteners, pressure vessels, and structural components that are exposed to challenging environments. Moreover, they are utilized in the manufacturing of pulp and paper, heat exchangers, and desalination equipment. With their blend of strength, durability, and corrosion resistance, Stainless Steel 317 Bars are a trusted choice for demanding industrial and commercial applications.
