Emilio Stainless, located in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality Stainless Steel 316 Pipes. These pipes are specifically crafted for tough industrial, chemical, and marine environments, offering outstanding resistance to corrosion, oxidation, and mechanical stress. The 316 grade, which includes molybdenum, is particularly effective against pitting and crevice corrosion, especially in chloride-heavy settings. With a commitment to precision manufacturing and rigorous quality control, Emilio Stainless delivers pipes that boast accurate dimensions, smooth finishes, and reliable performance. These pipes are built to last, making them perfect for high-pressure, high-temperature, and corrosive applications in both industrial and marine settings.
Stainless Steel 316 Pipes are made up of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with a carbon content of up to 0.10%, along with small amounts of manganese, silicon, and phosphorus. These austenitic stainless steels have a tensile strength ranging from 515–690 MPa and a yield strength of 205–310 MPa, showcasing excellent ductility and toughness. The addition of molybdenum boosts resistance to pitting and crevice corrosion while ensuring heat resistance, corrosion resistance, and dimensional stability. These pipes are not only mechanically strong and durable but also well-suited for high-pressure, high-temperature, and chemical piping systems in marine environments.
| Specifications | ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358 |
| Dimensions | ASTM, ASME and API |
| SS 316 – 316L Pipes | 1/2″ NB – 16″ NB |
| ERW 316 – 316L Pipes | 1/2″ NB – 24″ NB |
| EFW 316 – 316L Pipes | 6″ NB – 100″ NB |
| Size | 1/8″NB TO 30″NB IN |
| Specialized in | Large Diameter Size |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
| Element | SS 316 |
| Ni | 10.0 – 14.0 |
| C | 0.08 |
| Mn | 2.0 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 0.75 max |
| Cr | 16.0 – 18.0 |
| Mo | 2.00 – 3.00 |
| N | 0.10 |
| Element | SS 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 316 pipe through rigorous testing and certification. Each pipe is subjected to thorough testing, including chemical analysis, mechanical testing and design analysis. Certified to ASTM, ASME, and other industry standards, our products guarantee durability, corrosion resistance and exceptional performance in a variety of applications.

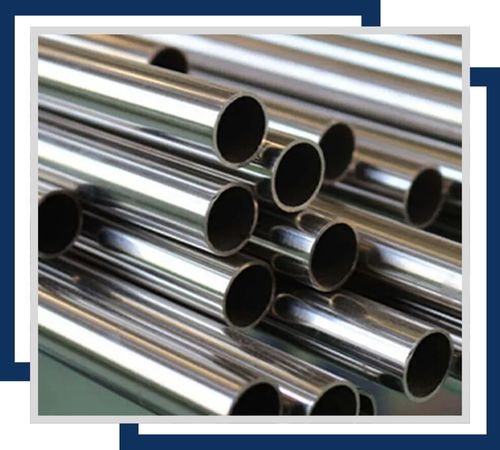

Stainless Steel 316 ERW (Electric Resistance Welded) pipes are made by welding stainless steel strips, providing excellent corrosion resistance and strength for marine, chemical, and industrial applications.

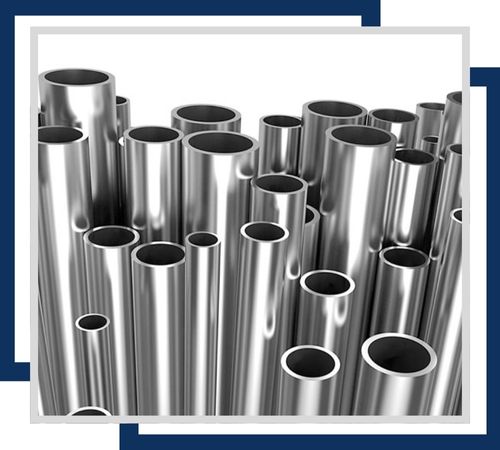

Stainless Steel 316 EFW (Electric Fusion Welded) pipes are produced through fusion welding of stainless steel plates, offering high corrosion resistance and durability for chemical and marine environments.

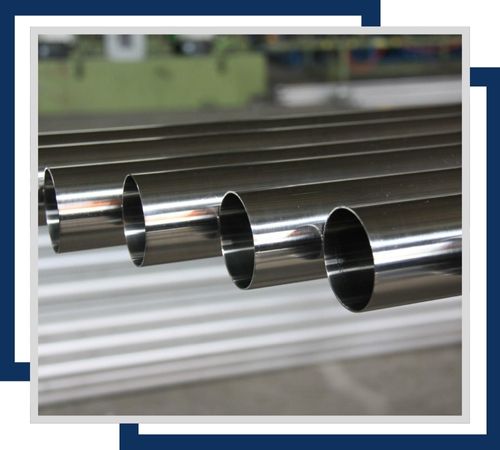

Stainless Steel 316 LSAW (Longitudinally Submerged Arc Welded) pipes are created using submerged arc welding, providing high strength and excellent resistance to corrosion, ideal for large-diameter, harsh environments.

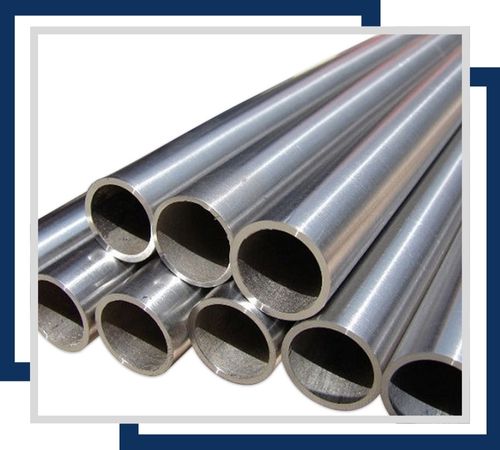

Stainless Steel 316 Seamless pipes are made without welding, ensuring uniform strength and exceptional corrosion resistance, ideal for critical applications in chemical processing, marine environments, and high-stress conditions.

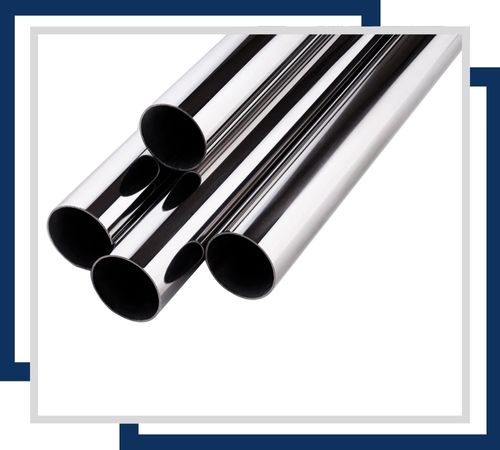

Stainless Steel 316 Welded pipes are produced by welding stainless steel sections, offering high strength and excellent corrosion resistance, suitable for marine, chemical, and industrial applications.

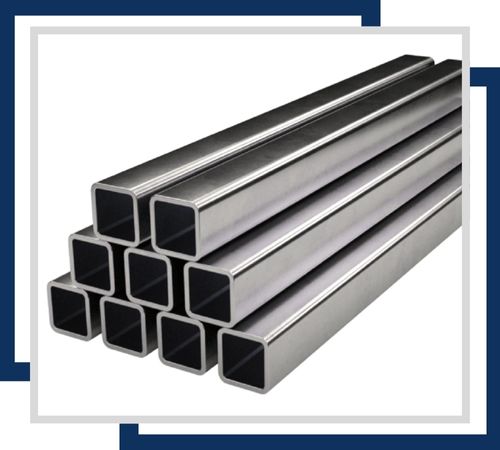

Stainless Steel 316 Square pipes feature a square cross-section, providing structural support and high corrosion resistance for architectural and industrial applications requiring durability and aesthetic appeal.
Stainless Steel 316 Pipes find extensive use in various sectors, including chemical processing, petrochemical industries, marine applications, power generation, food and beverage, and pharmaceuticals. They are perfect for transporting chemicals, seawater, steam, and other corrosive fluids in pipelines, boilers, and heat exchangers. These pipes guarantee leak-proof, durable, and dependable performance for industrial, structural, and high-performance piping systems. Emilio Stainless offers 316 pipes in a range of diameters, thicknesses, and finishes, providing versatile, high-quality, and cost-effective solutions tailored to meet diverse application needs.
