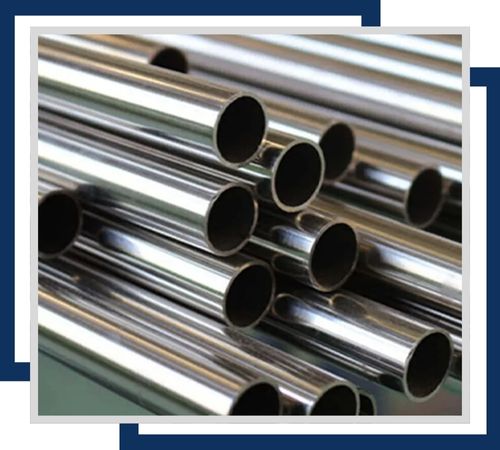

Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, with a focus on high-quality stainless steel 409 pipes. These pipes are celebrated for their durability, resistance to corrosion, and affordability. Crafted with precision and under strict quality control, they adhere to international standards and excel in applications that demand resistance to oxidation and moderate corrosion. Emilio Stainless takes pride in ensuring that each stainless steel 409 pipe boasts excellent weldability and formability, making them perfect for various industries, including automotive, exhaust systems, construction, and industrial processing, both in the Philippines and beyond.
Stainless steel 409 pipes are composed of a ferritic stainless steel alloy that contains around 10.5–11.7% chromium, up to 1% nickel, manganese, and a low carbon content typically below 0.08%. The addition of titanium stabilizes the alloy, preventing intergranular corrosion during the welding process. This unique composition offers good oxidation resistance up to approximately 675°C, moderate corrosion resistance, and outstanding thermal conductivity. The pipes generally exhibit tensile strength ranging from 380–450 MPa, making them suitable for structural and high-temperature applications.
| Item | Stainless Steel 409 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 409 | Min | – | – | – | – | – | 10.5 | – | – | – |
| max | 0.03 | 1.00 | 1.00 | 0.04 | 0.02 | 11.7 | – | 0.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 409 | 380 | 170 | 20 | 88 | 0.5t |
Contact us to get a quick quote for your requirement.
We tests all kinds of stainless steel 409 piping with high emphasis on quality and performance. In addition, international standards such as ASTM and ASME are in place for any product. Even each batch in terms of machinery quality, dimensional accuracy, or corrosion resistance guarantees that the resultant pipes are going to be available with reliable output.
Stainless Steel 409 is a ferritic alloy known for its high resistance to oxidation and corrosion. Commonly used in automotive exhaust systems and industrial applications, it offers good strength and durability.

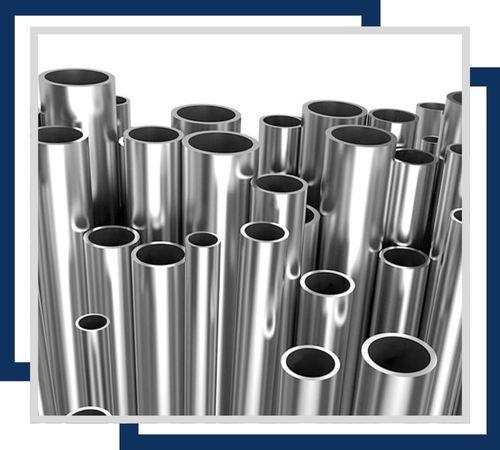

Stainless Steel 409 seamless pipe features high resistance to oxidation and corrosion, making it ideal for exhaust systems and industrial applications. Its seamless construction provides superior strength and reliability.

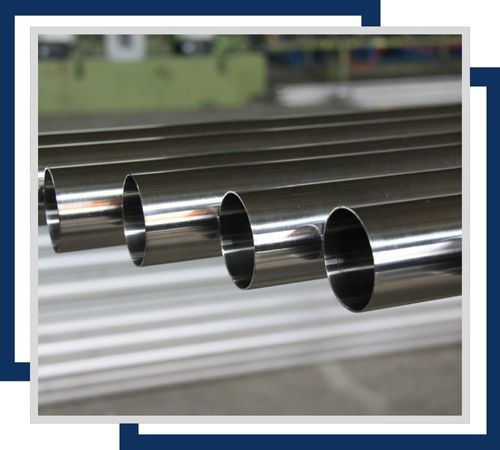

Stainless Steel 409 welded pipe combines high oxidation and corrosion resistance with durability. It’s commonly used in automotive exhaust systems and industrial applications, offering strength through its welded construction.

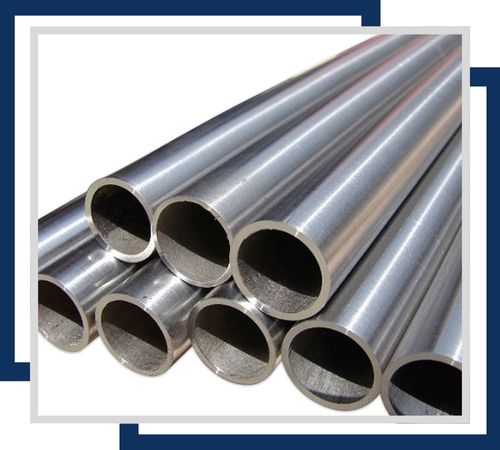

Stainless Steel 409 ERW (Electric Resistance Welded) pipe offers excellent resistance to corrosion and oxidation. It’s used in automotive and industrial applications, featuring strong welds and good mechanical properties.
Stainless Steel 409 EFW (Electric Fusion Welded) pipe provides excellent corrosion and oxidation resistance. Ideal for automotive and industrial uses, it features strong, uniform welds and high durability.
Stainless Steel 409 fabricated pipe is engineered for strength and durability, offering excellent resistance to oxidation and corrosion. It’s commonly used in customized applications, including exhaust systems and industrial components.
These stainless steel 409 pipes find extensive use in automotive exhaust systems, mufflers, heat exchangers, industrial ducts, and other components that are exposed to high temperatures and mildly corrosive environments. Their ability to withstand thermal cycling and oxidation makes them a budget-friendly alternative to pricier stainless steels for applications that require moderate corrosion resistance and heat tolerance. Emilio Stainless is committed to ensuring that every stainless steel 409 pipe delivers consistent quality, durability, and dependable performance for even the most demanding industrial and mechanical applications.
Stainless Steel 409 pipes are widely utilized in automotive and industrial applications because of its good resistance to heat and corrosion. They have high temperature durability and so, can easily be found in the exhaust system, catalytic converters, and mufflers. It also finds major applications in heat exchangers, boilers, and the chemical processing industry. These Stainless Steel 409 pipes can provide applications in power plants, marine environments, and pollution control systems because they have survived harsh conditions for many years and provide reliable performance with a long life.
