Emilio Stainless, located in Manila, Philippines, is a reliable manufacturer and supplier of top-notch Stainless Steel 316 Flanges. Designed for tough industrial, chemical, and marine environments, these flanges boast impressive corrosion resistance, oxidation resistance, and mechanical strength. The 316 grade, which is enhanced with molybdenum, provides exceptional protection against pitting and crevice corrosion, especially in chloride-heavy settings. At Emilio Stainless, advanced manufacturing methods and rigorous quality control ensure that each flange is crafted with precise dimensions, smooth finishes, and consistent quality. These flanges guarantee secure, long-lasting, and leak-proof connections in piping systems, boilers, heat exchangers, and various industrial applications.
Stainless Steel 316 Flanges consist of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with a carbon content of up to 0.10%, along with trace amounts of manganese, silicon, and phosphorus. This austenitic stainless steel showcases a tensile strength ranging from 515–690 MPa and a yield strength of about 205–310 MPa, along with excellent ductility and toughness. The addition of molybdenum boosts resistance to pitting and crevice corrosion while ensuring high-temperature strength, corrosion resistance, and dimensional stability. These flanges are mechanically strong, heat-resistant, and perfect for high-pressure, high-temperature, chemical, and marine piping applications.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| SS | 316 |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 316 Flanges Emilio Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Emilio Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.
Stainless 316 Steel Threaded Flanges are designed for systems that require quick assembly and disassembly. They come in sizes ranging from 1/2″ to 24″. The 316 stainless steel construction provides excellent corrosion resistance, ideal for plumbing and water treatment applications.

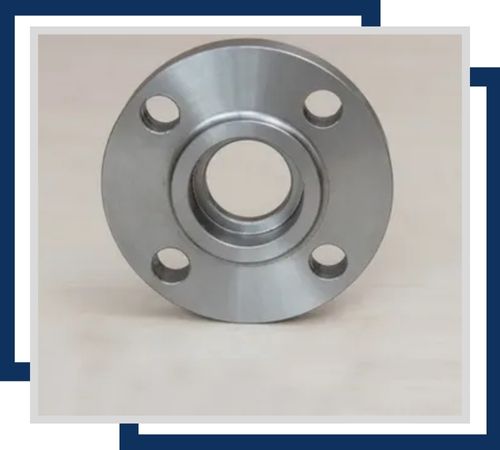

SS 316 Socket Weld Flanges are stainless steel fittings that allow pipes to be inserted into a recessed area before welding. They provide strong, leak-proof connections for small-diameter, high-pressure applications.

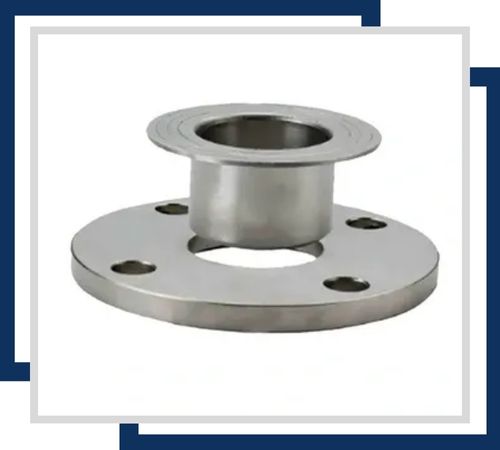

Stainless 316 Steel Lap Joint Flanges are used with stub end fittings and are suitable for systems requiring frequent dismantling. These flanges range in sizes from 1/2″ to 24″. The 316 stainless steel provides exceptional corrosion resistance, making them ideal for use in corrosive environments

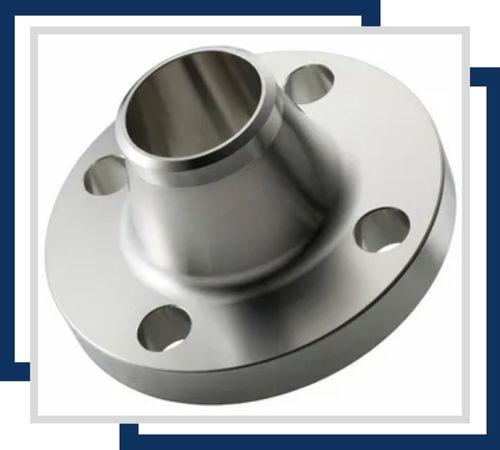

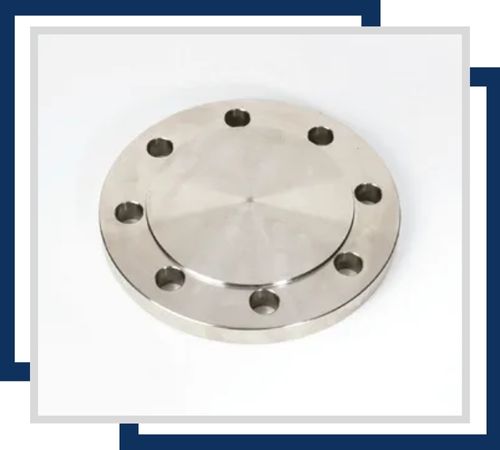

Stainless Steel 316 Flanges find extensive use in chemical processing, petrochemical industries, marine applications, power generation, and the food and pharmaceutical sectors. They are perfect for connecting pipelines, valves, pumps, boilers, and heat exchangers that are exposed to corrosive and chloride-rich environments. These flanges deliver robust, durable, and leak-proof connections for high-performance piping and structural systems. Emilio Stainless offers a variety of 316 flanges, including weld neck, slip-on, blind, socket weld, and threaded flanges, providing versatility for different applications.
