Emilio Stainless, a reputable manufacturer and supplier located in Manila, Philippines, specializes in high-quality Stainless Steel 316Ti Flanges. These flanges are celebrated for their outstanding corrosion resistance, impressive high-temperature strength, and remarkable durability. Thanks to the addition of titanium, Stainless Steel 316Ti Flanges effectively prevent carbide precipitation during welding, which guarantees long-lasting reliability and structural integrity. Emilio Stainless ensures that their flanges adhere to international quality standards, making them perfect for chemical, marine, power generation, and industrial piping systems where secure and leak-proof connections are essential.
Stainless Steel 316Ti Flanges are mainly made up of iron, along with 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a touch of titanium for stabilization. This unique blend offers excellent resistance to intergranular corrosion, pitting, and oxidation, especially in environments rich in chlorides and high temperatures. These flanges boast high tensile and yield strength, good elongation, and exceptional toughness, ensuring they remain durable and mechanically stable even in the most demanding industrial applications.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| ELEMENT | MIN | MAX |
|---|---|---|
| C | – | 0.08 |
| Si | – | 0.75 |
| Mn | – | 2 |
| P | – | 0.45 |
| S | – | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | – | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 30TI flanges of superior quality test for best products and performance at an international standards level with due testing and full specification. Being a certified supplier, we certify every batch based on traceable documents. To make the modern products with no corrosion, robust, and quality mechanical properties to give you extra value, we used the modern world’s technology at a stringent and tight quality-control measure. Emilio Stainless commits to deliver the highest level of flanges that could ensure functionality and safety.

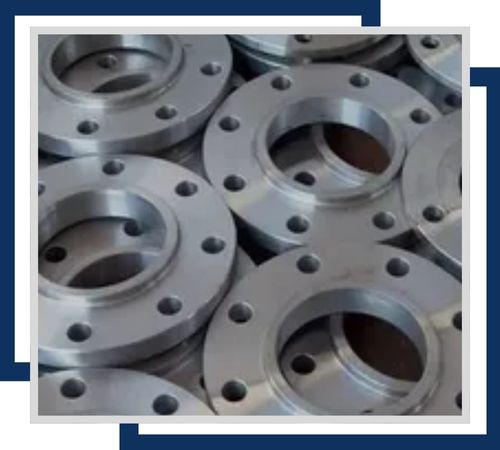

Featuring internal threads for easy attachment to pipes with matching threads, these flanges are typically available from 1/2″ to 6″. Their titanium content enhances corrosion resistance, particularly in aggressive chemical environments

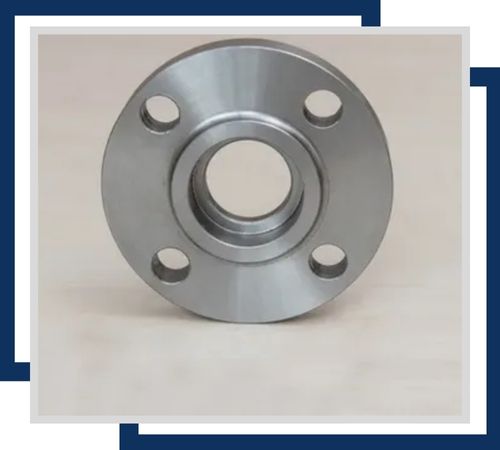

Designed for high-pressure systems, these flanges are inserted into a socket and welded in place. They come in sizes from 1″ to 24″ and offer robust corrosion resistance due to the 316Ti alloy’s resistance to oxidation and chloride stress.

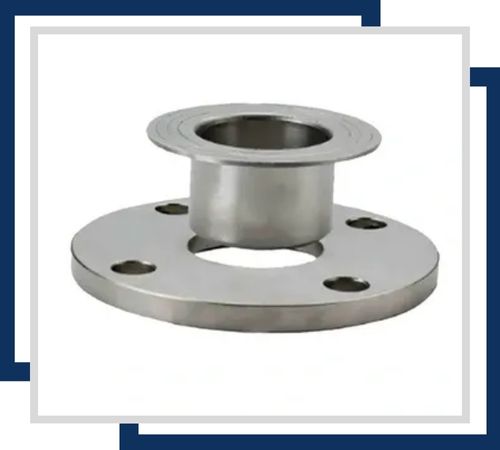

These flanges are used with a loose backing flange and provide a smooth, corrosion-resistant surface for easy alignment and maintenance. They are available in sizes from 1″ to 24″ and are highly resistant to rust and corrosion, suitable for various industries.
Stainless Steel 316Ti Flanges find extensive use in the chemical, petrochemical, oil and gas, and marine industries for connecting pipes, valves, pumps, and pressure vessels. They are particularly suited for high-temperature and high-pressure systems like heat exchangers, boilers, and condensers. Moreover, these flanges are also utilized in the pharmaceutical and food processing sectors, where hygiene and corrosion resistance are paramount. Their blend of strength, durability, and corrosion resistance guarantees secure, leak-proof, and long-lasting connections in challenging industrial and commercial settings.
