Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, specializing in high-quality Stainless Steel 316L Flanges. These flanges are celebrated for their exceptional corrosion resistance, strength, and durability, making them perfect for secure and dependable connections in piping systems. Emilio Stainless is committed to ensuring that each flange adheres to international quality standards, delivering long-lasting performance even in tough industrial settings. Stainless Steel 316L Flanges find extensive use in various industries, including chemical processing, food and beverage, pharmaceuticals, and marine applications, where they excel in resisting corrosion, high pressure, and extreme temperatures.
Stainless Steel 316L Flanges are primarily made of iron, containing 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which significantly boosts their resistance to corrosion, pitting, and chemical damage. The low carbon content helps prevent carbide precipitation during welding, preserving both corrosion resistance and structural integrity. These flanges boast high tensile strength, good yield strength, and impressive hardness, ensuring they can handle high-pressure and high-temperature situations reliably. Their toughness, thermal stability, and ability to withstand aggressive chemicals make them a top choice for long-term industrial applications.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 316L Flanges Emilio Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Emilio Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

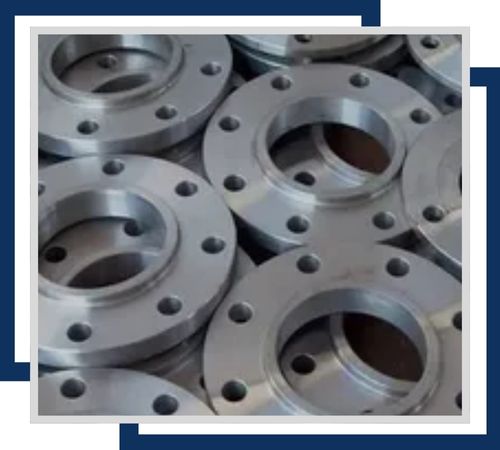

Stainless Steel 316L Threaded Flanges come in sizes from 1/2″ to 24″. Their corrosion resistance makes them ideal for low-pressure, non-welded applications. The threaded design allows for easy installation and removal without welding.

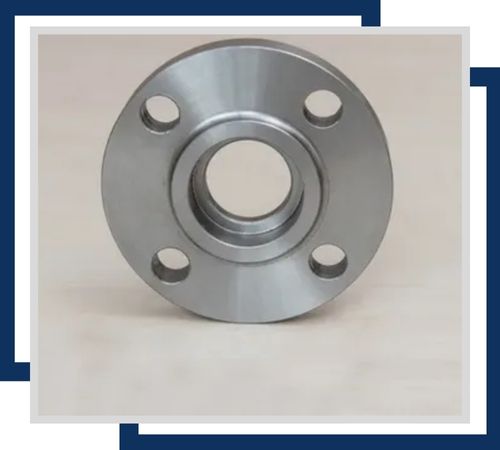

SS 316L Socket Weld Flanges are available in sizes from 1/2″ to 24″. They provide good corrosion resistance and are designed for small-diameter, high-pressure systems. The socket weld connection ensures a strong and secure joint.

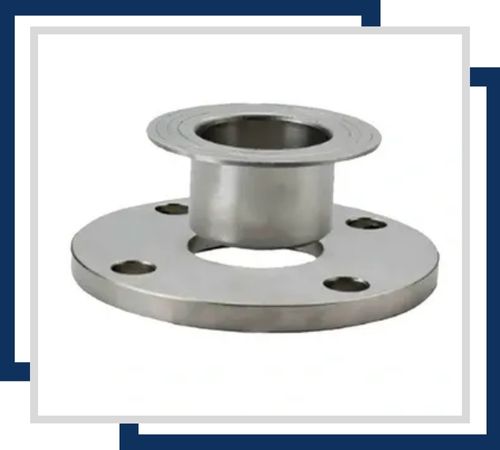

Stainless Steel 316L Lap Joint Flanges come in sizes from 1/2″ to 24″. They are highly corrosion-resistant and suitable for systems requiring frequent disassembly. The loose flange design allows for easy alignment and flexibility in installation.
Stainless Steel 316L Flanges are commonly utilized in the chemical, pharmaceutical, and food processing sectors for connecting pipes, valves, pumps, and other equipment. They are particularly well-suited for marine and offshore applications, water treatment facilities, and desalination systems due to their resistance to chloride-induced corrosion. Additionally, these flanges are used in oil and gas pipelines, high-pressure piping systems, and industrial machinery that require secure and leak-proof connections. With their durability, corrosion resistance, and strength, Stainless Steel 316L Flanges guarantee safe, efficient, and long-lasting performance in demanding industrial and commercial environments.
