Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, specializing in top-notch stainless steel products like Stainless Steel 304H Nuts. With a strong focus on precision engineering and durability, Emilio Stainless is dedicated to delivering fastening solutions that adhere to international standards for mechanical strength and corrosion resistance. Their Stainless Steel 304H Nuts are expertly crafted to excel in high-temperature and high-pressure settings, guaranteeing reliable and long-lasting performance in even the most demanding industrial applications.
These Stainless Steel 304H Nuts are made from a high-carbon variant of the austenitic stainless steel 304 alloy, which includes 18–20% chromium, 8–10.5% nickel, and a higher carbon content (0.04–0.10%). This unique blend boosts tensile strength, creep resistance, and heat tolerance while still offering impressive corrosion and oxidation resistance up to 870°C. Typically, the material showcases tensile strength between 515 to 750 MPa, maintaining excellent toughness and ductility even when faced with thermal stress.
| Specifications | DIN, ISO ,JIS ,GB, IS, BS, ASTM |
| Standard | ASTM A193 / A194, ASME SA193 / SA194 |
| Size | M2 – M100 |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions Standard | DIN: DIN931, 933, 934, 7991, 976, 125 ISO: ISO 4033, 4032 ASME B18.5, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.

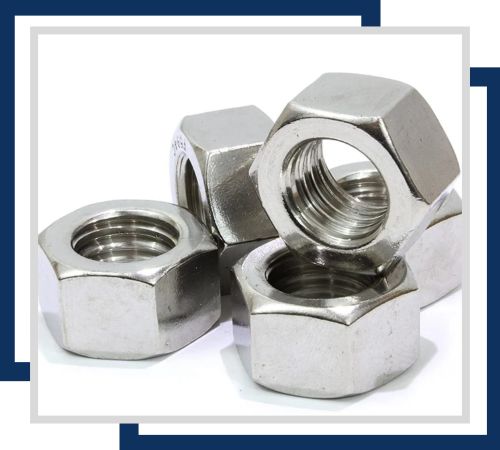

Stainless Steel 304H Nuts Designed for high-stress environments, these nuts provide excellent corrosion resistance and durability. Available in sizes ranging from M6 to M36, they are ideal for chemical, petrochemical, and power generation applications.

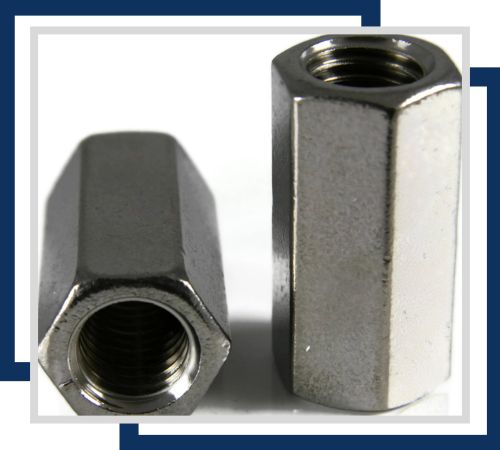

Stainless Steel 304H Coupling Nuts Ideal for joining threaded rods, these coupling nuts offer high strength and temperature resistance. Available in sizes from M6 to M36, they are suitable for industrial applications such as piping systems and machinery assemblies.

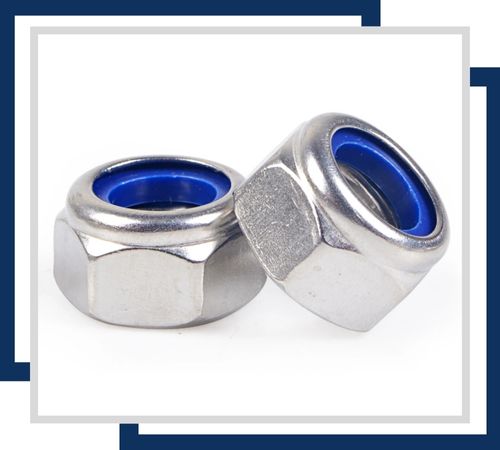

These nuts feature a nylon insert for secure fastening and vibration resistance. Available in sizes from M6 to M24, they ensure a tight fit and prevent loosening, making them perfect for machinery and automotive applications.

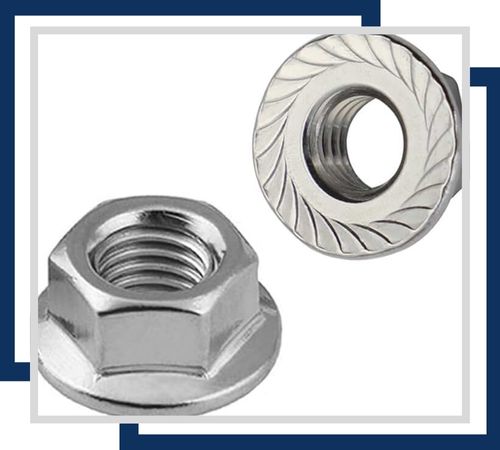

Featuring integrated flanges for extra support, these SS 304H nuts provide enhanced load distribution and stability. Available in sizes from M6 to M24, they are ideal for use in heavy-duty equipment and construction projects.

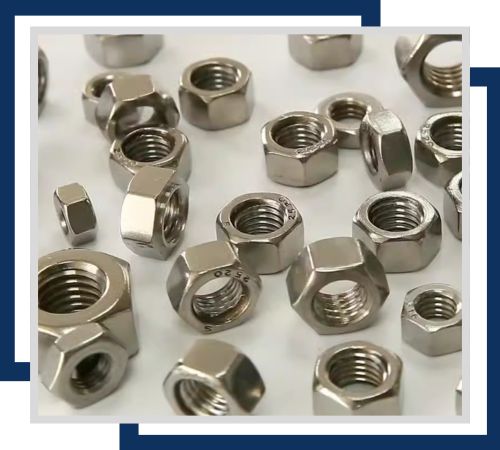

Offering superior strength for heavy-duty applications, these SS 304H nuts are designed for high-pressure and high-temperature environments. Available in sizes from M6 to M36, they are perfect for boilers and heat exchangers.

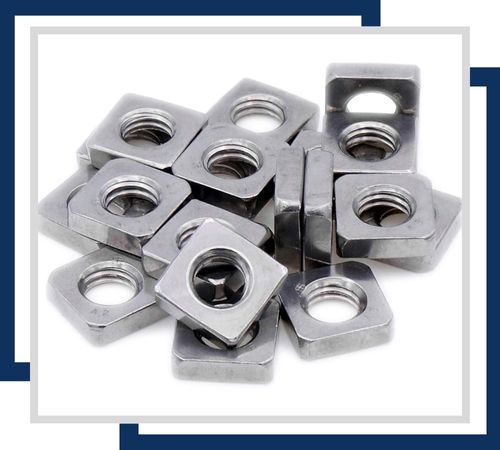

These square nuts provide a large surface area for effective torque application. Available in sizes from M6 to M24, they are ideal for secure fastening in tight spaces within industrial machinery and structural applications.
You’ll find Stainless Steel 304H Nuts being utilized across various industries, including petrochemical, power generation, chemical processing, oil and gas, and marine engineering. They’re perfect for high-temperature systems, boilers, heat exchangers, and pressure vessels where superior strength and scaling resistance are crucial. Their robust nature and stability under extreme conditions make them ideal for both welded and non-welded assemblies. With Stainless Steel 304H Nuts, you can count on secure fastening, a long service life, and reliable performance in critical applications that demand strength, heat resistance, and corrosion protection.
Stainless steel 304H nuts are most commonly applied for high-temperature and high-pressure applications as the nuts offer both strength and stability. They find applications in pharmaceutical, oil, and gas applications, where mainly thermal and corrosion requirements have to be put with the application of packaging material in the boiler, heat exchanger, or pressure vessels. These nuts offer structural stability up to extreme conditions, making them preferred for highly complex industrial applications where there is a requirement for consistent and reliable performance.
