Emilio Stainless, located in Manila, Philippines, is a trusted manufacturer and supplier of top-notch stainless steel products, including Stainless Steel 310 Nuts. Renowned for their remarkable strength and durability, Emilio Stainless guarantees that these nuts comply with international standards, making them perfect for high-temperature and corrosive environments. Crafted to ensure secure and long-lasting fastening, Stainless Steel 310 Nuts are the go-to choice for demanding industrial applications where heat and oxidation resistance are essential.
These nuts are made from an austenitic stainless steel alloy that contains about 24–26% chromium and 19–22% nickel. This unique blend provides outstanding resistance to oxidation, scaling, and corrosion, even at elevated temperatures of up to 1150°C. With a tensile strength of around 515 MPa, along with impressive ductility, toughness, and thermal fatigue resistance, they promise reliable mechanical performance in tough conditions.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Element | SS 310 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.

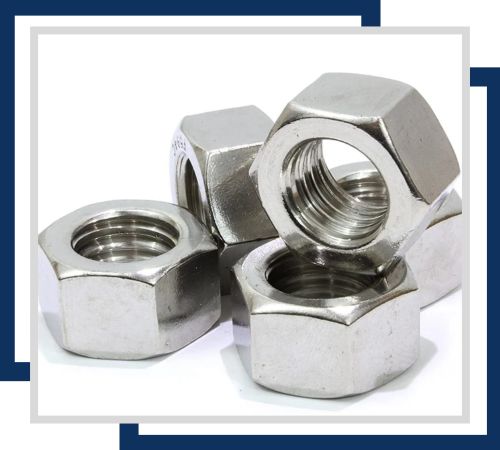

A corrosion-resistant product, Stainless Steel 310 nuts are available in sizes from M6 to M64. They are designed for high-temperature applications, providing excellent resistance to oxidation and durability in extreme heat environments.

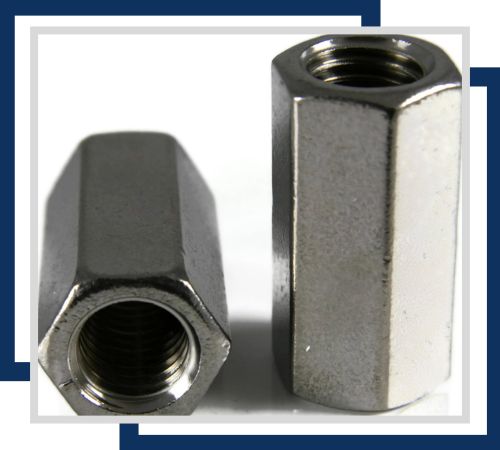

A corrosion-resistant product, Stainless Steel 310 coupling nuts, available in sizes from M6 to M36, connect two male threads securely. Their high-temperature resistance makes them ideal for use in furnace and heat exchanger applications.

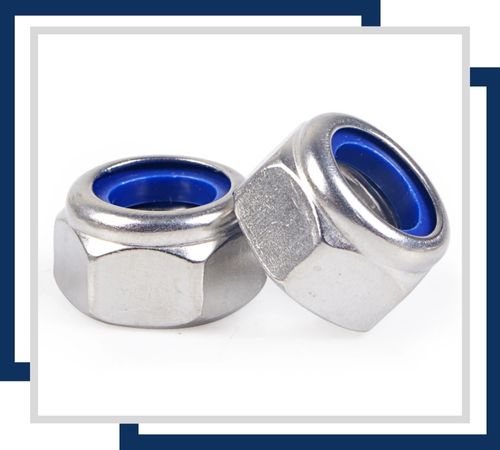

A corrosion-resistant product, Stainless Steel 310 nylon insert nuts, or lock nuts, come in sizes from M3 to M36. The nylon insert prevents loosening under vibration, and the stainless steel provides heat and oxidation resistance for high-temperature environments.

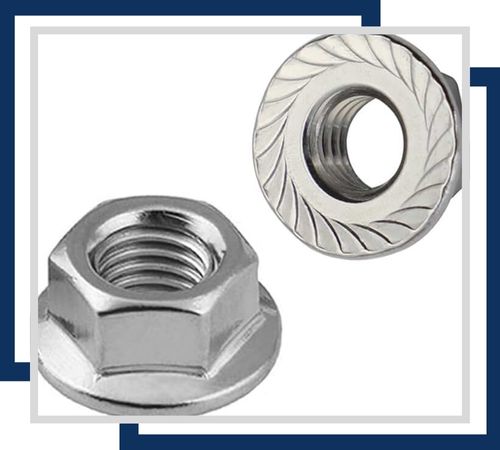

A corrosion-resistant product, Stainless Steel 310 flange hex nuts feature an integrated flange and are available in sizes from M5 to M20. They offer superior load distribution and stability in high-temperature applications, such as in industrial furnaces.

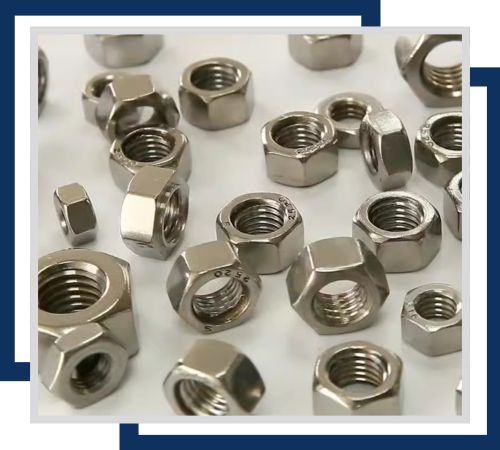

A corrosion-resistant product, Stainless Steel 310 heavy hex nuts are available in sizes from M10 to M48. Their increased thickness provides superior strength and durability, ideal for heavy-duty applications in extreme heat conditions.

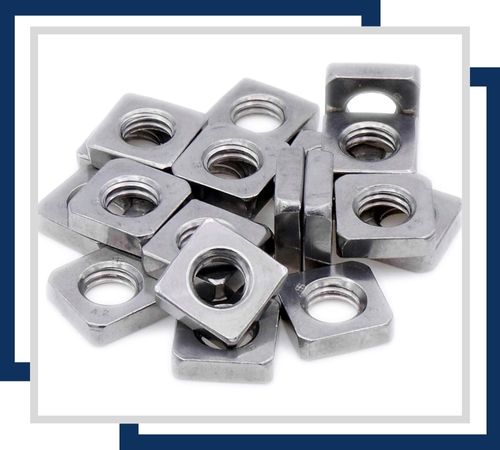

A corrosion-resistant product, Stainless Steel 310 square nuts come in sizes from M6 to M30. Their larger contact surface ensures secure fastening, making them suitable for high-temperature applications in industrial and aerospace settings.
Commonly found in furnace manufacturing, petrochemical plants, power generation, and chemical processing industries, Stainless Steel 310 Nuts are ideal for fastening components in high-temperature piping systems, boilers, heat exchangers, and other equipment that face extreme thermal and corrosive challenges. Their exceptional heat resistance and mechanical strength make them the preferred option for critical high-temperature applications.
Stainless steel 310 nuts are used in an oxidation resistance high-temperature environment. Its best applications can be seen in industrial furnaces, heat exchangers and cover furnaces where temperatures reach more than 1000°C or 1832°F. The resistance of stainless steel nuts 310 to thermal power with strength is highly suited to aerospace applications and air filters. Generally, these nuts are tough and responsive to extreme temperatures and corrosive conditions, so reliance on them for harsh industrial applications can be made.
