Home > Electrodes > 309LMo MIG & TIG Filler Welding Wire & Rod
Emilio Stainless is a reputable manufacturer and supplier based in Manila, Philippines, known for providing top-notch welding consumables like the AWS Class 309LMo MIG and TIG Filler Welding Wire and Rod. We’re dedicated to ensuring consistent performance and quality that meets international standards, catering to a variety of industries that need dependable stainless steel welding solutions. Our 309LMo filler products are specially designed to deliver excellent corrosion resistance, strength, and weldability. With a solid reputation for durability and customer satisfaction, we proudly support sectors such as marine, chemical processing, power generation, and industrial fabrication across the Philippines and its neighboring areas.
The AWS Class 309LMo MIG and TIG Filler Welding Wire and Rod are crafted with a precise chemical composition to provide high corrosion resistance and strength, particularly in environments with chlorides. Typically, the composition features 23–25% Chromium, 12–14% Nickel, 2.0–3.0% Molybdenum, and a low carbon content (maximum 0.03%). This blend boosts resistance to pitting and crevice corrosion while minimizing carbide precipitation. The mechanical properties include a tensile strength of about 87,000 psi (600 MPa), a yield strength of around 60,000 psi (414 MPa), and an elongation of 30–35%. These traits make it perfect for maintaining structural integrity under challenging service conditions.
| Classification | AWS A5.9, 309LMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS 309LMo MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Si | Cr | Ni | S | P | Mo | Cu |
| 0.03 max | 1.0-2.5 | 0.30-0.65 | 23-25 | 12-14 | 0.03 max | 0.03 max | 2-3 | 0.75 max |
| Tensile Strength (psi) | 86,000 psi (593 MPa) |
|---|---|
| Yield Strength (psi) | 57,000 psi (393 MPa) |
| Elongation (%) | 42% |
Contact us to get a quick quote for your requirement.

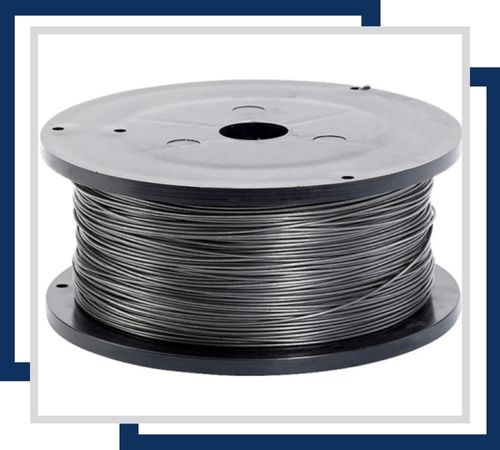

Alloy 309LMo MIG filler wire provides excellent corrosion resistance and high-temperature strength, suitable for welding in harsh environments like chemical processing and power generation.

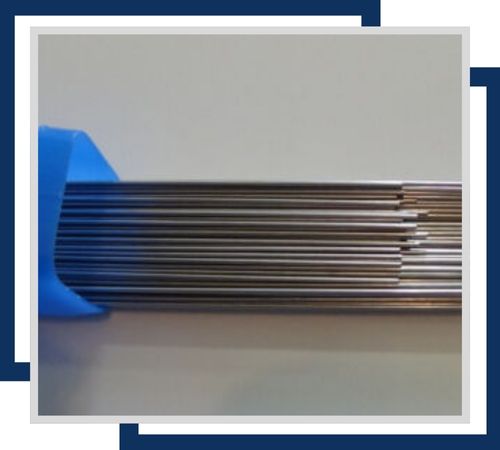

Alloy 309LMo TIG filler wire offers superior resistance to pitting and crevice corrosion, ideal for high-temperature applications and joining dissimilar metals in challenging environments.

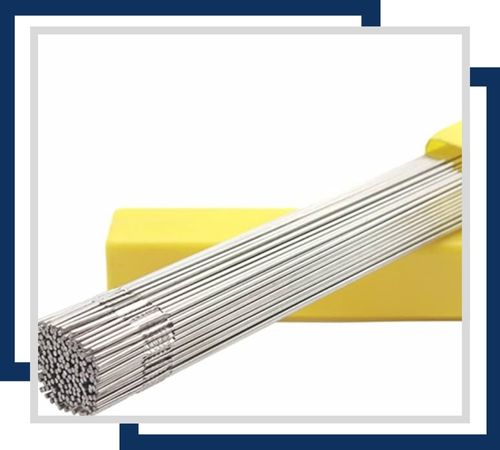

Alloy 309LMo TIG filler rod delivers robust corrosion resistance and strength, perfect for precision welding in harsh conditions, including chemical processing, petrochemical, and power generation industries.
We conduct extensive in-house testing to ensure that the highest quality standards are achieved by 309L Mo MIG and TIG Filler Welding Wires and Rods. Our customers know that we offer comprehensive third-party inspection services for these products to provide them with the assurance that these products are reliable and performing. We equally hold equal attention with regard to the timely supply of products for which you can place your orders in advance thus enabling you to also plan efficiently the other components of your project.
AWS Class 309LMo MIG and TIG Filler Welding Wire and Rod are commonly utilized for welding dissimilar metals, such as stainless to carbon steels, and for overlay applications where corrosion resistance is essential. Key industries include pulp and paper, chemical processing, marine environments, desalination plants, and pressure vessel fabrication. The inclusion of molybdenum further enhances resistance to localized corrosion, ensuring reliability in demanding applications.
