Home > Electrodes > AWS Class ER316/316H MIG & TIG Filler Welding Wire & Rod
EMILIO STAINLESS offers ER316 / ER316H solid stainless-steel filler wire and rod, adhering to AWS A5.9 / ASME SFA 5.9 (UNS S31680) standards for MIG (GMAW) and TIG (GTAW) welding. This filler is specifically crafted for welding 316 / 316H stainless steel and similar alloys. The key difference with ER316H is its higher carbon content (around 0.04–0.08 wt%), which enhances strength at elevated temperatures. It contains approximately 2.0–3.0 wt% molybdenum (Mo), 18–20% chromium (Cr), 11–14% nickel (Ni), 0.30–0.65% silicon (Si), 1.0–2.5% manganese (Mn), along with trace amounts of phosphorus (P), sulfur (S), and copper (Cu). ([Weldtool Technologies][1])
When it comes to mechanical properties, welds made with ER316 / ER316H are quite strong, boasting a tensile strength of about **580–650 MPa** (roughly 84,000–94,000 psi), a yield strength (0.2%) of around **400–600 MPa** (about 58,000–60,000 psi), and an elongation of **35–40%** or more at room temperature. These characteristics allow the welds to endure high temperatures, resist creep stress, and maintain good toughness. ([Weldtool Technologies][2])
| Classification | AWS A5.9, ER316/316H |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER316/316H MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.03 | 18.0-20.0 | 11.0-14.0 | 2.0-3.0 | 1.0-2.5 | 0.30-0.65 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 80 |
| Tensile Strength, kpsi: | 55 |
| Elongation%, min: | 40 |
Contact us to get a quick quote for your requirement.

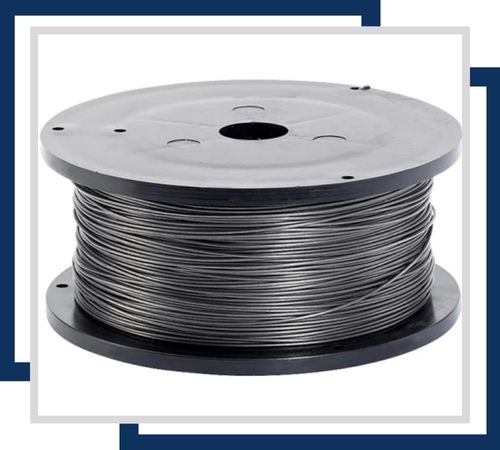

ER316/316H MIG filler wire provides excellent corrosion resistance and strength, ideal for welding stainless steels in chemical, petrochemical, and marine applications, with high durability in harsh environments.

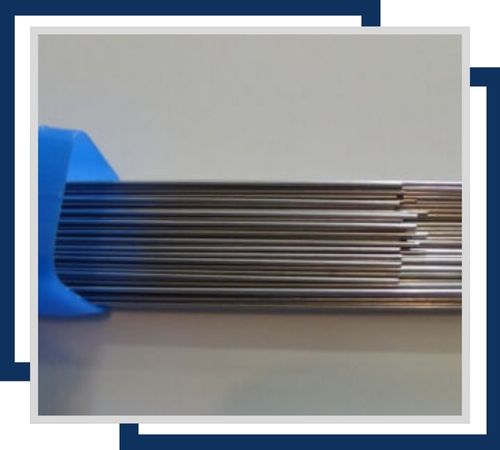

ER316/316H TIG filler wire ensures superior corrosion resistance and strength for precise welding of stainless steels, suitable for high-temperature environments in industries like chemical processing and aerospace.

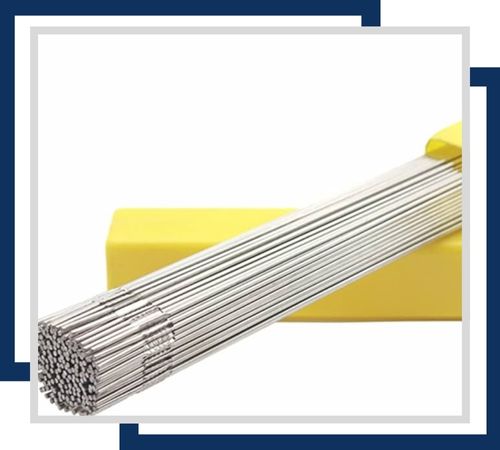

ER316/316H TIG filler rod offers excellent resistance to corrosion and high temperatures, ideal for welding and repairing stainless steel components in demanding applications, including chemical and marine industries.
We conduct rigorous in-house testing to ensure the highest quality and performance standards for our AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod. Our commitment to quality includes thorough inspection processes to meet industry requirements. Ensuring reliable and consistent products. With a focus on timely service, we guarantee prompt delivery, ensuring that our customers receive their orders without delay, every time.
As for applications, this filler is ideal for welding 316 / 316H base metals in high-temperature environments, such as steam piping, furnace components, and superheater headers. It’s also used in petrochemical and chemical plants, power generation equipment, turbines, heat exchangers, and anywhere that excellent corrosion resistance and creep strength are essential under high temperatures. Additionally, it’s great for repairs, overlays, or joining similar Mo-bearing austenitic stainless steels. For MIG welding, it’s typically used with Direct Current Electrode Positive (DCEP), while for TIG, Direct Current Electrode Negative (DCEN) is preferred, often with shielding gases like pure Argon or Argon mixtures
