Emilio Stainless, a well-respected manufacturer and supplier located in Manila, Philippines, proudly offers top-notch AWS Class ER316LSi MIG and TIG filler wires and rods. These filler materials are crafted for outstanding performance and seamless weldability, specifically tailored for welding 316 and 316L stainless steels. With a commitment to precise chemical composition and a flawless surface finish, Emilio Stainless guarantees dependable welding results for both manual and automated processes. Their strong emphasis on corrosion resistance and a clean weld appearance makes Emilio Stainless the go-to source for stainless steel filler metals throughout the Philippines.
AWS Class ER316LSi is a low-carbon, molybdenum-bearing austenitic stainless steel filler wire and rod, featuring around 16-18% chromium, 10-14% nickel, 2-3% molybdenum, and an enhanced silicon content. The added silicon boosts arc stability, weld fluidity, and bead appearance, making it perfect for MIG (GMAW) and TIG (GTAW) welding techniques. The low carbon content helps reduce the risk of intergranular corrosion post-welding, while the molybdenum enhances resistance to pitting and general corrosion. ER316LSi provides solid mechanical strength and excellent weldability across a variety of conditions.
| Classification | AWS A5.9, ER316LSi |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER316LSi MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S |
| 0.03 | 18.0-20.0 | 11.0-14.0 | 2.0-3.0 | 1.0-2.5 | 0.65-1.0 | 0.03 | 0.03 |
| Yield, kpsi: | 64 |
| Tensile Strength, kpsi: | 90 |
| Elongation%, min: | 37 |
Contact us to get a quick quote for your requirement.

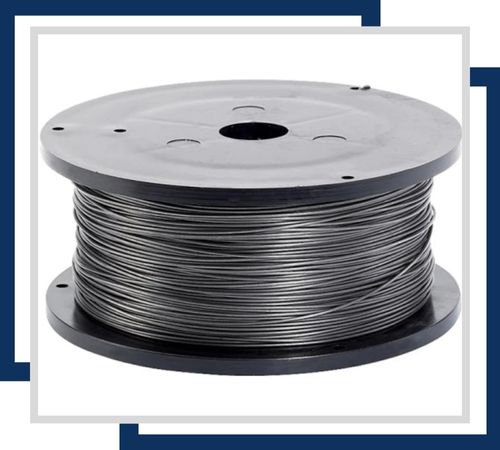

Stainless Steel ER316LSi MIG Filler Wire is designed for MIG welding applications with excellent corrosion resistance, especially in environments with chlorides and chemicals. It typically comes in sizes ranging from 0.030 inches (0.8 mm) to 0.045 inches (1.2 mm) in diameter. The wire provides good weld bead appearance and reduces spatter.

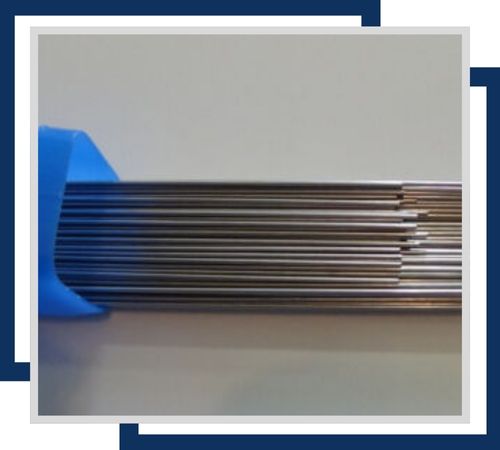

Stainless Steel ER316LSi TIG Filler Wire is suitable for TIG welding and offers enhanced corrosion resistance, particularly in harsh environments. It is available in sizes from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm) in diameter. The wire ensures high-quality, clean welds with minimal oxidation.

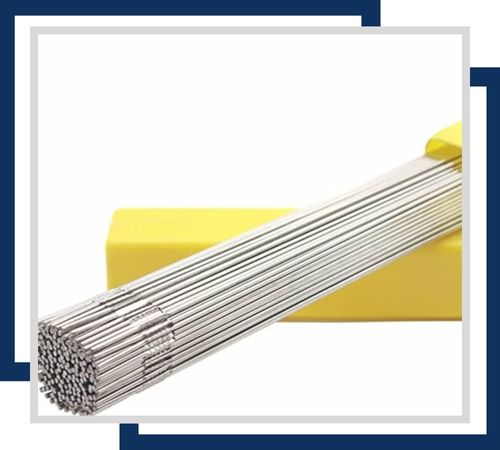

Stainless Steel ER316LSi TIG Filler Rod is used for TIG welding stainless steel, providing superior resistance to pitting and crevice corrosion. Commonly available in lengths of 36 inches (914 mm) and diameters from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm). It delivers excellent weld strength and smooth, clean welds.
Each AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials to prevent any damage or contamination during transit. We prioritize timely deliveries also guaranteeing quick and efficient transportation to meet our clients needs. Additionally all relevant documentation regarding the product is provided at the time of delivery assuring full transparency and satisfaction for our valued customers.
These AWS Class ER316LSi filler wires and rods are commonly utilized in industries that demand high corrosion resistance and visually appealing welds, such as food and beverage processing, pharmaceuticals, marine environments, petrochemical plants, and architectural projects. Typical applications include welding tanks, piping, pressure vessels, and stainless steel structures that are exposed to chlorides or harsh chemicals. Emilio Stainless distributes ER316LSi MIG and TIG filler materials throughout Manila and the Philippines, delivering reliable, high-quality solutions for essential stainless steel welding tasks with both strength and precision.
