Home > Electrodes > AWS Class ER410 Mig & Tig Filler Welding Wire & Rod
Emilio Stainless, a reputable manufacturer and supplier located in Manila, Philippines, proudly offers top-notch AWS Class ER410 MIG and TIG filler welding wires and rods. These filler materials are specifically designed for welding martensitic stainless steels, ensuring high strength, wear resistance, and dependable performance even in tough conditions. At Emilio Stainless, we adhere to rigorous manufacturing standards to guarantee a consistent chemical composition, smooth feeding, and clean welds. We cater to a diverse range of industries across the Philippines, providing welding solutions that meet the needs of both industrial fabrication and critical repair tasks.
The AWS Class ER410 filler wire and rod are crafted from a straight chromium martensitic stainless steel alloy, typically featuring around 11.5–13.5% chromium and minimal nickel content. This unique composition delivers impressive hardness and wear resistance after the appropriate post-weld heat treatment. These filler materials boast high tensile strength—approximately 90,000 to 100,000 psi—and are compatible with both MIG (GMAW) and TIG (GTAW) welding processes. Since ER410 creates air-hardening weld deposits, we recommend preheating and post-weld heat treatment to reduce the risk of cracking and to achieve the best mechanical properties.
| Classification | AWS A5.9, ER410 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410 MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.12 | 11.5-13.5 | 0.6 | 0.75 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 78 |
| Tensile Strength, kpsi: | 89 |
| Elongation%, min: | 24 |
Contact us to get a quick quote for your requirement.

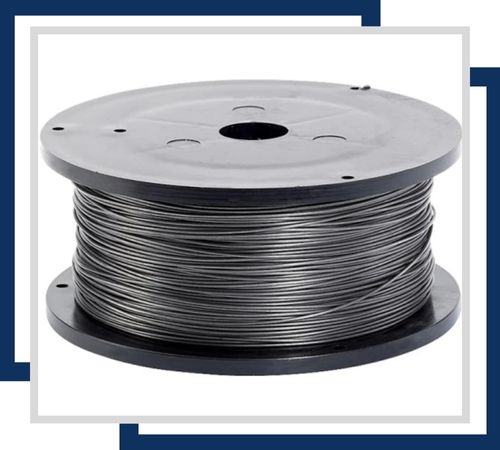

ER410 MIG filler wire offers high strength and wear resistance, ideal for welding martensitic stainless steels in applications requiring durability and high-temperature performance.

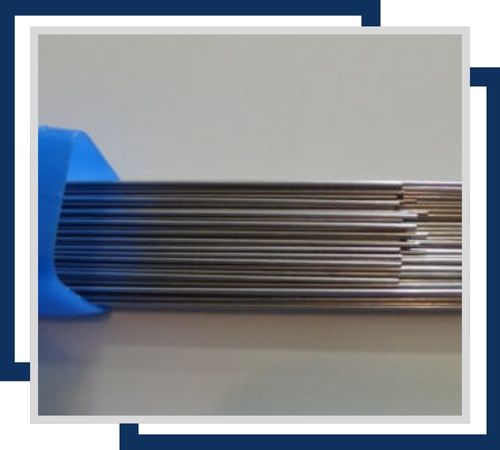

ER410 TIG filler wire provides excellent hardness and abrasion resistance, suitable for welding stainless steel components exposed to high stress and wear, ensuring strong, durable joints.

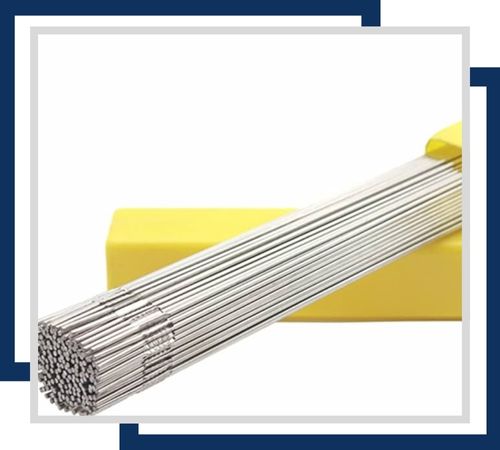

ER410 TIG filler rod delivers superior hardness and wear resistance, used for welding martensitic stainless steels in high-stress environments, offering strong, reliable welds and durability.
Each AWS Class ER410 MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials. To prevent any damage or corrosion during transit. We are committed to guaranteeing customer satisfaction by providing timely deliveries. Through efficient transportation methods. Along with the products, we also supply all the necessary documentation to our clients at the time of delivery, ensuring complete transparency and support throughout the process.
AWS Class ER410 MIG and TIG filler wires and rods are commonly utilized for welding 410 stainless steel and other similar martensitic grades. Typical applications include pump shafts, turbine blades, valve components, and hardfacing tasks where high wear and abrasion resistance are essential. They are particularly well-suited for the power generation, petrochemical, aerospace, and manufacturing sectors. Emilio Stainless is dedicated to supplying ER410 welding filler materials throughout Manila and the Philippines, ensuring reliable and high-performance solutions for all your welding needs.
