Home > Electrodes > AWS Class ER320LR Mig & Tig Filler Welding Wire & Rod
Emilio Stainless is a reputable manufacturer and supplier of top-notch AWS Class E330-16 electrodes, proudly based in Manila, Philippines. With a strong dedication to quality and years of industry know-how, Emilio Stainless caters to a variety of industrial sectors by offering reliable welding solutions that align with international standards. Renowned for their precision engineering and consistent product performance, the company’s electrodes are specifically crafted to excel in high-temperature and corrosion-resistant welding applications. Emilio Stainless takes pride in being a local leader in providing AWS E330-16 electrodes, bolstering Philippine industries with trustworthy and cost-effective welding materials that are built to endure.
The AWS Class E330-16 electrodes from Emilio Stainless are tailored for welding heat- and oxidation-resistant alloys. These electrodes typically feature around 35% nickel, 15% chromium, and 2% silicon, which together deliver outstanding resistance to oxidation and scaling at high temperatures. The weld deposit boasts moderate strength, with tensile strengths reaching up to 75,000 psi. Its well-balanced composition ensures high resistance to thermal fatigue and creep. Emilio Stainless guarantees that each batch of electrodes meets stringent AWS specifications, ensuring reliable weld integrity, stable arcs, and ease of use in demanding industrial settings.
| Classification | AWS A5.9, ER320LR |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER320LR MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Nb | Cu 8XC min/0.40 max |
| 0.025 | 19.0-21.0 | 32.0-36.0 | 2.0-3.0 | 1.5-2.0 | 0.15 | 0.015 | 0.02 | 3.0-4.0 | 0.75 |
| Tensile Strength, ksi: | 86* |
| Yield Strength, ksi: | 58* |
| Elongation %: | 35* |
Contact us to get a quick quote for your requirement.

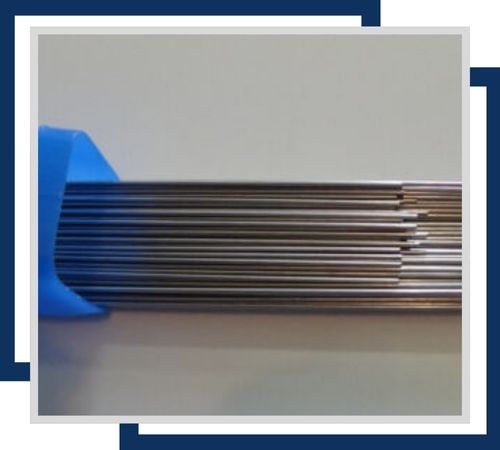

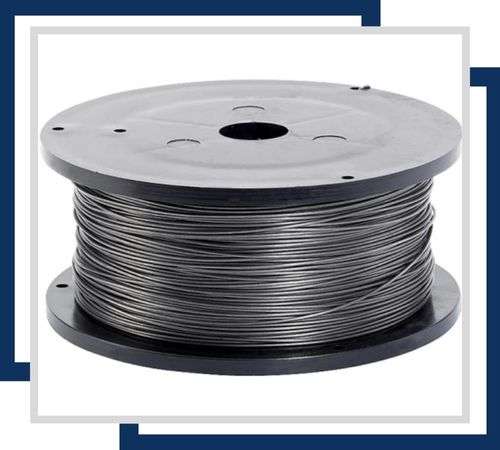

This welding wire is available in sizes ranging from 0.8mm to 1.6mm in diameter. It is designed for high corrosion resistance, particularly in chloride-containing environments. The ER320LR alloy ensures stability in both high and low temperatures, making it ideal for demanding applications.
Available in sizes from 1.0mm to 2.4mm in diameter, this TIG filler wire offers excellent corrosion resistance, especially in aggressive chemical environments. The low carbon content of ER320LR minimizes carbide precipitation, ensuring enhanced durability and performance. It is suitable for welding similar alloys and dissimilar metals.

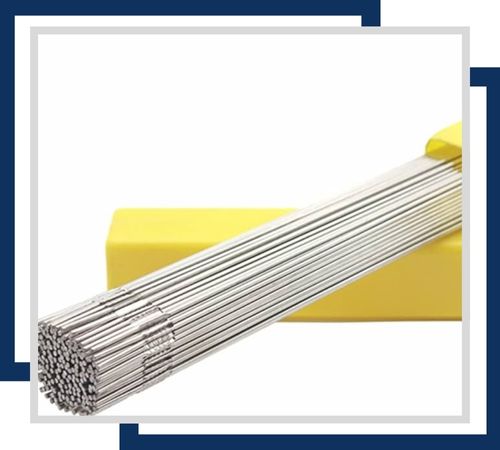

These rods come in diameters ranging from 1.6mm to 4.8mm, providing versatility for various welding needs. They offer superior corrosion resistance, particularly against intergranular and stress corrosion cracking. The ER320LR alloy composition makes them ideal for use in high-stress and high-temperature applications.
we conduct rigorous internal tests on our AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod to ensure their superior performance and reliability. These tests include checks for weld strength, corrosion resistance and overall durability to meet stringent industry standards. We also offer third-party inspection services to provide additional assurance. Our focus on prompt delivery. Assure that our customers receive high-quality products on time, meeting their specific project requirements without delays.
Emilio Stainless’s AWS Class E330-16 electrodes are extensively utilized in industries that require exceptional heat and oxidation resistance. These electrodes are perfect for welding both cast and wrought forms of the 330 stainless steel alloy, which is commonly found in heat-treating equipment, furnace components, chemical processing, and petrochemical facilities. Their impressive performance at temperatures soaring up to 1150°C makes them ideal for fabricating and repairing parts that face thermal cycling and oxidizing conditions. Whether for new projects or maintenance welding, Emilio Stainless provides E330-16 electrodes that ensure consistent quality and durability, supporting the needs of various industries.
