ER410NiMo falls under the classification of **AWS A5.9 / ASME SFA 5.9** as a stainless filler metal. It’s a martensitic/martensitic-ferritic stainless alloy that contains approximately **11.0‑12.5% Chromium (Cr)**, **4.0‑5.0% Nickel (Ni)**, and **0.4‑0.7% Molybdenum (Mo)**. Carbon content is kept to a maximum of ~0.06% to manage hardening and enhance toughness. Additionally, trace amounts of elements like manganese (Mn), silicon (Si), phosphorus (P), sulfur (S), and copper (Cu) are included (Mn ≤ 0.60%, Si ≤ 0.50%, P, S ≤ 0.03%, Cu up to ~0.75%).
When applied through MIG or TIG processes, ER410NiMo yields weld metal that boasts high strength and decent toughness. You can expect typical tensile strength values around **118,000 psi (≈ 810 MPa)**, with yield strengths hovering around **92,000 psi (≈ 635 MPa)**. Elongation is generally about **20%** in many instances. The hardness of the weld deposit tends to be on the higher side due to the martensitic phase, so it’s advisable to preheat and control interpass temperatures (at least ~300 °F / 150 °C) to prevent cracking. Also, post-weld heat treatment (PWHT) should not exceed ~ 1150 °F (≈ 620 °C), as higher temperatures could result in over-hardening or a reduction in toughness.
| Classification | AWS A5.9, ER410NiMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410NiMo MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.06 | 11.0-12.5 | 4.0-5.0 | 0.4-0.7 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 92 |
| Tensile Strength, kpsi: | 118 |
| Elongation%, min: | 20 |
Contact us to get a quick quote for your requirement.

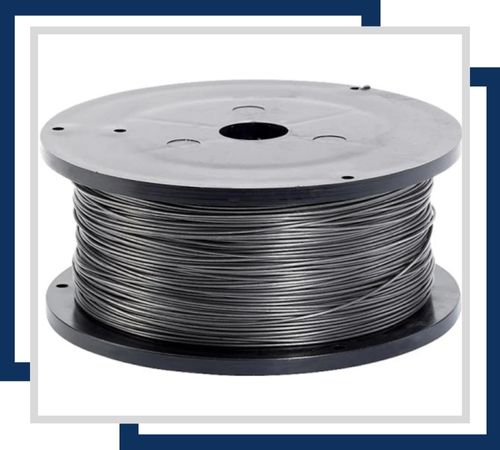

ER410NiMo MIG filler wire provides enhanced toughness and corrosion resistance, ideal for welding high-stress components and tools, ensuring strong, durable welds in demanding environments.

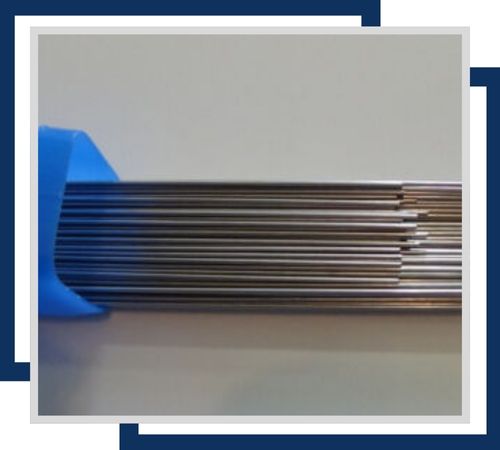

ER410NiMo TIG filler wire offers superior toughness and resistance to corrosion, suitable for welding martensitic stainless steels in applications requiring high durability and performance under stress.

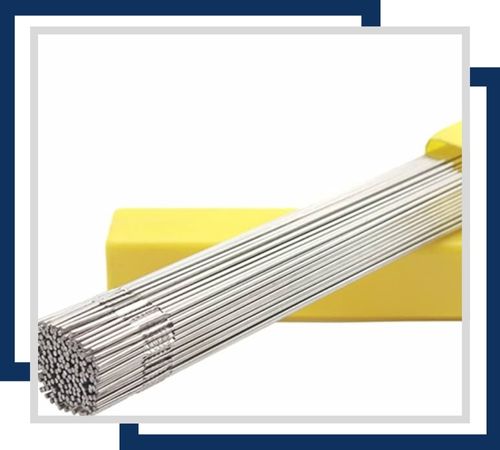

ER410NiMo TIG filler rod delivers excellent toughness and resistance to corrosion, ideal for welding components exposed to high temperatures and severe conditions, ensuring durability and strong welds.
After manufacturing our quality control team conducts a series of destructive and non-destructive tests. Using advanced tools to make sure the performance and reliability of the AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod. We then package the products securely and ensure timely delivery to customers providing all necessary documentation at the time of delivery to assure complete transparency.
ER410NiMo is designed for welding both cast and wrought martensitic or martensitic-ferritic stainless steels that share a similar composition. Common base materials include CA6NM cast alloys, 410, 410S, and comparable grades. Key applications for this filler wire include turbine components, valve bodies, pump parts, hydro turbines, steam and power generation equipment, and any environment that combines stress and corrosion resistance.
