Emilio Stainless, located in Manila, Philippines, stands out as a top manufacturer and supplier of premium Stainless Steel 304H Forged Fittings. These fittings are crafted for high-temperature and demanding industrial environments, boasting remarkable corrosion resistance, mechanical strength, and durability. The 304H grade, which has a higher carbon content than the standard 304, offers enhanced tensile strength and heat resistance, making it perfect for critical piping systems. At Emilio Stainless, advanced forging techniques and rigorous quality control ensure that each fitting meets precise dimensions, delivers consistent performance, and enjoys a long service life. They provide secure, leak-proof connections for various applications, including industrial, chemical, petrochemical, and power generation.
Stainless Steel 304H Forged Fittings are made up of 18–20% chromium, 8–10.5% nickel, and a carbon content ranging from 0.04–0.10%, along with small amounts of manganese, silicon, and phosphorus. This austenitic stainless steel showcases a tensile strength of 520–620 MPa and a yield strength of about 210–310 MPa, along with excellent toughness and ductility. The increased carbon content boosts high-temperature strength while still providing corrosion and oxidation resistance. These forged fittings are not only dimensionally accurate but also mechanically strong and heat-resistant, making them ideal for high-pressure, high-temperature industrial piping systems.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
The rigorous testing and certifications of Emilio Stainless help ensure that their Stainless Steel 304H Forged Fittings meet the finest quality standards. Every product, whether in raw material analysis or dimensional checks and pressure tests, is carefully tested. With authentications from respected authorities, it adheres strictly to international standards while ensuring reliability and durability and great performance in a critical application.

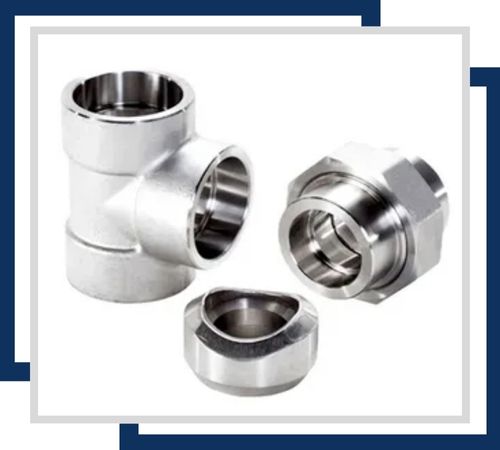

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.

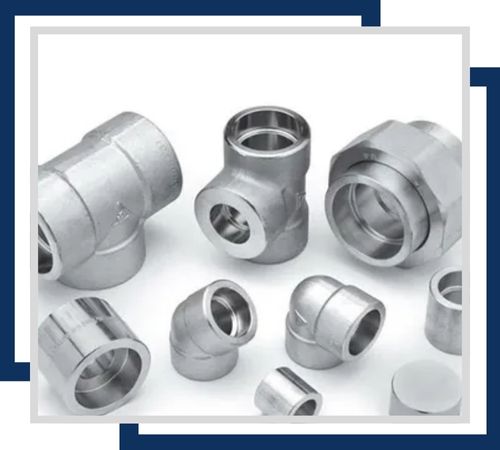

Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.

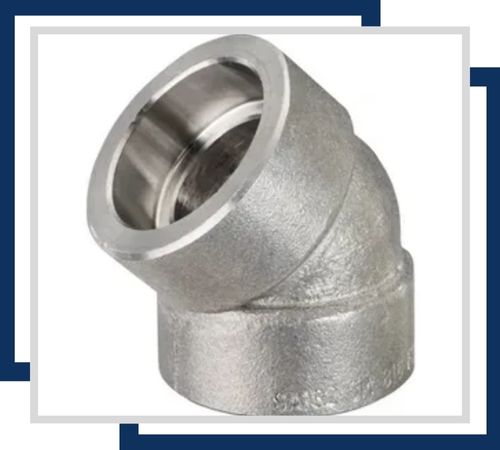

These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

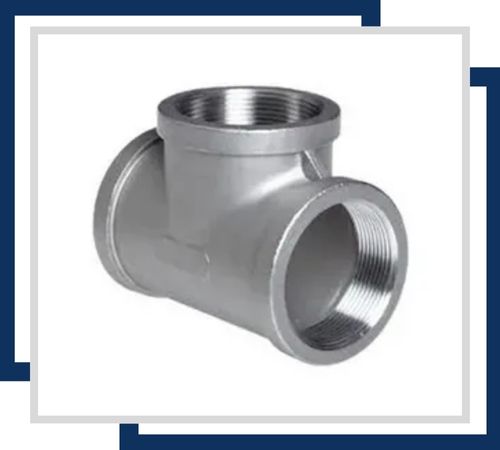

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

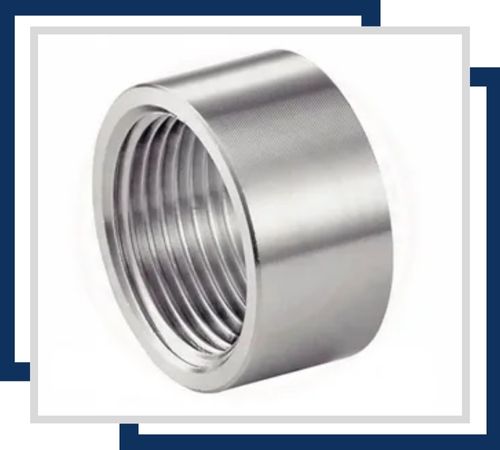

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

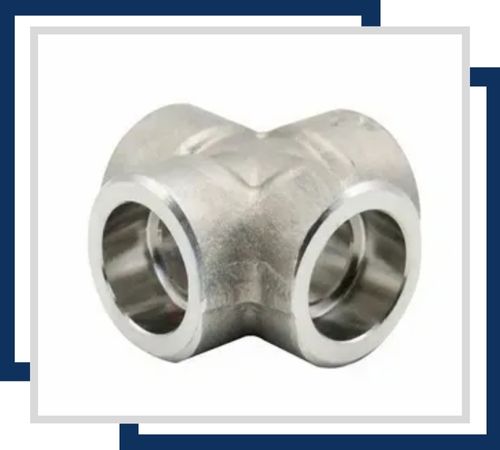

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Stainless Steel 304H Forged Fittings find extensive use in chemical processing plants, petrochemical industries, power generation, and high-temperature industrial piping systems. They are particularly well-suited for connecting pipelines in boilers, heat exchangers, furnace lines, and exhaust systems, where corrosion resistance, mechanical strength, and heat tolerance are essential. These forged fittings ensure durable, leak-proof, and secure connections for critical industrial and mechanical applications. Emilio Stainless offers a variety of 304H forged fittings to meet diverse needs, ensuring reliability and performance across various sectors.
