Emilio Stainless is a top-notch manufacturer and supplier located in Manila, Philippines, specializing in high-quality Stainless Steel 316Ti Forged Fittings. Renowned for their precision engineering and outstanding performance, these fittings are crafted to meet the rigorous demands of various industries. With a strong emphasis on durability, corrosion resistance, and dimensional accuracy, Emilio Stainless delivers products that promise long-lasting service even in tough environments. Our Stainless Steel 316Ti Forged Fittings come in a variety of sizes, types, and specifications, ensuring they cater to a wide range of industrial applications while meeting international quality standards.
These fittings are primarily made from chromium, nickel, and molybdenum, with titanium added to enhance resistance to sensitization and corrosion. The material boasts excellent mechanical strength, toughness, and creep resistance, even at higher temperatures. It has a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with impressive elongation and hardness properties. These fittings maintain exceptional stability and resistance to oxidation, making them perfect for use in harsh and corrosive settings.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316TI UNS (S31635), DIN (1.4571)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We tested and certified Stainless Steel 316Ti Forged Fittings. All the products are inspected, including dimensional checks, material analysis, and strength testing. Every product is certified to international standards, ensuring high performance, durability, and reliability for critical applications in different industries.

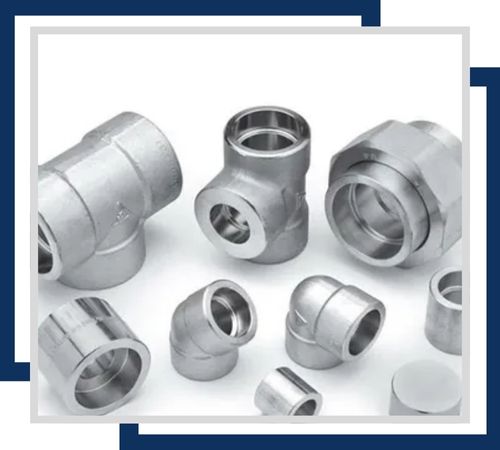

Ideal for high-temperature applications, these fittings offer excellent corrosion resistance and are typically available in sizes ranging from 1/2″ to 4″. They are used in industries like chemical processing and oil refineries.

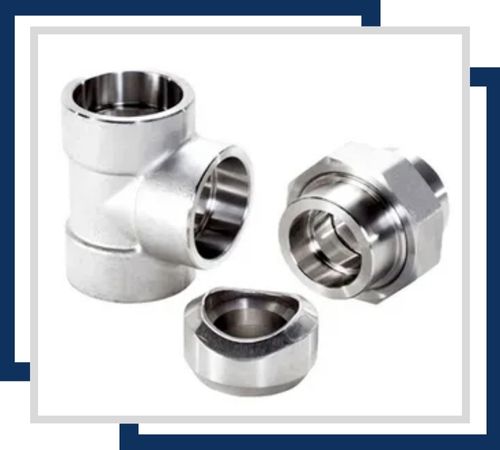

Known for superior corrosion resistance, especially against sulfuric and phosphoric acids, these fittings come in various sizes from 1/8″ to 4″. They are commonly used in marine and industrial environments.

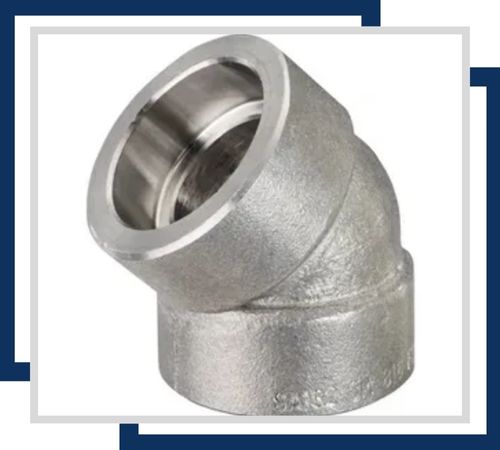

This elbow fitting allows for a smooth 45-degree change in pipe direction and is available in sizes from 1/2″ to 6″. It provides excellent resistance to corrosion and is used in high-pressure applications.

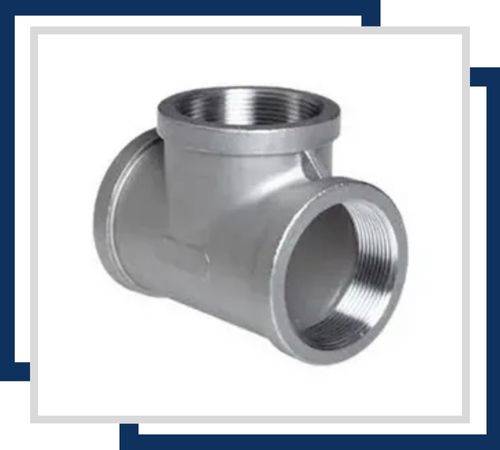

This tee fitting allows for branching out of the main pipe, available in sizes from 1/2″ to 6″. It offers exceptional resistance to corrosion and is used in a variety of piping systems.

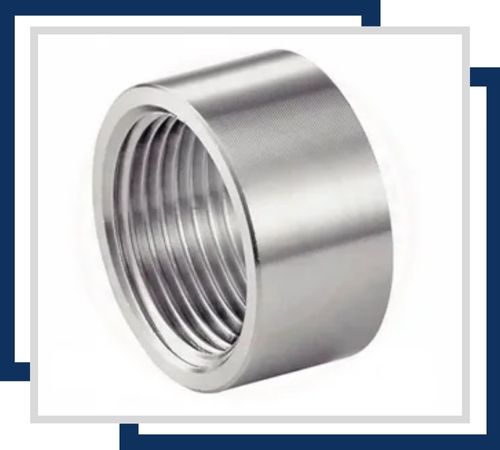

Used to connect two pieces of pipe, this half coupling is available in sizes ranging from 1/4″ to 6″. It is highly resistant to corrosion and suitable for high-temperature environments.

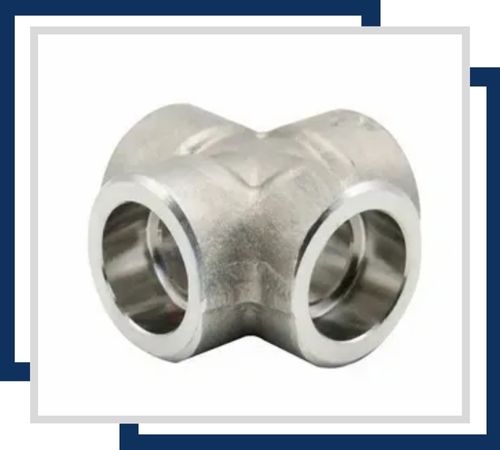

This fitting provides a cross junction, available in sizes from 1/2″ to 4″. It ensures high resistance to corrosion and is used in complex piping arrangements.
Stainless Steel 316Ti Forged Fittings are commonly utilized in industries that demand superior heat and corrosion resistance, such as chemical processing, pharmaceuticals, oil and gas, and marine engineering. They’re also great for applications in food processing, power generation, and heat exchangers. Their ability to endure acidic and chloride-rich environments makes them incredibly reliable in piping systems that come into contact with aggressive chemicals. These fittings guarantee leak-free and secure connections in both high-pressure and high-temperature situations, ensuring long-lasting performance and operational safety.
