Emilio Stainless, located in Manila, Philippines, is a reliable manufacturer and supplier of top-notch Stainless Steel 310H Forged Fittings. Designed for high-temperature and demanding industrial environments, these forged fittings offer outstanding corrosion resistance, oxidation resistance, and impressive mechanical strength. The 310H grade, which has a higher carbon content than 310, provides enhanced tensile strength and heat resistance, making it perfect for high-pressure and high-temperature piping systems. Emilio Stainless utilizes advanced forging techniques and rigorous quality control to guarantee precise dimensions, consistent quality, and long-lasting performance. These fittings ensure secure, leak-proof, and durable connections in critical industrial applications.
Stainless Steel 310H Forged Fittings consist of 24–26% chromium, 19–22% nickel, and a carbon content ranging from 0.08–0.25%, along with trace amounts of manganese, silicon, and phosphorus. This austenitic stainless steel boasts a tensile strength of 620–760 MPa, a yield strength of about 275–310 MPa, and remarkable ductility and toughness. The increased carbon content boosts high-temperature strength while preserving corrosion and oxidation resistance. These forged fittings are not only dimensionally precise but also mechanically robust and heat-resistant, making them ideal for high-pressure, high-temperature industrial, chemical, and petrochemical piping systems.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.

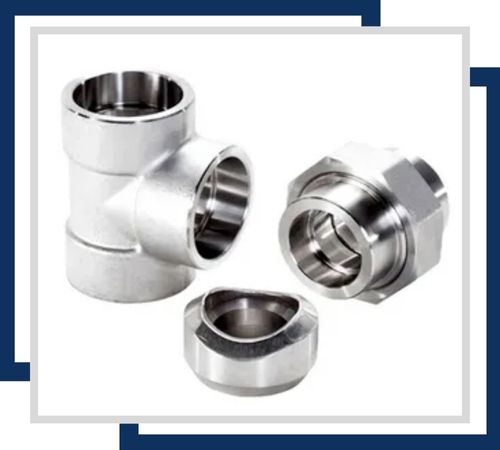

Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.

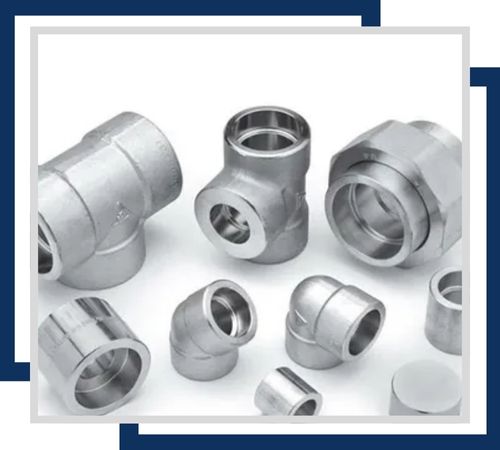

Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.

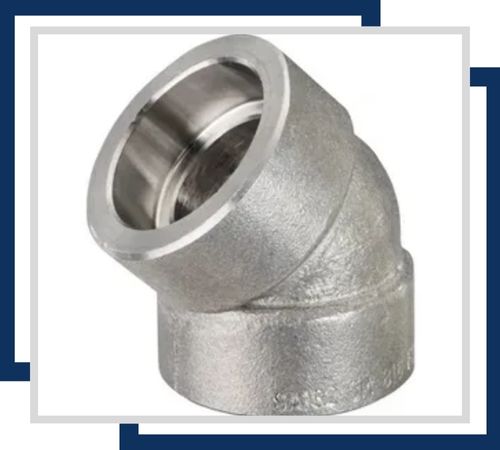

This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.

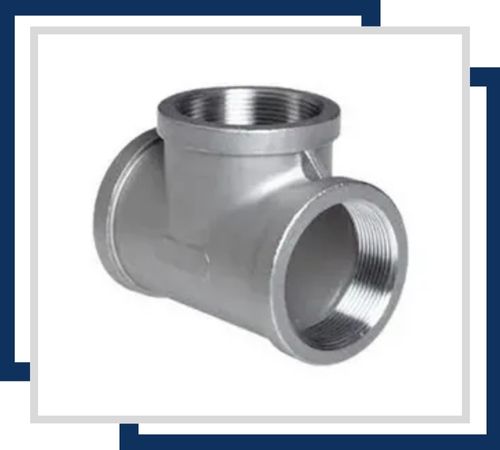

Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.

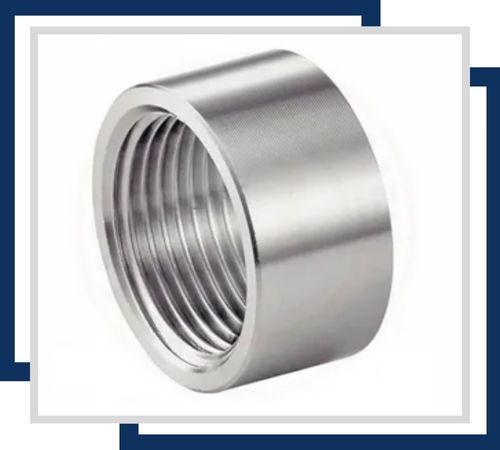

Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.

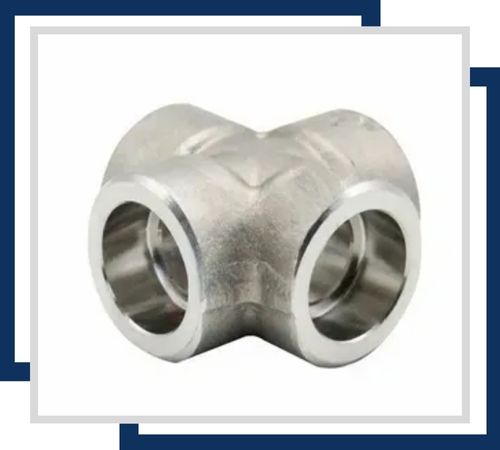

With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
Stainless Steel 310H Forged Fittings find extensive use in chemical processing plants, petrochemical industries, power generation, and various high-temperature industrial systems. They are perfect for connecting pipelines in boilers, heat exchangers, furnace lines, and exhaust systems, where corrosion resistance, heat tolerance, and mechanical strength are essential. These forged fittings deliver strong, durable, and leak-proof connections for industrial, engineering, and high-temperature piping applications.
