Emilio Stainless, a top-notch manufacturer and supplier located in Manila, Philippines, specializes in high-quality Stainless Steel 316/316L Forged Fittings that are perfect for tough industrial applications. These fittings are celebrated for their outstanding corrosion resistance, durability, and strength, whether in extreme heat or cold. The 316/316L grade offers exceptional protection against pitting and crevice corrosion, particularly in environments rich in chloride and marine settings. Emilio Stainless provides a diverse selection of forged fittings, including elbows, tees, couplings, unions, and caps. Each product is meticulously engineered to guarantee reliable performance, leak-free connections, and a long lifespan.
Stainless Steel 316/316L Forged Fittings are made up of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The low carbon content in 316L helps reduce carbide precipitation during welding, which keeps corrosion resistance at its best. These fittings boast a tensile strength of around 515 MPa and a yield strength of about 205 MPa, ensuring they can withstand pressure while remaining tough. Molybdenum boosts resistance to pitting and scaling, while nickel enhances formability and weldability. Together, the 316 and 316L grades offer a fantastic blend of strength, flexibility, and resistance to harsh chemical environments.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316 / 316L UNS (S31600, S31603), DIN (1.4401 / 1.4436, 1.4404 / 1.4435)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316/ | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 1399 °C (2550 °F) |
Contact us to get a quick quote for your requirement.
We ensures Stainless Steel 316/316L Forged Fittings of the highest quality. The products that leave our portal are all tested dimensionally, mechanically and chemically so as to guarantee performance and durability. We provide complete certifications in the form of material certificates and testing reports. All those cross international standards for all our customers’ satisfaction.

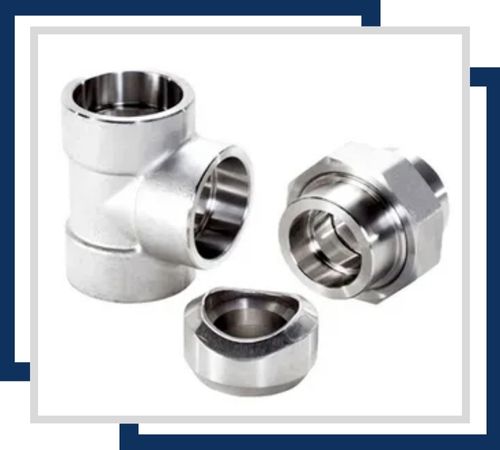

These fittings are available in various sizes, typically from 1/8″ to 4″ in diameter. They are designed for high-pressure applications and provide excellent resistance to corrosion, especially in marine environments.

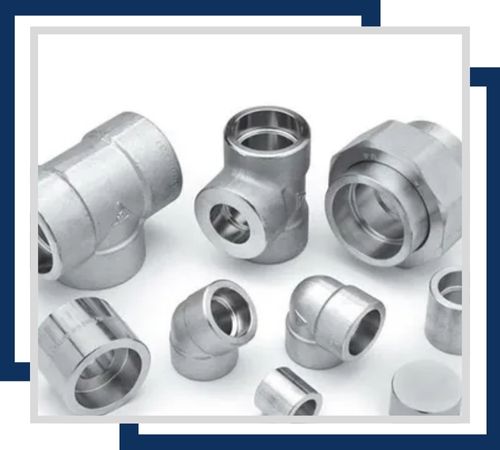

Threaded fittings come in sizes ranging from 1/8″ to 6″. They offer superior corrosion resistance and are ideal for use in aggressive environments such as chemical processing and marine applications.

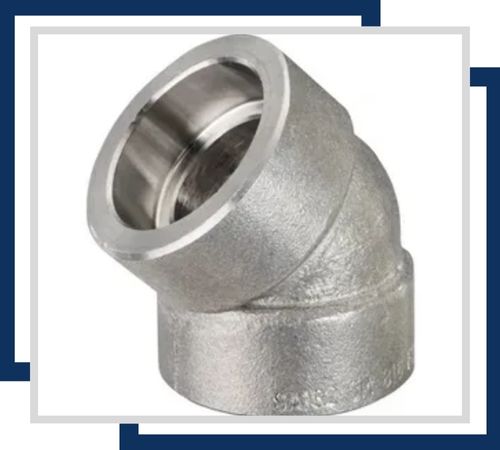

This elbow fitting is commonly available in sizes from 1/2″ to 4″. It facilitates smooth flow changes and resists corrosion effectively, making it suitable for high-pressure and high-temperature systems.

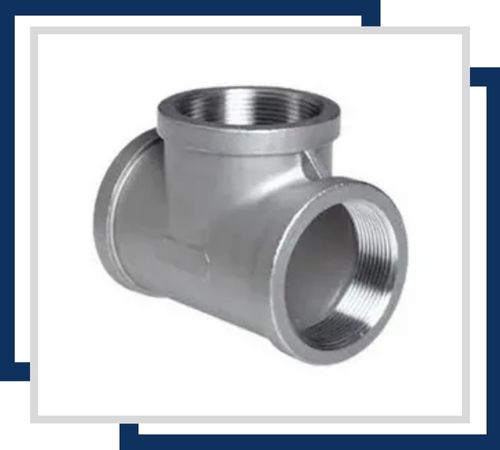

Threaded tees are available in sizes ranging from 1/8″ to 6″. They are used to connect three pipes at a junction and offer excellent resistance to corrosion and high temperatures.

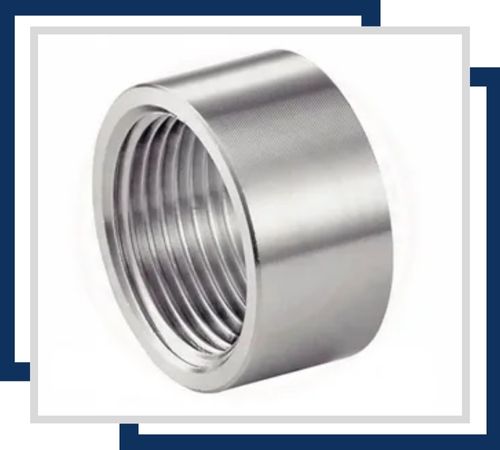

This fitting is typically available in sizes from 1/8″ to 4″. It is used to connect a pipe to another fitting or equipment and provides high resistance to corrosion and wear.

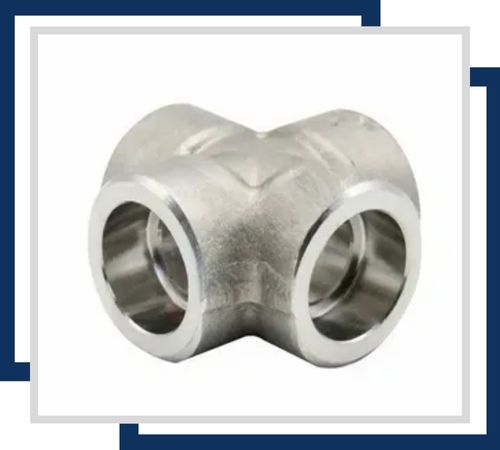

Available in sizes from 1/2″ to 4″, the socket weld cross is used to connect four pipes at right angles. It offers excellent corrosion resistance and is suitable for high-pressure applications.
Stainless Steel 316/316L Forged Fittings find their place in various industries, including chemical processing, food and beverage, pharmaceuticals, oil and gas, and marine engineering. Their impressive corrosion resistance and ability to endure high pressure make them ideal for pipelines, heat exchangers, condensers, and pressure vessels. These fittings excel in environments that are exposed to moisture, saltwater, and acidic chemicals. Emilio Stainless guarantees that every forged fitting adheres to international standards for precision and quality, delivering leak-proof and durable connections that enhance safety and reliability.
