Emilio Stainless stands out as a reliable manufacturer and supplier of Stainless Steel 904L forged fittings, right in the heart of Manila, Philippines. With a strong focus on quality and precision, Emilio Stainless delivers corrosion-resistant forged fittings that are built to handle the tough demands of critical applications in challenging environments. Thanks to their advanced manufacturing techniques and rigorous quality control, every 904L forged fitting they produce boasts impressive strength, reliability, and durability. Serving a diverse range of industries, Emilio Stainless has earned a reputation as a go-to source for high-performance stainless steel forged fittings in the Philippine market.
The Stainless Steel 904L forged fittings crafted by Emilio Stainless are made from a low-carbon, high-alloy austenitic stainless steel that features elevated levels of chromium (19–23%), nickel (23–28%), molybdenum (4–5%), and copper (1–2%). This unique blend provides outstanding resistance to strong reducing acids, especially sulfuric acid, while also preventing issues like stress corrosion cracking, pitting, and crevice corrosion. These fittings are celebrated for their high mechanical strength, excellent weldability, and top-notch performance in extreme chemical and saline environments, making them perfect for demanding industrial applications.
| Standards | ASTM B649 / ASME SB649 |
| Specifications | ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | NPS 1/8″- 4″ (DN 6~100) |
| Rating Pressure | Threaded End – 2000/3000/6000 LBS. Socket weld End – 3000/6000/9000 LBS. |
| Type | Socket Weld, Screwed, BSP Threaded & NPT Threaded |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 904L | min. | – | – | – | – | – | 19.0 | 4.00 – 5.00 | 23.00 | – |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 28.00 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 75 | – |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 904L forged fittings, rigorously testing them for durability, strength and corrosion resistance. Each fitting undergoes extensive quality control procedures and is certified to appropriate industry standards. Certifications such as material testing reports (MTRs) and third-party reviews ensure reliability and efficiency.

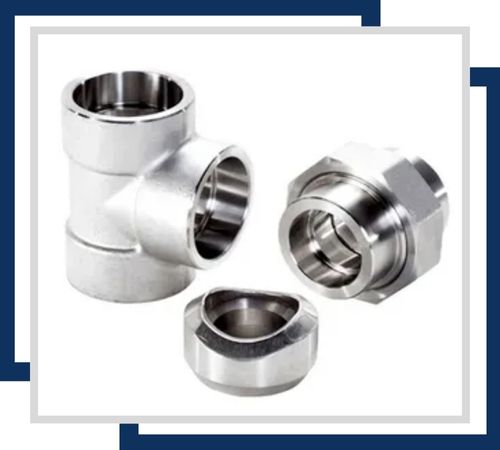

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.

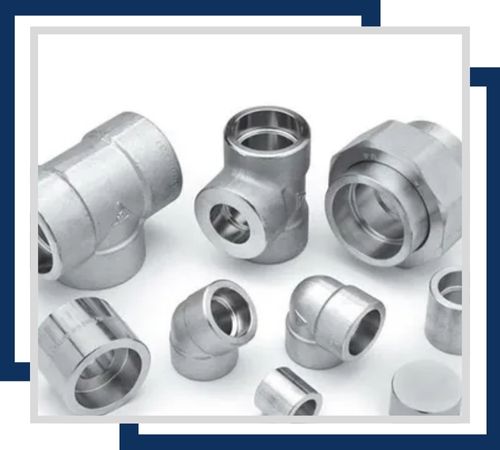

Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.

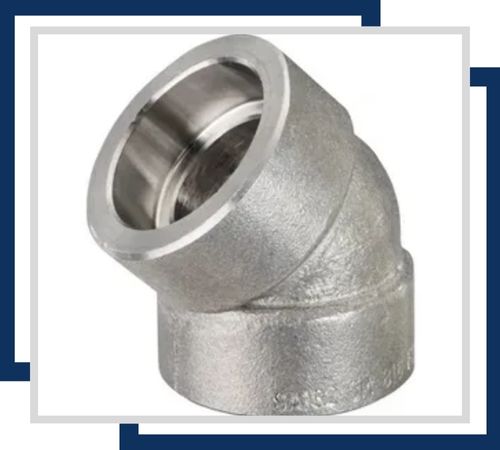

These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

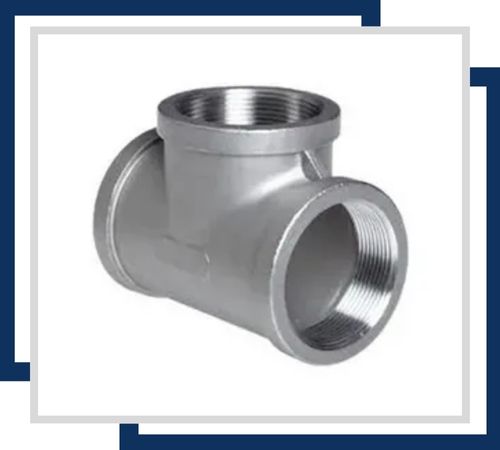

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

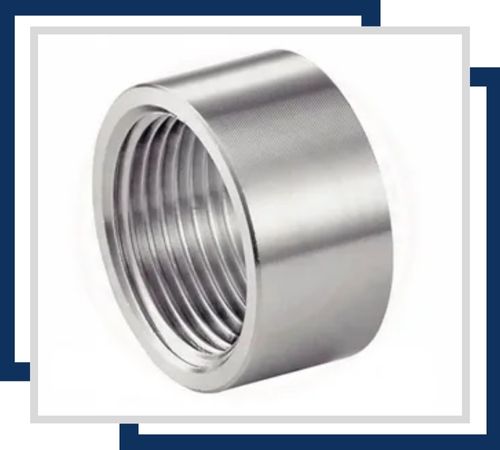

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

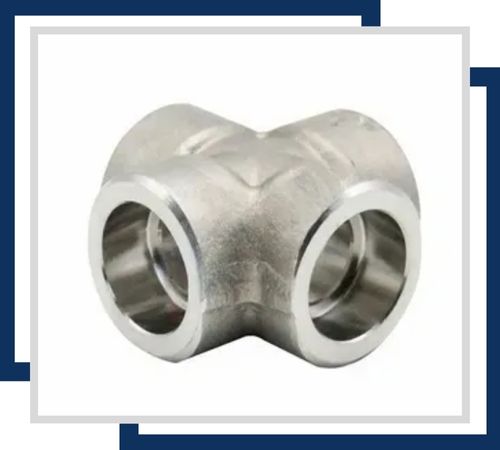

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Emilio Stainless’s Stainless Steel 904L forged fittings find their place in various industries, including chemical processing, oil and gas, marine, power generation, and pharmaceuticals. They are commonly used in high-pressure piping systems, heat exchangers, condensers, and flow control systems where long-lasting corrosion resistance is crucial. Designed to ensure secure and leak-proof connections, these forged fittings deliver exceptional performance in situations where standard stainless steel grades might not hold up. Emilio Stainless guarantees that each fitting meets international standards, providing peace of mind to their clients.
