Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, with a focus on high-quality Stainless Steel 317/317L Forged Fittings. Known for their precision engineering and exceptional durability, these fittings are crafted to meet the rigorous demands of various industrial applications. Emilio Stainless provides a comprehensive range of forged fittings that guarantee outstanding corrosion resistance, strength, and performance, even in the toughest environments. With a commitment to quality assurance and customer satisfaction, the company offers reliable and cost-effective solutions for industries like chemical processing, oil and gas, power generation, and marine engineering.
The Stainless Steel 317/317L Forged Fittings are primarily made up of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), which gives them enhanced resistance to corrosion and pitting. The 317L variant features lower carbon content, minimizing the risk of carbide precipitation during welding. These fittings boast a high tensile strength of about 515 MPa, a yield strength of 205 MPa, and impressive elongation and toughness. They maintain their stability and mechanical integrity at elevated temperatures, making them ideal for aggressive chemical and high-pressure environments.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 317 / 317L UNS (S31700, S31703), DIN (1.4449, 1.4438)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317/317L forged fittings go through rigorous testing procedures, including dimensional testing, mechanical testing and corrosion resistance testing. The products are certified to meet international quality standards, including ASTM, ASME, and EN specifications, providing customers with guaranteed reliability and performance for a range of industrial applications

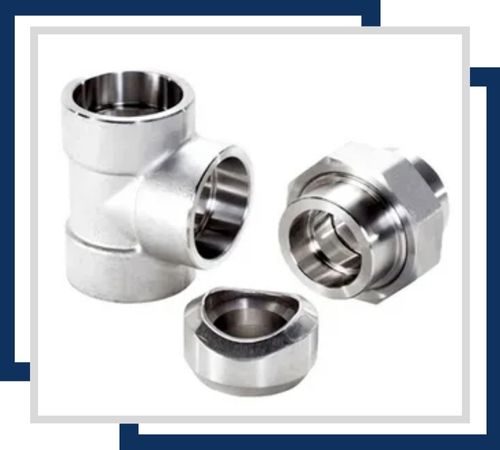

Stainless Steel 317 Socket Weld Fittings are renowned for their excellent corrosion resistance and are commonly used in high-pressure applications. They are available in sizes ranging from 1/8″ to 4″ and are manufactured to meet ASTM standards, ensuring strong, leak-proof connections.

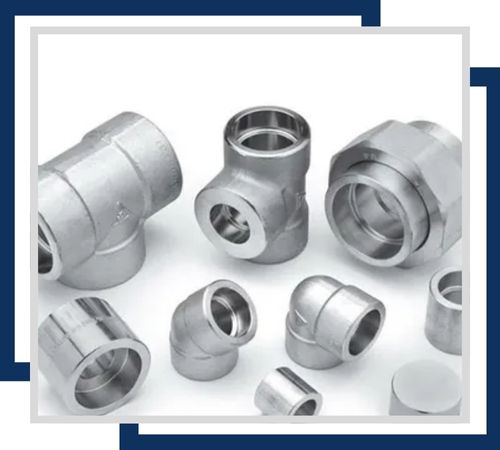

Offering high corrosion resistance, these fittings are designed for easy installation in various piping systems. Common sizes range from 1/8″ to 6″ NPT, providing versatility and robustness in handling fluids and gases.

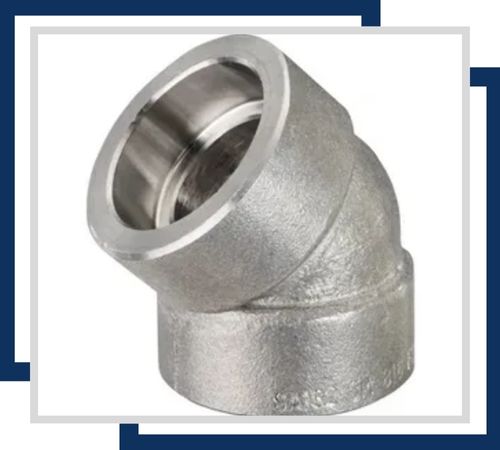

With superior corrosion resistance, this elbow allows for smooth directional changes in piping systems. It is available in sizes from 1/2″ to 4″ and is designed to meet ASTM specifications for high strength and durability.

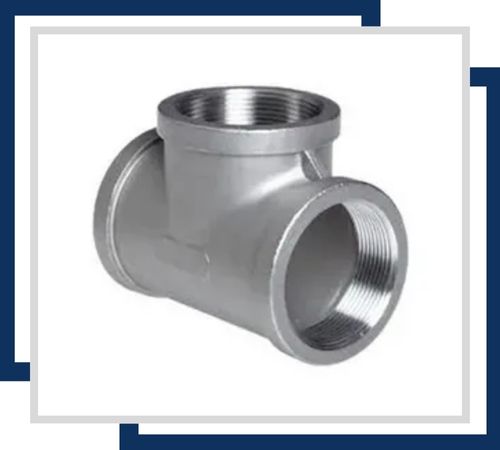

This fitting combines high corrosion resistance with structural integrity, ideal for branching pipes at a 90-degree angle. Available in sizes from 1/8″ to 6″ NPT, it ensures reliable and secure connections.

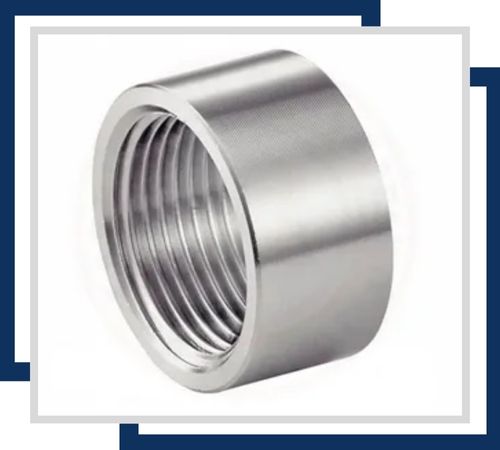

Known for its excellent corrosion resistance, this half coupling connects two threaded pipes or fittings. Common sizes include 1/4″ to 4″ NPT, providing a strong and durable link.

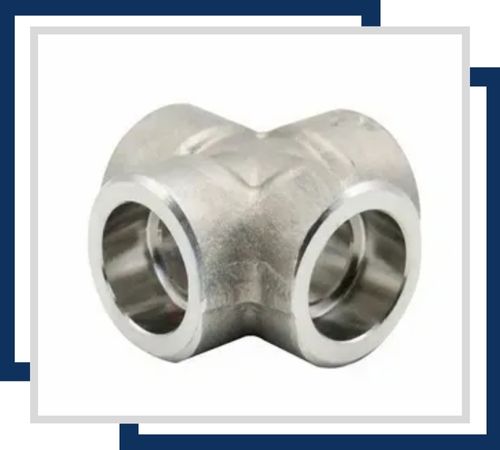

This cross-fitting offers exceptional corrosion resistance, enabling the intersection of four pipes. Sizes typically range from 1/2″ to 4″, adhering to ASTM standards for robustness and reliability in high-pressure applications.
Stainless Steel 317/317L Forged Fittings are extensively utilized in industries that demand superior corrosion and oxidation resistance. They are perfect for chemical processing, petrochemical plants, pulp and paper industries, food processing, and pharmaceutical applications. Their high strength and ability to withstand acidic and chloride-rich conditions make them suitable for marine and offshore structures. Additionally, these fittings are commonly found in heat exchangers, condensers, and piping systems that handle corrosive fluids. Their versatility, weldability, and durability ensure dependable performance and longevity in critical industrial operations.
