Emilio Stainless, based in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality Stainless Steel 316H Forged Fittings. These fittings are specifically crafted for high-pressure and high-temperature piping systems, where strength, durability, and resistance to corrosion are crucial. The 316H grade is a high-carbon version of 316 stainless steel, offering improved strength and creep resistance at elevated temperatures. At Emilio Stainless, precision engineering and strict quality control ensure that their forged fittings are leak-proof, durable, and dimensionally accurate. They come in various types, including elbows, tees, couplings, unions, and caps, perfect for industrial applications.
Stainless Steel 316H Forged Fittings are made up of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a higher carbon content (up to 0.10%) compared to the 316/316L grades. This unique composition boosts strength and enhances resistance to oxidation and creep at high temperatures. These fittings boast a tensile strength of around 515 MPa and a yield strength of about 205 MPa, along with impressive toughness and hardness. The molybdenum content offers exceptional resistance to chloride corrosion and pitting, making them perfect for harsh chemical and marine environments.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for our stainless steel 316H lattice fittings through rigorous testing and certification. Each device undergoes extensive testing, including tensile, hardness and corrosion resistance tests. We offer certificates of compliance, ensuring our fittings meet international industry standards for reliability and performance.

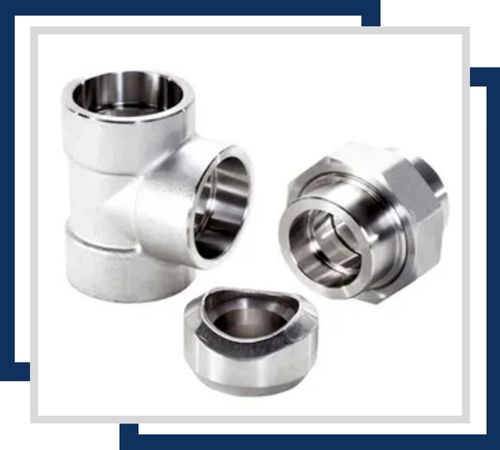

Corrosion-resistant and highly durable, Stainless Steel 316H Socket Weld Fittings are used for high-pressure applications. Sizes typically range from 1/4″ to 4″ in diameter. These fittings are designed for a strong, leak-proof connection in piping systems.
Offering excellent resistance to corrosion and high temperatures, Stainless Steel 316H Threaded Fittings are ideal for various industrial applications. They come in sizes from 1/8″ to 6″. These fittings provide easy installation and maintenance with threaded connections.

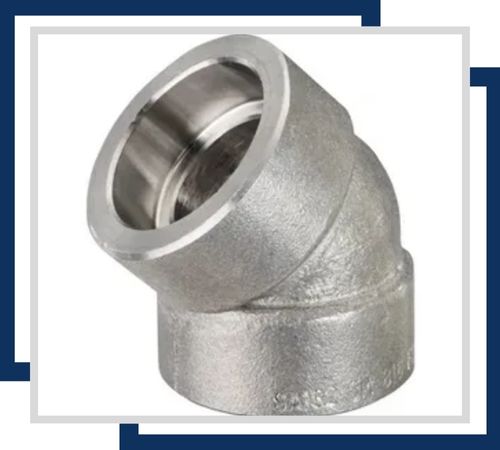

The Stainless Steel 316H Socket Weld 45 Degree Elbow combines corrosion resistance with high strength, allowing smooth changes in direction. Typically available in sizes from 1/4″ to 4″, it ensures reliable performance under high-pressure conditions.

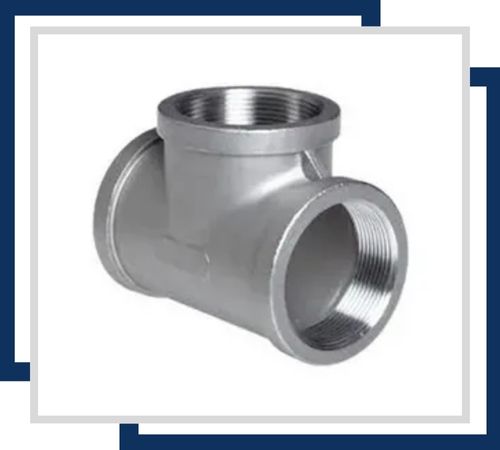

Featuring excellent resistance to corrosion and high durability, the Stainless Steel 316H Threaded Tee is used to connect and branch pipes. Sizes generally range from 1/4″ to 6″. It facilitates fluid flow in multiple directions efficiently.
The Stainless Steel 316H Threaded Half Coupling provides strong corrosion resistance and is used to connect two sections of pipe. Available in sizes from 1/8″ to 4″, it offers easy installation and robust performance in various applications.

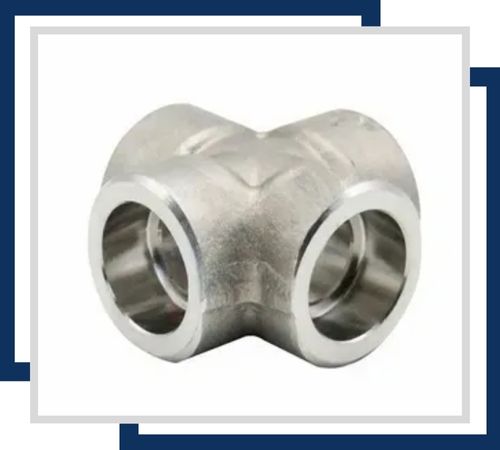

Known for its superior corrosion resistance, the Stainless Steel 316H Socket Weld Cross is used to connect multiple pipe lines. It comes in sizes from 1/4″ to 4″ and provides a reliable, high-strength connection suitable for complex piping systems.
Stainless Steel 316H Forged Fittings find their place in various industries that require top-notch performance under extreme conditions. You’ll commonly see them in heat exchangers, boilers, condensers, power plants, oil and gas refineries, and petrochemical sectors. They’re also well-suited for marine environments, chemical processing facilities, and pressure vessel systems. Thanks to the high-carbon content, these fittings maintain excellent strength at elevated temperatures, while the added molybdenum protects against pitting and crevice corrosion. Emilio Stainless provides these forged fittings in a range of pressure classes and configurations, ensuring reliable performance across the board.
