Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, specializing in high-performance stainless steel products like Stainless Steel 304H Tubing. The company prides itself on its commitment to quality, precision, and customer satisfaction, ensuring that every product meets international standards for strength, durability, and resistance to corrosion. Emilio Stainless offers Stainless Steel 304H Tubing that’s specifically crafted for high-temperature and high-pressure applications, guaranteeing reliable performance and a long service life even in tough industrial settings.
Stainless Steel 304H Tubing is crafted from a high-carbon variant of the austenitic stainless steel 304 alloy, which includes 18–20% chromium, 8–10.5% nickel, and a higher carbon content (0.04–0.10%). This unique composition boosts high-temperature strength and creep resistance while still providing excellent corrosion resistance. The material boasts a tensile strength of around 515–750 MPa and impressive oxidation resistance up to 870°C. Plus, Stainless Steel 304H maintains remarkable toughness, ductility, and formability, even when faced with thermal and mechanical stress.
| Alloy 304H Standards | Stainless Steel 304H |
|---|---|
| ASTM A213 Stainless Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| ASTM A249 TP 304H Stainless Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| ASTM A269 TP 304H Stainless Steel Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| ASME SA213 TP 304H Stainless Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| SS 304H Length | Single Random, Double Random, Standard & Cut length Tube |
| UNS S30409 Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| ASTM A213 Gr. TP304H Form | ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| ASTM A269 TP 304H Stainless Steel Type | Seamless, ERW, EFW, Welded, Fabricated Tube |
| ASTM A213 Stainless Steel End | Plain End, Beveled End, Treaded Tube |
| ASME SA213 SS 304H Marking | All 304h Stainless Steel Tube are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| ASME SA213TP 304H Stainless Steel Application | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| 304H SS Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Stainless Steel 304H Specialize in | Stainless Steel 304H Capillary Tube & Other Odd Size Alloy 304H Heat Exchanger & Condenser Tube |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.
We assures that all its Stainless Steel 304H Tubing is thoroughly tested for quality and performance. Mechanical properties, corrosion resistance, and dimensional accuracy of the tubing are tested. The following certificates are also provided: Material Test Reports (MTR), 3.1 certificates, and ISO compliance, ensuring industry standards and reliability.

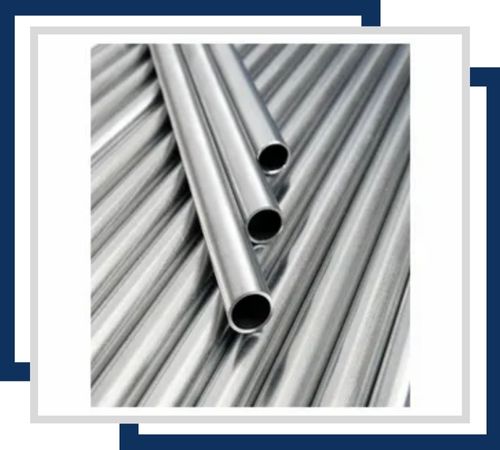

These tubes offer superior corrosion resistance, ideal for high-pressure applications. Sizes typically range from 1/8″ to 24″ in diameter. They provide excellent durability and are used in industries requiring precise tolerances.
Known for its excellent corrosion resistance, this tubing is available in sizes from 1/8″ to 24″. It’s cost-effective for less critical applications and offers good strength and flexibility for various uses.

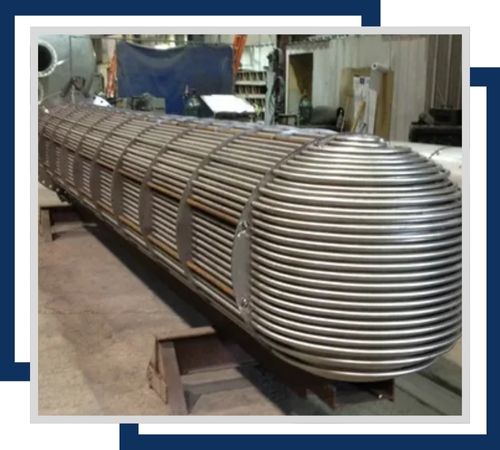

These tubes excel in corrosion resistance and thermal conductivity. Common sizes range from 1/2″ to 1-1/2″ in diameter, designed for efficient heat transfer in industrial applications.

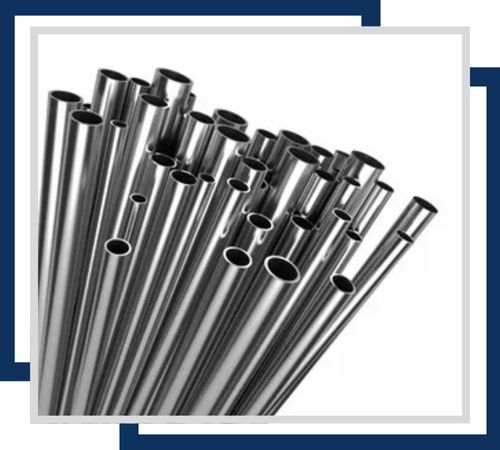

Providing high corrosion resistance, these tubes are typically available in sizes from 1/16″ to 2″. They are crucial for precise instrumentation and control systems in various industries.

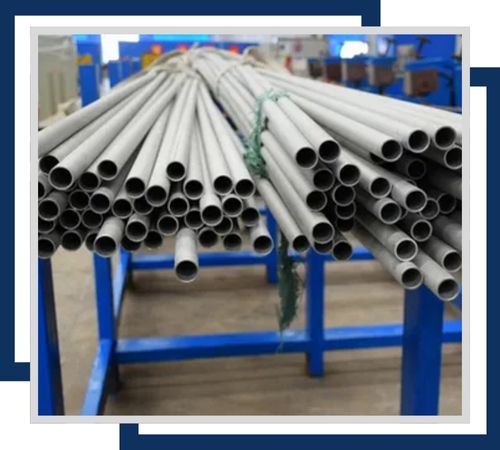

These corrosion-resistant tubes come in sizes typically from 1/2″ to 5″ in diameter. They are designed to withstand high temperatures and pressures in boiler systems.

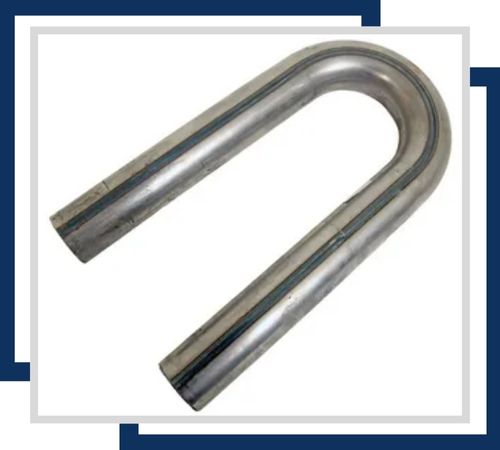

Featuring high corrosion resistance, these U-shaped tubes are available in sizes from 1/2″ to 1-1/2″. They are commonly used in heat exchangers and condensers for efficient thermal management.

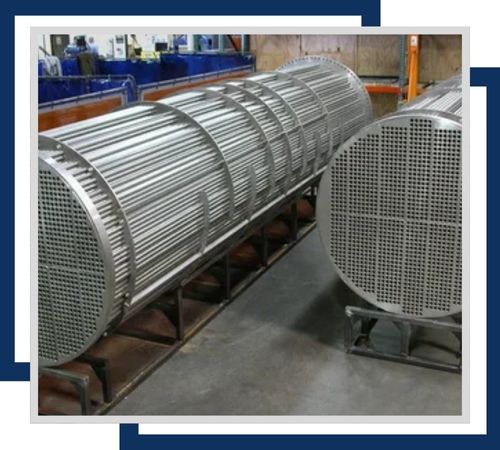

Known for its superior corrosion resistance, this tubing ranges from 3/8″ to 1-1/4″ in diameter. It’s used in condensers to efficiently transfer heat and condense steam into water.

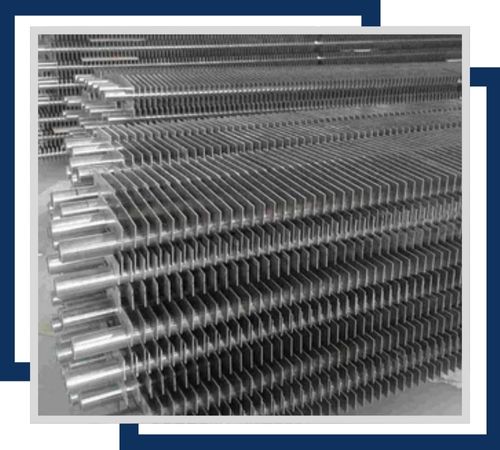

These tubes offer excellent corrosion resistance and are available in sizes typically from 1/2″ to 1-1/2″. They are used in applications requiring enhanced heat transfer efficiency due to their extended surface area.
You’ll find Stainless Steel 304H Tubing widely utilized across various industries, including power generation, petrochemical, chemical processing, oil and gas, and heat exchanger manufacturing. It’s perfect for high-temperature piping systems, boilers, heat exchangers, and superheater tubes. With its outstanding strength and resistance to scaling, it’s well-suited for continuous exposure to high temperatures. Stainless Steel 304H Tubing delivers exceptional durability, mechanical stability, and corrosion resistance, making it the go-to choice for critical applications where performance and reliability are paramount.
