Emilio Stainless is a well-respected manufacturer and supplier located in Manila, Philippines, with a focus on high-quality Stainless Steel 316 Tubing. This tubing is celebrated for its exceptional corrosion resistance, strength, and smooth finish, making it a go-to choice in industries that require durability and top-notch performance in tough conditions. Emilio Stainless takes pride in ensuring that every tube adheres to international standards through meticulous manufacturing and quality control. Stainless Steel 316 Tubing is perfect for the chemical, marine, and pharmaceutical sectors, providing outstanding reliability, a long service life, and consistent performance even in high-temperature and corrosive environments.
Stainless Steel 316 Tubing is mainly composed of iron, along with 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which significantly boost its resistance to corrosion and pitting from chlorides. It boasts a tensile strength of around 515 MPa, a yield strength of 205 MPa, and impressive elongation properties. This tubing remains tough even in sub-zero temperatures and shows remarkable resistance to oxidation and scaling. Its excellent weldability and formability make it easy to work with, while the smooth internal surface promotes efficient fluid flow and minimizes contamination risks.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A213 / ASTM SA213
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubing
| SS | 316 |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Contact us to get a quick quote for your requirement.
We offers high quality stainless steel 316 tubing, rigorously tested for durability, corrosion resistance and accuracy. Each tube undergoes extensive testing, including mechanical and chemical analysis, to ensure it meets industry standards. Certificates of conformity (CoC) are issued, confirming that products meet all specified requirements for performance and safety.
This tubing is available in sizes ranging from 1/8″ to 12″ in diameter and is known for its excellent corrosion resistance, particularly in marine and chemical environments. The seamless construction ensures high strength and reliability.
Typically offered in sizes from 1/4″ to 8″ in diameter, this tubing is fabricated by welding stainless steel sheets. It provides good corrosion resistance, making it suitable for structural applications and chemical processing.
Designed for heat exchange applications, this tubing generally comes in sizes from 1/2″ to 2″ in diameter. It boasts superior corrosion resistance and thermal conductivity, ideal for use in heat exchangers and condensers.
Available in sizes from 1/16″ to 1″ in diameter, this tubing is used in high-pressure and precision applications. It offers excellent resistance to corrosion and is ideal for instrumentation and process control systems.
Typically found in sizes from 1″ to 5″ in diameter, these tubes are designed for high-temperature and high-pressure environments. They provide strong corrosion resistance and durability for boiler systems.
Used in heat exchangers and other applications requiring a U-shaped tube, sizes range from 1/2″ to 4″ in diameter. They offer high resistance to corrosion and are designed for effective thermal performance.

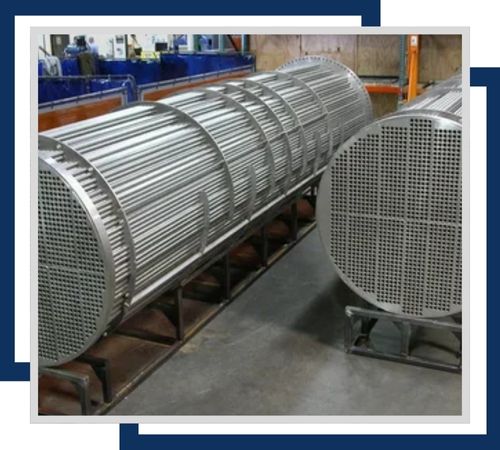

This type comes in sizes from 1/2″ to 2″ in diameter and is used in condensers for its excellent corrosion resistance and durability in cooling applications. Ideal for heat transfer and cooling systems.

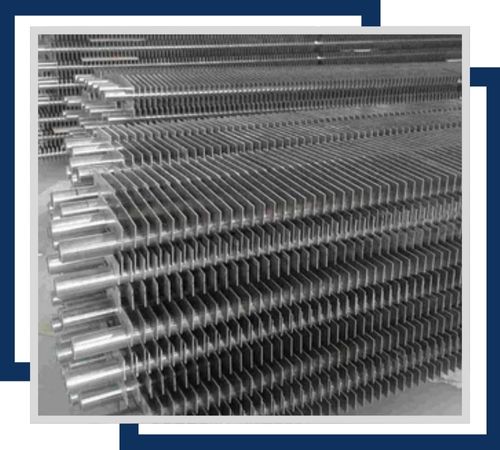

Typically available in diameters from 1/2″ to 2″, these tubes have fins attached to enhance heat transfer efficiency. They are highly resistant to corrosion and are used in heat exchangers and other cooling systems.
Stainless Steel 316 Tubing finds extensive use across various industries, including chemical processing, oil and gas, food and beverage, and pharmaceuticals. It’s particularly suited for applications that involve exposure to moisture, acids, and saline conditions, such as heat exchangers, condensers, and marine equipment. In the medical and pharmaceutical sectors, it’s utilized for fluid transfer, sterile systems, and instrumentation. Moreover, this tubing is also used in architectural structures, water treatment facilities, and automotive systems, thanks to its blend of strength, corrosion resistance, and appealing appearance.
