Emilio Stainless is a well-respected manufacturer and supplier located in Manila, Philippines, with a focus on high-quality Stainless Steel 416 Tubing. The company is celebrated for its precision engineering and outstanding performance, consistently delivering products that adhere to the highest international standards. Each tubing product from Emilio Stainless is crafted to ensure exceptional strength, durability, and machinability, making it perfect for demanding industrial applications. With a strong commitment to quality assurance and innovation, Emilio Stainless has built a solid reputation for offering reliable and cost-effective stainless steel solutions across various industries, both in the Philippines and globally.
Stainless Steel 416 Tubing is primarily made up of chromium (12–14%), carbon (up to 0.15%), manganese, sulfur (0.15%), along with small amounts of silicon and phosphorus. This martensitic stainless steel grade is recognized for its excellent machinability, moderate resistance to corrosion, and impressive tensile strength. It boasts a tensile strength of about 620 MPa, a yield strength of 275 MPa, and good hardness after heat treatment, making it ideal for precision parts that require both strength and ease of machining.
| Grade | UNS | BS | BS | EN | EN | Swedish | Japanese |
| – | No. | EN | Name | SS | JIS | ||
| 416 | S41600 | 416S21 | 56AM | 1.4005 | X12CrS13 | 2380 | SUS 416 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 416 | min.max. | -0.15 | -1.25 | -1.00 | -0.060 | 0.15- | 12.0-14.0 | – | – |
| Tempering Temperature (°C) | Tensile Strength(MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
| Annealed * | 517 | 276 | 30 | 262 | – |
| Condition T ** | 758 | 586 | 18 | 248-302 | – |
| 204 | 1340 | 1050 | 11 | 388 | 20 |
| 316 | 1350 | 1060 | 12 | 388 | 22 |
| 427 | 1405 | 1110 | 11 | 401 | # |
| 538 | 1000 | 795 | 13 | 321 | # |
| 593 | 840 | 705 | 19 | 248 | 27 |
| 650 | 750 | 575 | 20 | 223 | 38 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 416 tubing through stringent testing and certification procedures. Each tube undergoes a thorough inspection, including dimensional testing, mechanical property testing and corrosion resistance evaluation. Certificates of compliance with traceability and quality reports are provided to ensure efficiency and reliability.

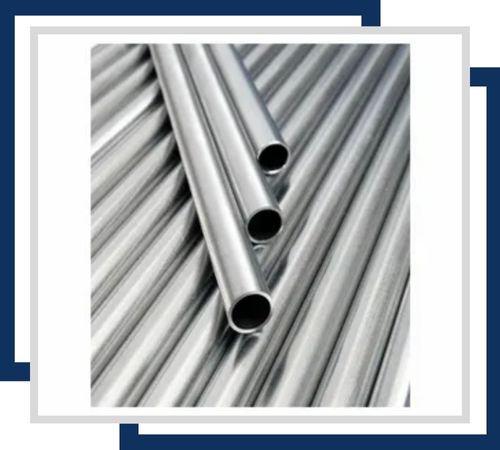

Available in sizes ranging from 0.25″ to 6″ outer diameter, 416 seamless tubing offers excellent corrosion resistance and machinability. Ideal for precision applications where smooth surfaces and dimensional accuracy are critical.
With dimensions typically ranging from 0.5″ to 24″ outer diameter, 416 welded tubing is corrosion-resistant and cost-effective for larger diameter applications. It is suitable for structural and non-critical fluid transfer purposes.

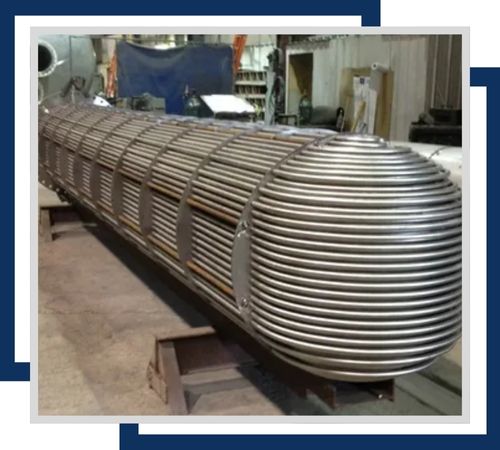

Available in sizes from 0.5″ to 2″ outer diameter, these tubes provide good corrosion resistance and thermal conductivity. They are used in heat exchangers where strength and durability are essential.

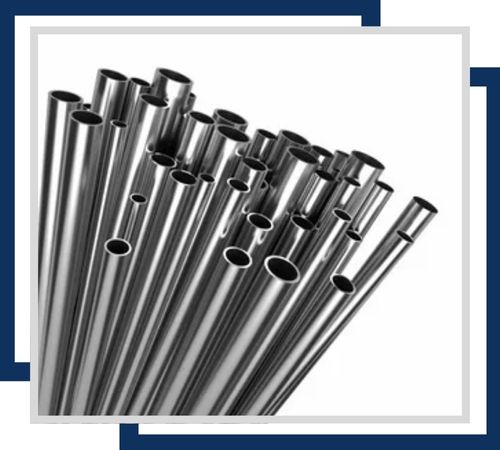

Ranging from 1/8″ to 1″ outer diameter, 416 instrumentation tubing offers excellent corrosion resistance and high strength. It is used in precise control and measurement applications in various industries.

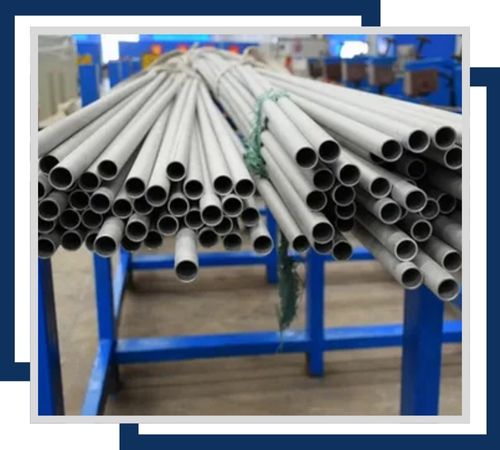

With sizes typically from 0.5″ to 5″ outer diameter, 416 boiler tubes provide excellent corrosion resistance and high-temperature performance. They are designed for use in steam boilers and other high-pressure environments.

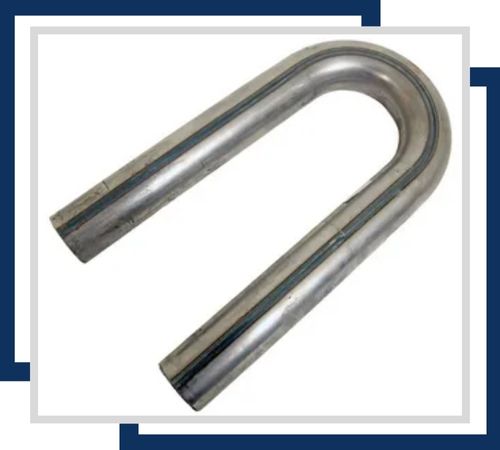

Available in dimensions from 0.5″ to 3″ outer diameter, 416 U-tubes are corrosion-resistant and ideal for heat exchangers where compact design and efficient heat transfer are required. Their U-shape allows for easier installation in tight spaces.
Ranging from 0.5″ to 2″ outer diameter, 416 condenser tubes offer good corrosion resistance and efficient heat transfer. They are used in condensers to cool steam and other fluids in power plants and industrial applications.
With sizes typically from 0.5″ to 3″ outer diameter, 416 fin tubes provide excellent corrosion resistance and enhanced heat transfer capabilities. They are used in heat exchangers and air coolers where maximizing surface area is critical for efficient operation.
The Stainless Steel 416 Tubing produced by Emilio Stainless is utilized across a variety of industries due to its remarkable machinability and mechanical properties. It’s commonly found in the production of valves, pump shafts, fasteners, gears, and motor shafts. Additionally, it plays a vital role in the automotive, aerospace, and mechanical engineering sectors, where high strength and precision are essential. Its ability to resist mild corrosive environments and maintain dimensional stability under stress makes it a fantastic choice for components that need to be both reliable and long-lasting in service.
