Emilio Stainless is a well-respected manufacturer and supplier located in Manila, Philippines, specializing in high-quality stainless steel products like Stainless Steel 305 Tubing. The company has built a solid reputation for its dedication to precision, quality, and ensuring customer satisfaction. They provide tubing solutions that adhere to international standards for strength and corrosion resistance. Emilio Stainless takes pride in delivering Stainless Steel 305 Tubing that offers outstanding performance, durability, and ease of fabrication, making it perfect for industries that demand both mechanical reliability and strong resistance to environmental challenges.
Stainless Steel 305 Tubing is crafted from an austenitic stainless steel alloy that contains 17–19% chromium, 8–10% nickel, and low carbon content, featuring slightly higher nickel levels than 304 to reduce work hardening during cold forming. This unique composition provides excellent corrosion resistance, good formability, and high ductility. The material boasts a tensile strength ranging from 515 to 690 MPa, offering remarkable resistance to oxidation and chemical attacks in various environments. Its non-magnetic properties in the annealed state make it ideal for specialized applications.
Type: Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Grades: TP304, TP304L, TP304H
Size: 1/8” NB to 5” NB, 1/4” OD to 5” OD sizes stainless steel seamless tubes also available
Length: Up to 6 meters, custom cut lengths
Thickness: 1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Finish: No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Pipes
Delivery Condition: Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived
| Element | Content (%) |
|---|---|
| Iron, Fe | 67 |
| Chromium, Cr | 18 |
| Nickel, Ni | 12 |
| Manganese, Mn | ≤ 2 |
| Silicon, Si | ≤ 1 |
| Carbon, C | 0.12 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 585 MPa | 84800 psi |
| Tensile strength, yield (@0.2%) | 260 MPa | 37700 psi |
| Modulus of elasticity | 193 GPa | 28000 ksi |
| Shear modulus | 86 GPa | 12500 ksi |
| Elongation at break (in 50 mm) | 50 | 50 |
| Hardness, Brinell | 80 | 80 |
| Hardness, Knoop (converted from Brinell hardness) | 97 | 97 |
| Hardness, Rockwell B (converted from Brinell hardness) | 45 | 45 |
| Hardness, Vickers (converted from Brinell hardness) | 82 | 82 |
Contact us to get a quick quote for your requirement.
We tests all Stainless Steel 305 Tubing to the international quality standard. Every batch is tested for composition, mechanical properties, and corrosion resistance. The company provides certification for material traceability that complies with ASTM, EN, and other relevant standards to ensure product excellence and reliability.

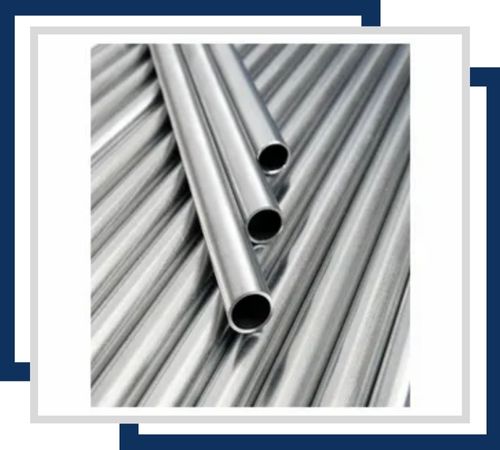

This tubing comes in a variety of sizes, typically ranging from 1/8″ to 4″ in diameter. Known for its exceptional corrosion resistance and smooth finish, it is ideal for applications requiring high durability and reliability.
Available in sizes from 1/4″ to 6″ in diameter, this tubing features a welded seam for structural strength. It offers excellent corrosion resistance and is commonly used in both industrial and architectural applications.

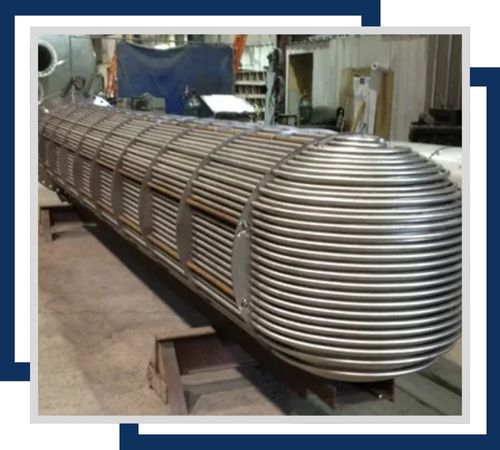

Designed for heat transfer efficiency, these tubes are generally sized from 1/2″ to 2″ in diameter. They exhibit high resistance to corrosion and are used in heat exchangers for various industrial processes.

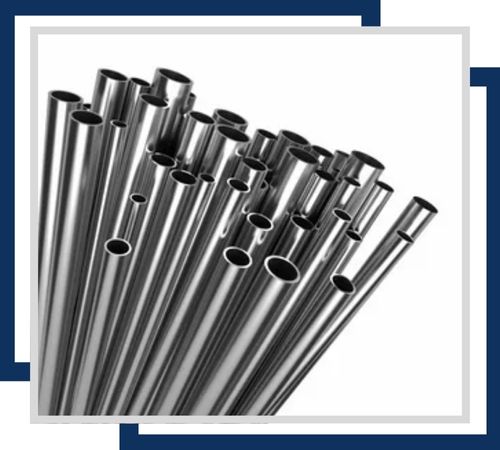

Stainless Steel 305 Instrumentation Tubing**: Available in sizes ranging from 1/16″ to 1/2″ in diameter, this tubing is designed for precise instrumentation applications. It offers superior corrosion resistance and is ideal for use in harsh environments and critical measurement systems.

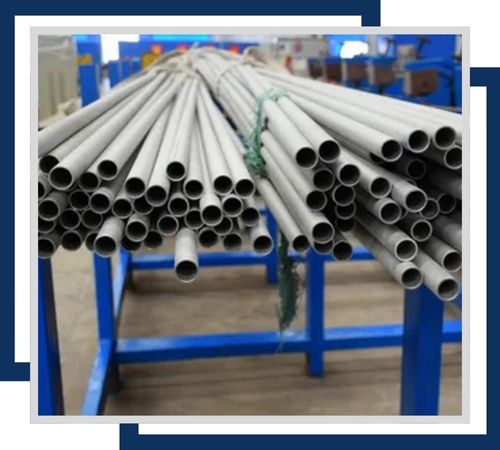

Typically available in sizes from 1″ to 4″ in diameter, these tubes are engineered to withstand high temperatures and pressures. They are highly corrosion-resistant and suitable for boiler systems.

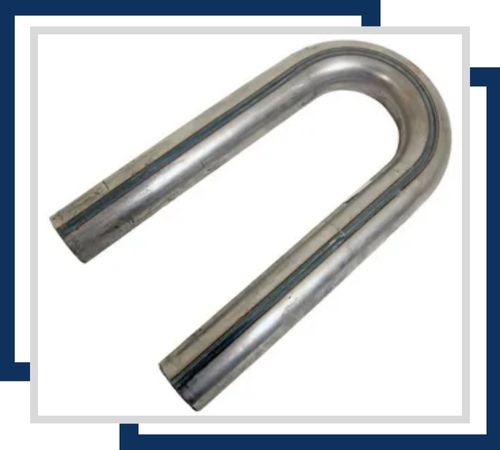

Usually ranging from 1/2″ to 2″ in diameter, these U-shaped tubes are designed for applications such as heat exchangers and condensers. They offer strong corrosion resistance and flexibility in heat transfer systems.

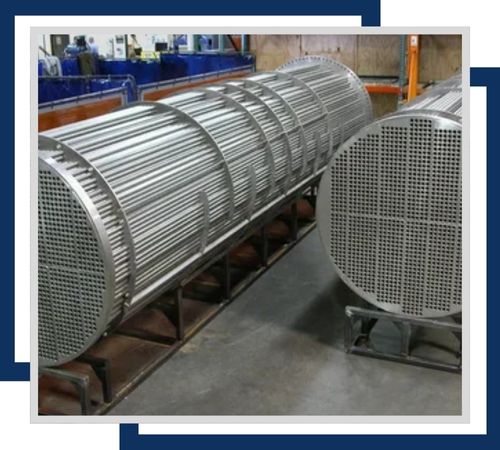

Available in sizes from 1/2″ to 3″ in diameter, these tubes are optimized for use in condensers. They provide excellent resistance to corrosion and scaling, making them ideal for high-performance cooling systems.

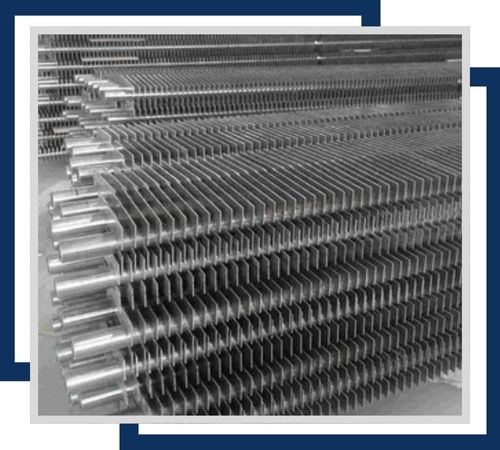

Typically sized from 1″ to 2″ in diameter, these tubes feature finned surfaces for enhanced heat transfer. They are highly resistant to corrosion and are used in various heat exchange and cooling applications.
You’ll find Stainless Steel 305 Tubing widely utilized across industries such as food processing, chemical manufacturing, aerospace, electronics, and architecture. It’s particularly suited for applications that require extensive cold forming, including deep-drawn parts, tubing for instrumentation, heat exchangers, and sanitary systems. With its impressive corrosion resistance and smooth surface finish, it’s also great for hygienic and decorative purposes. Stainless Steel 305 Tubing guarantees a long service life, reliability, and easy maintenance, making it a top choice for both industrial and commercial uses.
