Emilio Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 904L tubing, proudly based in Manila, Philippines. Known for its commitment to providing corrosion-resistant and high-performance stainless steel products, Emilio Stainless serves industries that require exceptional durability in challenging environments. The company employs cutting-edge manufacturing techniques and follows rigorous quality standards to ensure that every 904L tube meets both local and international requirements. As a result, Emilio Stainless has become the go-to choice for customers looking for reliable stainless steel tubing solutions in the Philippines.
The Stainless Steel 904L tubing from Emilio Stainless is made with low carbon and boasts high levels of nickel (23–28%), chromium (19–23%), molybdenum (4–5%), and copper (1–2%). This austenitic stainless steel grade is specifically engineered to provide outstanding resistance to strong reducing acids like sulfuric acid and to prevent chloride stress corrosion cracking. It combines high strength, excellent weldability, and remarkable resistance to pitting, crevice corrosion, and general corrosion in harsh chemical and marine settings, making it an ideal option for critical applications.
| Specifications | : | ASTM A/ASME SA213/ A249/ A269 |
| Dimensions | : | ASTM, ASME and API |
| SS 310/ 310S Tubes Size | : | 1/8″NB TO 30″NB IN |
| Schedule | : | SCH20, SCH30, SCH40, XS, STD, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Thickness | : | 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm. |
| Form | : | Round, Rectangular, Square, Hydraulic Etc |
| Type | : | Seamless / Fabricated / ERW / Welded / LSAW Tubes |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
| AISI 904L | Maximum | Minimum |
|---|---|---|
| Ni | 28.00 | 23.00 |
| C | 0.20 | – |
| Mn | 2.00 | – |
| P | 00.045 | – |
| S | 00.035 | – |
| Si | 1.00 | – |
| Cr | 23.0 | 19.0 |
| Mo | 5.00 | 4.00 |
| N | 00.25 | 00.10 |
| CU | 2.00 | 1.00 |
| Element | Grade 904L |
|---|---|
| Density | 8 |
| Melting Range | 1300 -1390 ℃ |
| Tensile Stress | 490 |
| Yield Stress (0.2%Offset) | 220 |
| Elongation | 35% minimum |
| Hardness (Brinell) | – |
Contact us to get a quick quote for your requirement.
We practically assures its customers the top quality concerning their products, Stainless Steel 904L Tubing, with intension testing and certification measures. Each of these products is accompanied by elaborate quality checks ranging from the analysis of the material to tensile strength and corrosion resistance tests. With its international certification, the tubing guarantees excellent performance, performance reliability, and adherence to the demands of a specific industry.
Offering excellent corrosion resistance, Stainless Steel 904L Seamless Tubing is known for its uniformity and strength. It typically comes in sizes ranging from 6mm to 350mm in diameter and lengths of up to 6 meters. Ideal for applications requiring high pressure and corrosive resistance.
Stainless Steel 904L Welded Tubing provides superior resistance to chloride-induced stress corrosion cracking. Available in sizes from 10mm to 150mm in diameter and standard lengths of 6 meters. It is often used in industrial and chemical processing applications where weld strength is critical.
Featuring outstanding corrosion resistance, Stainless Steel 904L Heat Exchanger Tubes are used in demanding environments. Sizes typically range from 6mm to 50mm in diameter, with wall thickness varying from 1mm to 3mm. These tubes are designed for high temperature and pressure conditions.
Stainless Steel 904L Instrumentation Tubing offers excellent resistance to corrosion and is ideal for precise measurement systems. Common sizes include 1/8″ to 1/2″ in diameter and lengths up to 6 meters. It is suitable for high-pressure applications and harsh environments.
With superior resistance to both oxidation and corrosion, Stainless Steel 904L Boiler Tubes are used in high-pressure steam applications. Sizes typically range from 25mm to 100mm in diameter, with lengths of up to 6 meters. They are essential for maintaining efficiency in boiler systems.
Stainless Steel 904L U-tubes provide excellent resistance to corrosive fluids and are commonly used in heat exchangers. Standard sizes range from 10mm to 100mm in diameter with various lengths. They are designed to handle thermal expansion and contraction in dynamic environments.

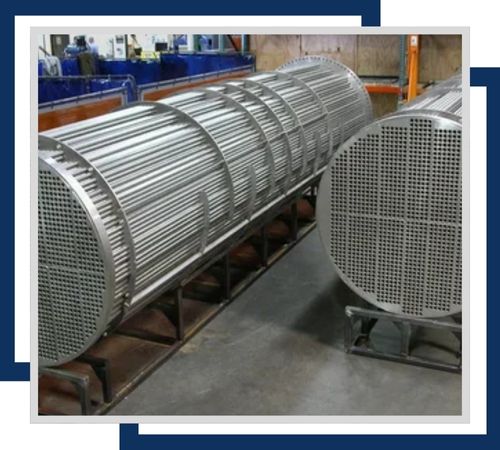

Stainless Steel 904L Condenser Tubes are used in marine and power generation applications, offering exceptional resistance to seawater and acidic environments. Sizes typically range from 10mm to 50mm in diameter and lengths up to 6 meters, providing durability and efficiency.

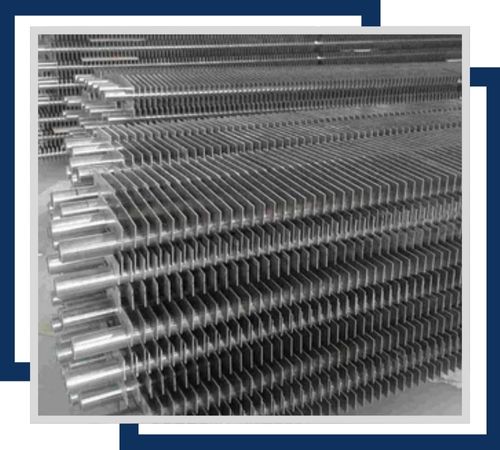

Stainless Steel 904L Fin Tubes are designed for enhanced heat transfer and corrosion resistance in air-cooled heat exchangers. They are available in various diameters, commonly 25mm to 50mm, with fin lengths customizable to specific requirements, ensuring effective cooling in challenging environments.
Emilio Stainless’s 904L stainless steel tubing finds extensive use in various sectors, including chemical processing, pharmaceuticals, marine, pulp and paper, and offshore oil and gas. This material is perfect for heat exchangers, condensers, instrumentation tubing, and fluid transfer systems that come into contact with corrosive fluids. Thanks to its impressive resistance to aggressive environments and robust mechanical performance, 904L tubing from Emilio Stainless ensures long-lasting reliability and safety. Catering to Manila and the wider Philippine market, the company guarantees timely deliveries and customized solutions for a diverse array of industrial needs.
