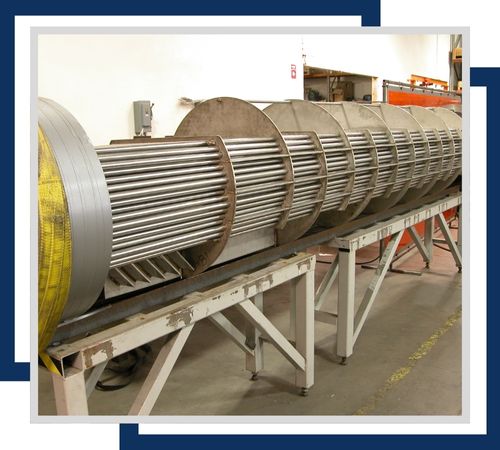

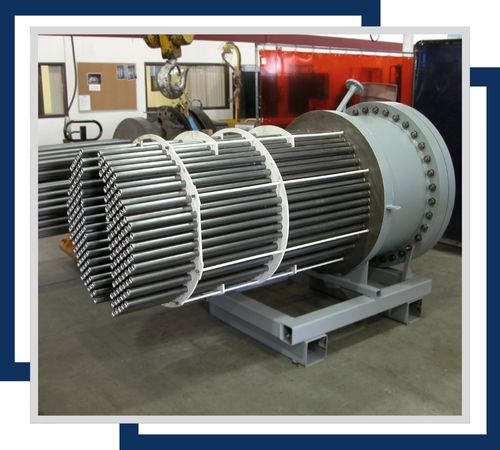

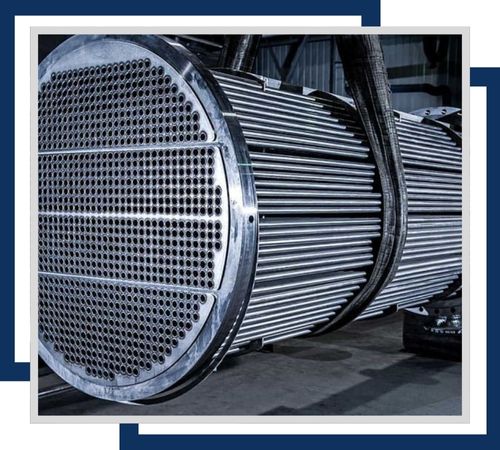

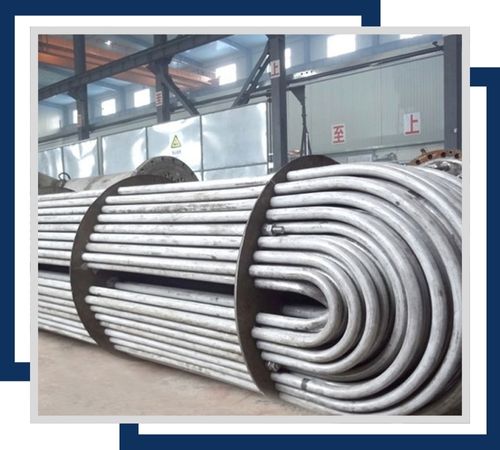

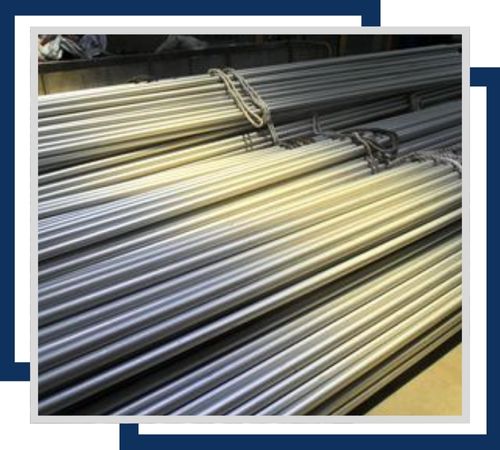

Emilio Stainless, located in Manila, Philippines, stands out as a top manufacturer and supplier of stainless steel heat exchanger tubing. They’re all about delivering high-quality solutions tailored to a variety of industrial needs. With a keen emphasis on precision engineering and top-notch stainless steel, the company guarantees that each tube adheres to strict industry standards, ensuring durability, reliability, and resistance to corrosion. Thanks to their advanced manufacturing techniques and rigorous quality control, Emilio Stainless is able to provide customized products that excel in heat transfer systems, chemical processing, power generation, and high-temperature applications, making them a go-to partner for industries that demand long-lasting, high-performance tubing.
When it comes to stainless steel heat exchanger tubing, it’s usually crafted from austenitic alloys like SS 304, SS 316, or SS 316L, which offer fantastic resistance to corrosion, oxidation, and high temperatures. These tubes are built to last, boasting high tensile strength, yield strength, and hardness, which ensures they remain stable under pressure while still being ductile and impact-resistant. Their smooth internal surfaces promote optimal fluid flow and help prevent fouling, while a consistent wall thickness ensures uniform heat transfer performance across even the most demanding industrial applications, guaranteeing both efficiency and longevity.
| Size Range | 10 mm OD to 50.8 mm OD |
| Stainless Steel Heat Exchanger Tube Outside Diameter | 6.00 mm to 101.60 mm |
| Wall Thickness | 0.70 mm to 8.00 mm |
| Length | up to 20 m (65.62 ft) Length & Customed Required Length |
| Stainless Steel Heat Exchanger Tube Dimenisons | ASTM, AISI, ASME/ ANSI, JIS, DIN, EN, GB, BS, SUS |
| Standard | ASTM A 213, A 268, A 269, A 789, Equivalent to ASME, EN, JIS Etc. |
| Stainless Steel Heat Exchanger tube Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
| SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
| SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
| 347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
| 410 | min. | 11.5 | ||||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
| 446 | min. | 23.0 | 0.10 | |||||||||
| max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
| 904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |||
| Stainless Steel Heat Exchanger tube Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 317 | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 347 | 8.0 g/cm3 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 | Psi 32000 , MPa 220 | 35 % |
Contact us to get a quick quote for your requirement.
Upon completion of production, the range of Stainless Steel Heat Exchanger Tubing is passed to our dedicated quality control team, who conduct a series of destructive and nondestructive tests that will use the most advanced tools and techniques available in the market today in order to ensure compliance and performance reliability. Once testing is completed the tubes are packaged properly using high-quality packing materials. To ensure their safety while in transit. A timely and efficient delivery schedule is maintained, ensuring clients that their products are delivered within a short time as well as without any holdups. On site, documentation in the form of certificates and “as-built” inspection reports are issued with the products. This is avoiding all doubts and giving customers full satisfaction.
These tubes are widely used in power plants, the chemical and petrochemical sectors, oil and gas, HVAC systems, and marine applications where dependable heat transfer and corrosion resistance are essential. They’re perfect for shell-and-tube heat exchangers, condensers, evaporators, and cooling systems, adeptly handling liquids, gases, and steam at high temperatures and pressures. Their durability, resistance to scaling, and long service life make them crucial for processes that require consistent thermal efficiency, while industries like food processing and pharmaceuticals benefit from their hygienic and corrosion-resistant features.
