Emilio Stainless, located in Manila, Philippines, stands out as a top manufacturer and supplier of premium Stainless Steel 321H Tubing. This tubing is specifically crafted for high-temperature and industrial uses, boasting remarkable corrosion resistance, oxidation resistance, and mechanical strength. The 321H grade, which is stabilized with titanium, offers outstanding protection against intergranular corrosion and performs exceptionally well in high-temperature settings. At Emilio Stainless, we utilize cutting-edge manufacturing techniques and rigorous quality control to ensure our tubing has precise dimensions, consistent quality, and a superb surface finish. These tubes are perfect for boilers, heat exchangers, furnaces, and other vital piping systems where durability and reliability are key.
Stainless Steel 321H Tubing is made up of 17–19% chromium, 9–12% nickel, and 0.04–0.08% carbon, with titanium added for stabilization, along with trace amounts of manganese, silicon, and phosphorus. This austenitic stainless steel showcases a tensile strength ranging from 515–690 MPa and a yield strength of about 205–310 MPa, along with excellent ductility and toughness. The titanium stabilization helps prevent carbide precipitation, boosting resistance to intergranular corrosion at high temperatures. These tubes are not only mechanically strong and heat-resistant but also ideal for high-temperature, chemical, and industrial applications that demand long-lasting durability and reliability.
Standard ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Dimensions ASTM, ASME and API
Range 1/2″ NB TO 24″ NB IN SCH 5, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 & XXS as Per NACE MR 01 75
Thickness 0.3mm – 50 mm
Outer Diameter 6.00 mm OD up to 914.4 mm OD
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded/ Fabricated
Form Round, Square, Rectangular, Hydraulic, etc.
Length Single Random, Double Random & Cut Length
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Element | Grade 904L |
|---|---|
| Density | 8 |
| Melting Range | 1300 -1390 ℃ |
| Tensile Stress | 490 |
| Yield Stress (0.2%Offset) | 220 |
| Elongation | 35% minimum |
| Hardness (Brinell) | – |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 321H tubing through rigorous testing and certification processes. Each tube undergoes a thorough evaluation, including hydrostability, chemical testing and mechanical testing. Certified to international standards such as ASTM and ASME, these containers provide reliability, durability and high performance in demanding industrial applications.

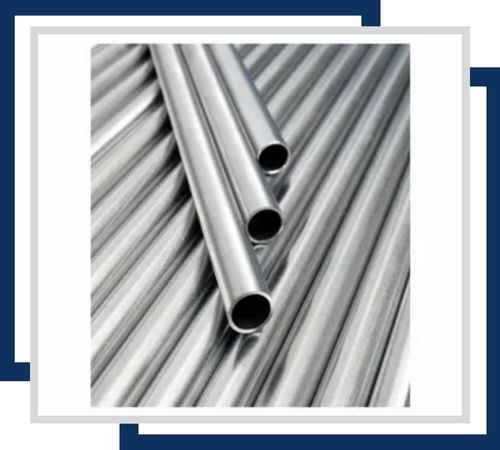

This tubing is available in sizes ranging from 1/8″ to 24″ in outer diameter. It offers excellent corrosion resistance, especially against intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 427-816°C. Ideal for high-temperature applications requiring a continuous, strong, and uniform surface.
Available in dimensions from 1/8″ to 36″ in outer diameter, this tubing is known for its high resistance to stress and pitting corrosion. It’s frequently used in chemical processing and other high-temperature applications due to its robust performance under harsh conditions. The welding process ensures a strong, durable, and leak-proof seam
These tubes come in sizes from 1/4″ to 1″ in outer diameter, designed for excellent thermal conductivity and corrosion resistance. Ideal for high-temperature and high-pressure environments, they are used in industries such as petrochemical and power generation. Their composition resists scaling and oxidation even at elevated temperatures.

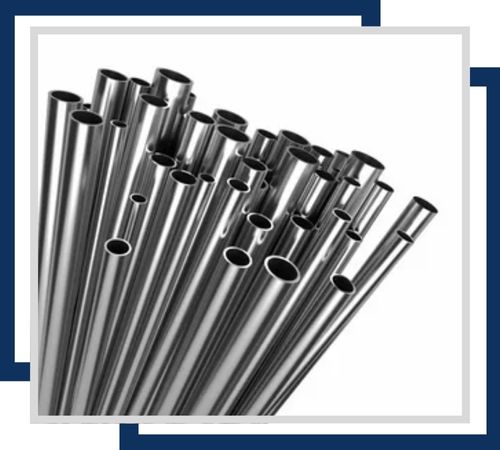

Offered in sizes from 1/8″ to 2″ in outer diameter, this tubing provides superior resistance to corrosion and high temperatures. It is used in precision instrumentation and control systems, ensuring reliable performance and accurate measurements. The tubing’s stability at high temperatures ensures minimal expansion and contraction.

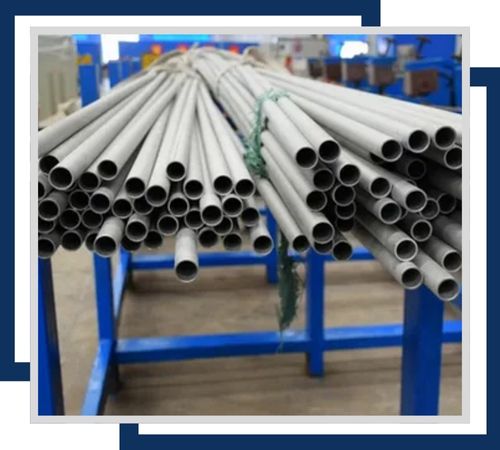

These tubes, ranging from 1/2″ to 5″ in outer diameter, are designed to withstand high-pressure and high-temperature environments typical in boiler systems. They offer excellent corrosion resistance, especially against steam and hot gases. Their durability ensures long service life and reliability in energy and industrial applications.

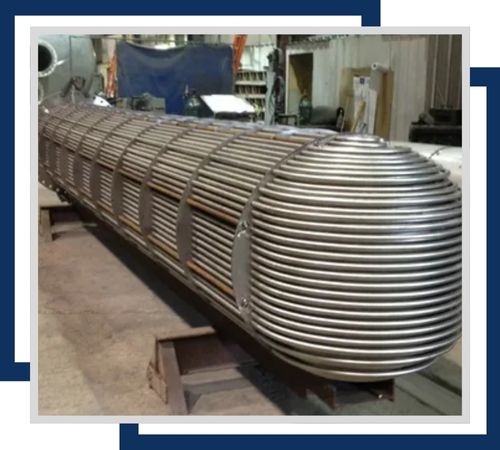

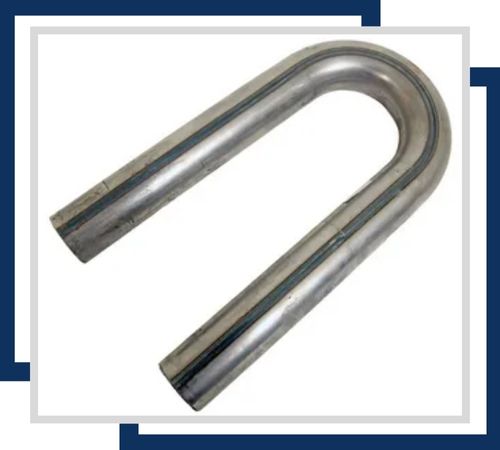

Available in sizes from 1/4″ to 1″ in outer diameter, U-tubes are essential for heat exchanger applications requiring a compact and efficient design. They provide excellent corrosion resistance and thermal stability, making them suitable for use in petrochemical, oil refining, and power generation industries. The U-shape allows for efficient heat transfer in limited spaces.

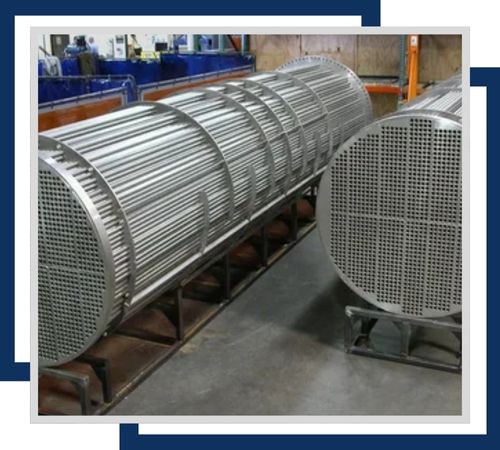

These tubes come in sizes ranging from 1/4″ to 1″ in outer diameter and are designed for use in condenser applications where efficient heat transfer and resistance to corrosion are critical. They are commonly used in power plants, HVAC systems, and refrigeration. The tubes ensure minimal fouling and scaling over prolonged use.
Fin tubes are available in sizes from 1/2″ to 2″ in outer diameter, designed to enhance heat transfer efficiency in various industrial applications. The addition of fins increases the surface area, improving thermal performance. These tubes offer excellent resistance to high-temperature oxidation and corrosion, making them ideal for heat exchangers and boilers.
Stainless Steel 321H Tubing finds extensive use in chemical processing, petrochemical industries, power generation, marine applications, and various high-temperature industrial systems. It’s perfect for transporting steam, gases, and fluids in boilers, heat exchangers, furnace lines, and high-temperature piping systems. The titanium-stabilized 321H grade guarantees resistance to intergranular corrosion and delivers excellent performance during thermal cycling. Emilio Stainless offers 321H tubing in a range of sizes, thicknesses, and finishes, ensuring that you get the right product for your specific needs.
