Emilio Stainless, located in Manila, Philippines, is a reputable manufacturer and supplier of high-quality stainless steel products, including their Stainless Steel 309S Tubing. Known for its impressive durability and ability to withstand high temperatures, Emilio Stainless guarantees that their 309S tubing adheres to strict international standards for strength and resistance to corrosion. This tubing is specifically designed for tough industrial applications, delivering outstanding performance even in extreme heat and harsh conditions.
The Stainless Steel 309S Tubing is crafted from an austenitic stainless steel alloy that features about 23% chromium and 13% nickel, along with a low carbon content that improves weldability and minimizes carbide precipitation. This unique composition offers remarkable resistance to oxidation, scaling, and corrosion at temperatures reaching up to 1000°C. Typically, the tubing boasts a tensile strength of around 620 MPa, along with commendable ductility, toughness, and resistance to thermal fatigue.
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Form | Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded. |
| ELEMENT | SS 309S |
| NI | 12.0 – 15.0 |
| C | 0.08 max |
| MN | 2.0 max |
| P | 0.045 max |
| S | 0.030 max |
| SI | 1.0 max |
| CR | 22.0 – 24.0 |
| MO | 0.75 max |
| Condition & Grade | Tensile Strength | Yeild Strength | Elognation | Hardness |
|---|---|---|---|---|
| SS 309S | 75 (515) | 30 (205) | 35 | 90 HRB max |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 309S tubing through rigorous testing procedures including mechanical, chemical and theoretical testing. Compliance with international standards is demonstrated by industry-standard documentation, such as material test certificates (MTCs). These certifications attest to the durability, strength and performance of the pipe.

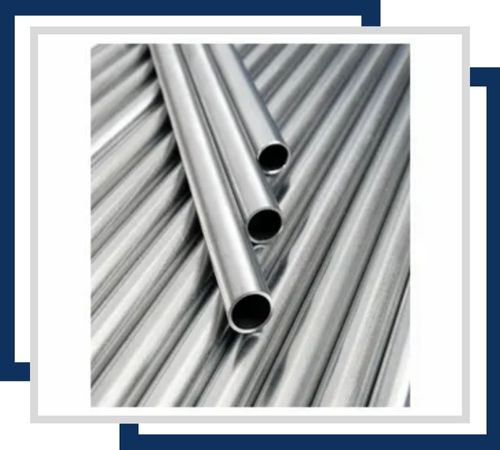

Stainless Steel 309s Seamless Tubing is known for its high resistance to oxidation and excellent mechanical properties. It typically comes in diameters ranging from 1/8 inch to 12 inches, with wall thicknesses of 0.5 mm to 10 mm. It offers superior corrosion resistance in high-temperature applications.

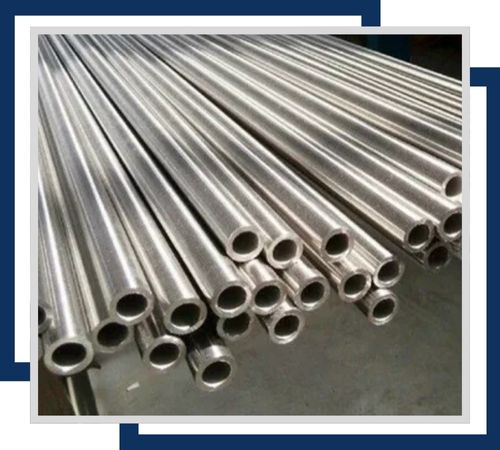

Stainless Steel 309s Welded Tubing is ideal for applications requiring good oxidation resistance and strength. It is available in sizes from 1/4 inch to 10 inches in diameter and wall thicknesses from 0.5 mm to 8 mm. This tubing is well-suited for high-temperature environments due to its excellent corrosion resistance.

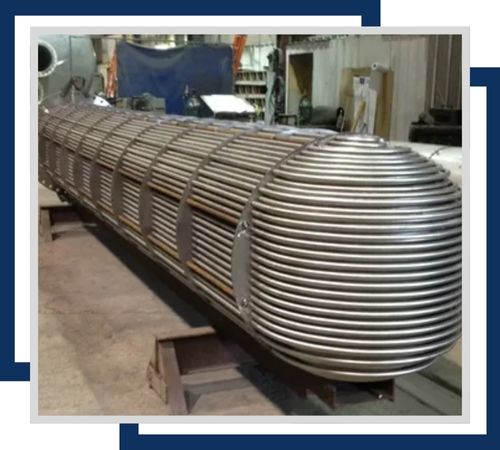

Stainless Steel 309s Heat Exchanger Tube is designed to handle extreme temperatures and corrosive environments. Common sizes range from 1/2 inch to 3 inches in diameter, with wall thicknesses of 1 mm to 5 mm. It provides excellent thermal conductivity and resistance to oxidation.

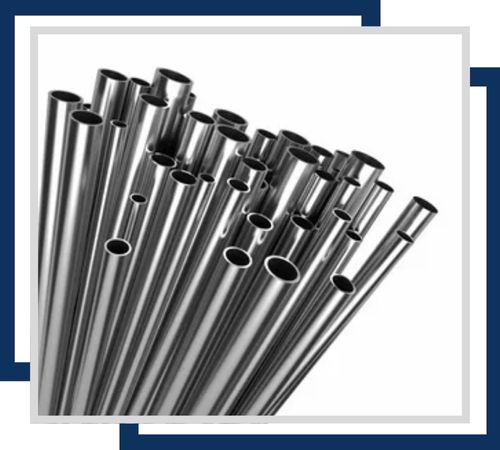

Stainless Steel 309s Instrumentation Tubing is used for precise measurement and control applications. It is available in sizes from 1/8 inch to 2 inches in diameter and wall thicknesses from 0.5 mm to 3 mm. This tubing offers strong resistance to high temperatures and corrosive environments.

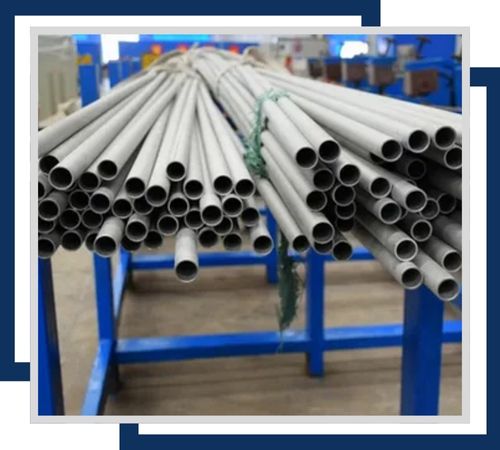

Stainless Steel 309s Boiler Tubes are engineered for use in high-pressure and high-temperature environments within boilers. Typical sizes are from 1/2 inch to 4 inches in diameter, with wall thicknesses of 1 mm to 8 mm. They exhibit excellent resistance to thermal cycling and oxidation.

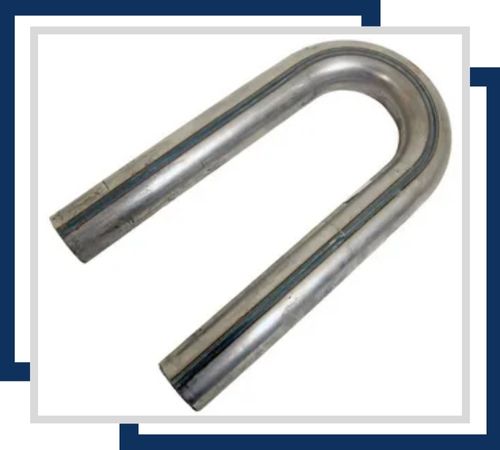

Stainless Steel 309s U-Tubes are used in heat exchangers and other applications requiring bending and high thermal resistance. Sizes generally range from 1/2 inch to 2 inches in diameter. They are highly resistant to thermal stress and corrosion.

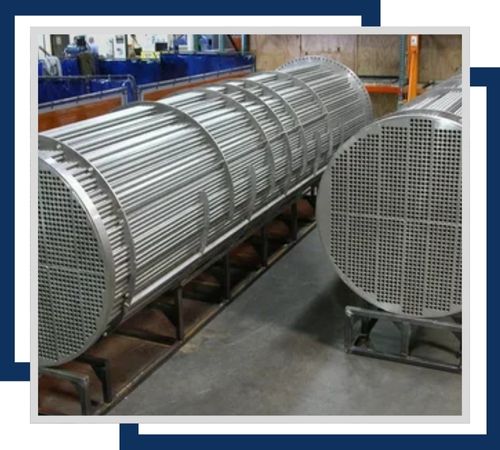

Stainless Steel 309s Condenser Tube is designed for use in condenser systems where high heat resistance is critical. It comes in sizes from 1/2 inch to 3 inches in diameter and wall thicknesses from 0.5 mm to 4 mm. It provides excellent durability and resistance to corrosion and heat.

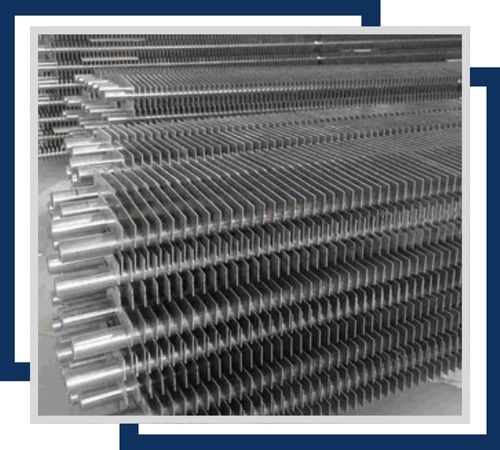

Stainless Steel 309s Fin Tubes are used in applications where enhanced heat transfer is needed, such as in heat exchangers and radiators. Typical sizes are from 1/2 inch to 2 inches in diameter, with various fin lengths and thicknesses. They offer good resistance to oxidation and high temperatures.
This tubing is widely utilized in industries such as furnace manufacturing, petrochemical, power generation, and chemical processing. It’s perfect for applications like heat exchangers, furnace components, exhaust systems, and other parts that face high temperatures and corrosive environments. With its exceptional heat and corrosion resistance, Stainless Steel 309S Tubing ensures reliable performance and a long service life in critical industrial settings.
