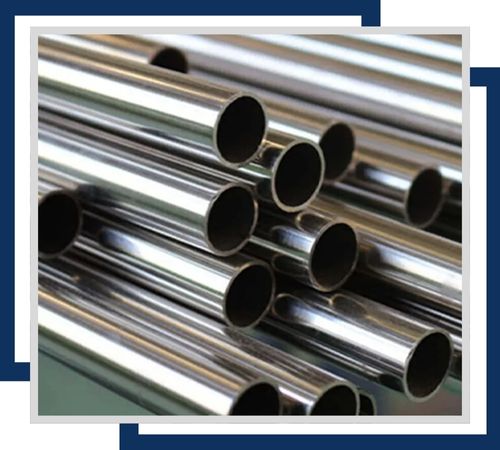

Emilio Stainless is a well-respected manufacturer and supplier located in Manila, Philippines, known for its extensive selection of high-quality Stainless Steel Welded Tubing. These tubes are crafted for precision, durability, and resistance to corrosion. Utilizing cutting-edge welding and finishing technologies, Emilio Stainless ensures that their products meet international quality standards. They offer welded tubing in a variety of grades, diameters, and thicknesses, catering to industries like chemical processing, oil and gas, food and beverage, pharmaceuticals, and power generation. Each tube is designed to deliver exceptional strength, a smooth surface finish, and reliable performance even in the toughest operational conditions.
The Stainless Steel Welded Tubing is mainly made up of iron, chromium (10–20%), nickel, and molybdenum, which give it outstanding resistance to corrosion and oxidation. This material boasts impressive tensile strength (515–860 MPa) and yield strength (205–450 MPa), along with good ductility and hardness. The welded design guarantees precise dimensions, while the smooth inner surface allows for optimal fluid flow. These tubes are built to maintain their structural integrity under high pressure and temperature, ensuring top-notch performance and longevity in both corrosive and high-stress environments.
| Range : | 1/8” NB to 36” NB, 1/4” OD to 36” OD |
|---|---|
| Outer Diameter : | 6.35 mm O.D to 114.3 mm O.D |
| Thickness : | 0.8 mm to 12.7 mm |
| Length : | up to 26 Meters |
| Specifications : | ASTM A312 / ASTM SA312 |
| Types : | As Welded, EFW, ERW |
| End : | Plain End, Beveled End |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. max. | – 0.08 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – 0.10 |
| 304L | min. max. | – 0.030 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 12.0 | – 0.10 |
| 304H | min. max. | 0.04 0.10 | – 2.0 | – 0.75 | -0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – |
| Element | SS 304 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
Stainless steel welded tubing are formed by welding stainless steel strips or plates. They offer strength, corrosion resistance, and cost-effectiveness, suitable for various industrial, commercial, and residential applications.

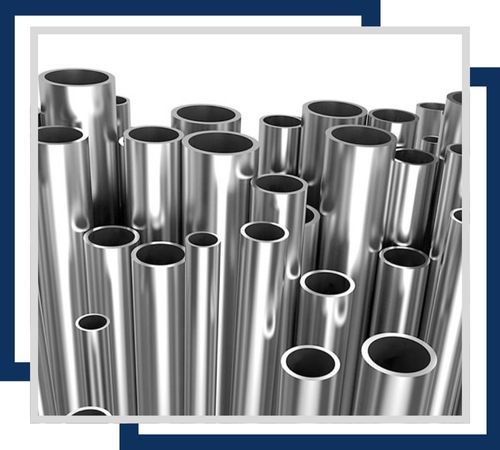

Stainless steel ERW (Electric Resistance Welded) tubing are produced by welding steel strips. They offer cost-effective, high-strength, and corrosion-resistant solutions for various industrial applications, providing durability and reliability.

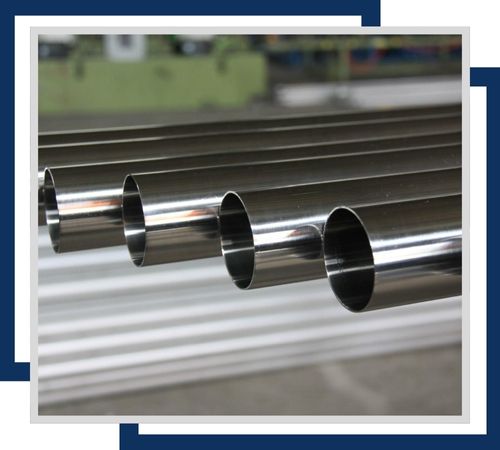

Stainless Steel EFW (Electric Fusion Welded) tubing are produced by electrically fusing stainless steel plates or strips. They offer high precision and strength, suitable for high-pressure and demanding applications.

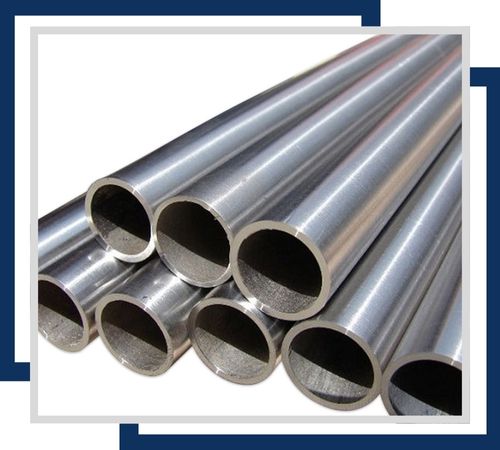

SS HFW (High-Frequency Welded) tubing are stainless steel tubings welded using high-frequency currents. They provide strong, precise joints, making them ideal for structural applications and high-strength requirements.

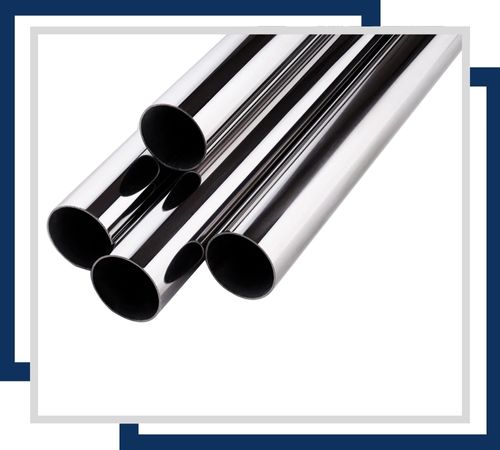

Stainless Steel butt-welded tubing are joined by aligning and welding the ends together. This method creates strong, leak-proof joints, ideal for high-pressure and high-temperature applications in various industries.
Stainless Steel laser-welded tubing use laser technology for precise, clean welds. They offer high accuracy, minimal thermal distortion, and are ideal for applications requiring tight tolerances and smooth finishes.
The tests include destructive testing methods and others which do not destroy the material but analyze the testing quality. We are developing into all modern aspects. Offering services to any customer that provides security assurance, we live achievement and a few policies such as consideration of diversity and advantage of best quality, quality reputation, and our name in the industry. Best quality speaks for itself, especially when the customer is satisfied after delivery. Logistical support at the most convenient part to ensure that shipping for emergency stock and standard packing materials is done correctly.
Stainless Steel Welded Tubing finds its place in industries that prioritize hygiene, strength, and corrosion resistance. It’s perfect for use in chemical plants, food and beverage processing, water treatment, heat exchangers, and power generation systems. In the pharmaceutical and dairy sectors, its clean, smooth surface guarantees contamination-free transport of fluids. Additionally, the tubing is utilized in structural frameworks, condensers, and marine applications. With its blend of mechanical strength, visual appeal, and resistance to corrosion, it stands out as a dependable choice for a wide range of industrial and architectural applications.
