Emilio Stainless, located in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality SS 422 Sheets and Plates. The company focuses on producing stainless steel products that excel in corrosion resistance, strength, and durability. SS 422 is a ferritic stainless steel grade crafted to endure oxidizing and mildly corrosive environments, making it perfect for high-temperature and industrial uses. With state-of-the-art manufacturing facilities, precise engineering, and rigorous quality control, Emilio Stainless guarantees that its sheets and plates deliver dependable performance, a long lifespan, and adherence to international standards, catering to a diverse range of industries both locally and globally.
SS 422 Sheets and Plates mainly consist of iron, featuring 16–18% chromium, along with trace amounts of manganese, silicon, and carbon, and very little nickel. This ferritic stainless steel showcases remarkable resistance to oxidation and scaling at high temperatures. It boasts a tensile strength of about 485–515 MPa and a yield strength of around 275–300 MPa, along with commendable hardness and toughness. The sheets and plates maintain their structural integrity, dimensional stability, and resistance to pitting in mildly corrosive settings, making them perfect for heat exchangers, furnace components, and high-temperature industrial applications.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
| Density (lb/ft3) | Electrical conductivity (% IACS) | Thermal conductivity (BTU/h-ft-°F) | Specific heat capacity (BTU/lb-°F) | Thermal expansion (µm/m-K) |
| .2817 | 4.7% | 14 | 0.11 | 10 |
Contact us to get a quick quote for your requirement.

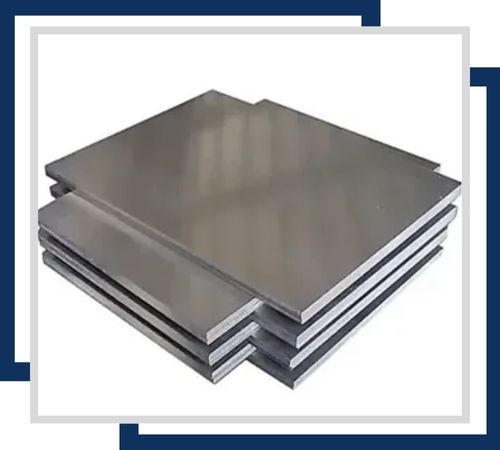

SS 422 cold rolled sheets are stainless steel material that is strong, durable, and furnished with a smooth surface. These sheets are available in various thicknesses, from 0.1mm to 6mm and can be manufactured with the desired width and length for any industrial usage.

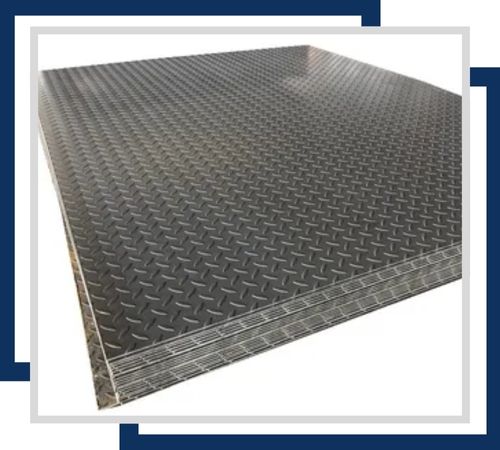

SS 422 chequered plates are highly durable stainless steel sheets with a raised design that increases grip and limits slipping. Used for flooring, walkways, and other industrial applications, chequered plates vary in sizes but are usually 2mm to 8mm thick.

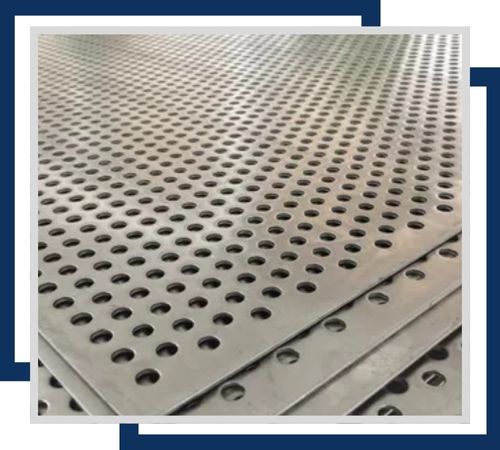

SS 422 perforated plates are stainless steel sheets designed with precision holes for industrial use. The durability and corrosion resistance of these plates are excellent and usually available in sizes from 0.5mm to 12mm in thickness and in a customizable hole pattern, making them versatile in performance.

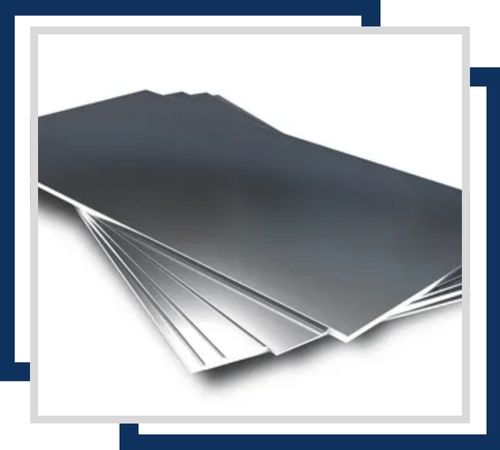

These are thin sheets in stainless steel 422, precision engineered to withstand excellent corrosion resistance and high temperatures. They are usually found in sizes 0.1mm to 5mm in thickness. There is always a need to make precise alignment and gap filling in several industrial applications.

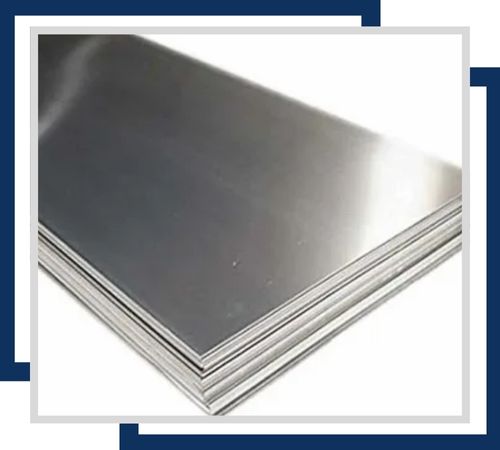

SS 422 Polished Plates are most resistant to corrosion yet very strong and offer a finishing finish quality. Known to be of high quality, the plates vary in size, and may differ in thickness that can range from 3mm up to 100mm, thus giving versatility to various industries.
Emilio Stainless is committed to delivering a seamless customer experience by providing complete documentation for the Stainless Steel 422 Sheet and Plate products, ensuring top-notch quality. Commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plans, and NABL-approved lab test reports are given from Emilio Stainless. These papers are proof of our authenticity and superior quality products. Furthermore, we provide test certificates for our Stainless Steel 422 Sheets and Plates, which include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates, which demonstrate our customer-centric approach and excellence.
SS 422 Sheets and Plates find extensive use in industries that demand high-temperature oxidation resistance and moderate corrosion resistance. They are particularly suited for furnace parts, heat exchangers, boiler components, kilns, and combustion chambers. In sectors like chemical processing, petrochemicals, and power generation, they offer durability and reliable performance in oxidizing conditions. Moreover, SS 422 sheets and plates are utilized in industrial equipment that comes into contact with hot gases and steam. Emilio Stainless provides these sheets and plates in various thicknesses and sizes to meet the specific needs of its customers.
