Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, specializing in high-quality Stainless Steel 904L Sheets and Plates. Known for their exceptional durability, resistance to corrosion, and outstanding performance, these products adhere to international standards for various industrial applications. Emilio Stainless prides itself on precision manufacturing and rigorous quality control, ensuring that their products are perfect for even the most corrosive environments. With a strong focus on customer satisfaction and technical excellence, the company delivers Stainless Steel 904L Sheets and Plates that are perfectly suited for the chemical, marine, and processing industries, guaranteeing a long service life and reliability under demanding conditions.
The composition of Stainless Steel 904L Sheets and Plates includes iron, nickel (23–28%), chromium (19–23%), molybdenum (4–5%), copper (1–2%), along with trace amounts of carbon, manganese, and silicon. This unique blend significantly boosts their resistance to pitting, crevice corrosion, and stress cracking. On the mechanical side, they boast a tensile strength of around 490 MPa, a yield strength of about 220 MPa, and an impressive elongation of 35%. Their non-magnetic properties and high toughness, even at cryogenic temperatures, make them ideal for aggressive chemical environments.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

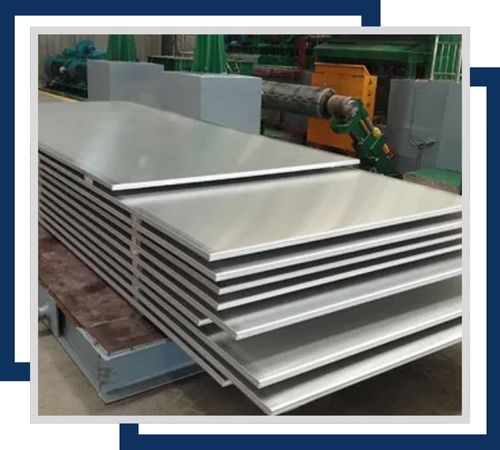

Stainless Steel 904L hot rolled sheets exhibit excellent corrosion resistance in aggressive conditions, such as acids and chlorides. Thicknesses range between 3mm to 25mm, while widths can be up to 2 meters in size. This sheet is employed in heavy-duty applications where robust structural integrity is demanded.

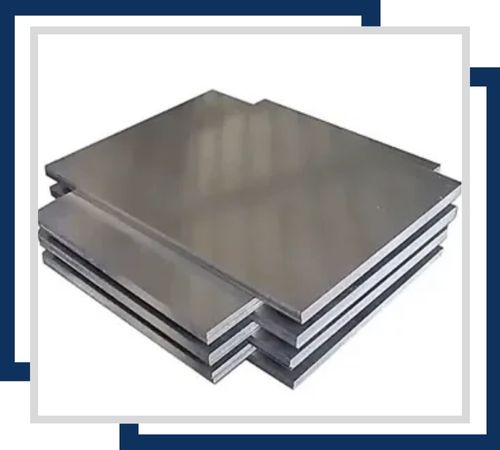

Stainless Steel 904L Cold Rolled Plates are alloyed with austenitic with excellent corrosion protection against strong acids and chlorides. These 904L sheets are available up to 0.5-3 mm, with widths ranging up to 1.5 meters. Plates are also featured with a highly smooth surface polish that can use for precise aesthetics.

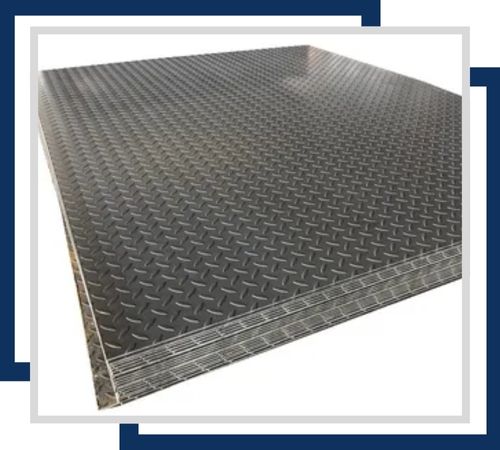

Stainless Steel 904L Chequered Sheets have a patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Available in common thicknesses of 2 mm to 6 mm and up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

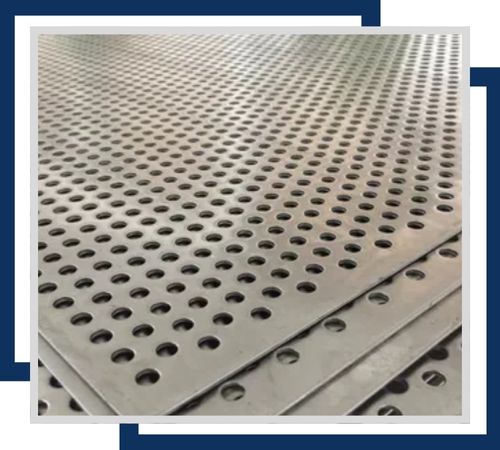

Stainless steel perforated plates from the 904L grade combine corrosion resistance with customized perforation patterns for ventilation and filtration. Thicknesses range from 1 mm to 8 mm, and the size up to 1.2 meters by 2.4 meters accommodates industrial and architectural applications.

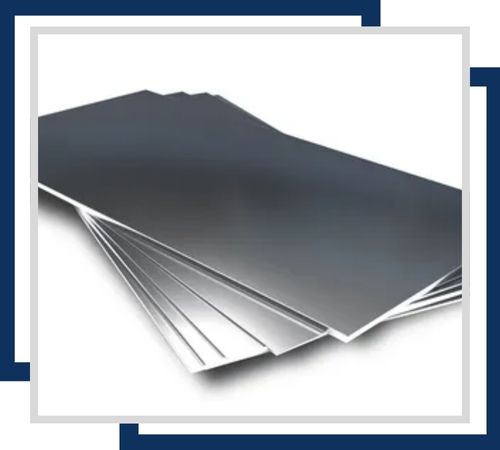

Stainless Steel 904L Shim Sheets are excellent resistance to aggressive environments and precise thicknesses for the application. Normally available in a thickness range from 0.1 mm up to 3 mm and size up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

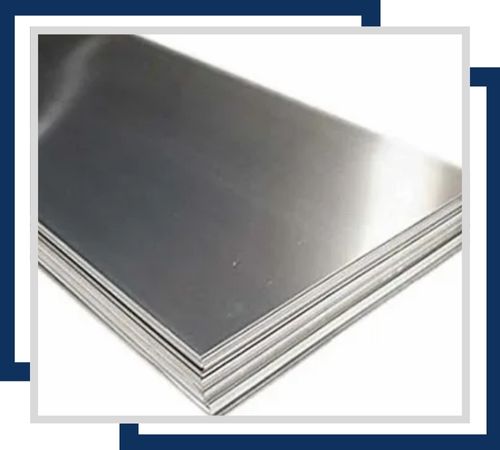

Stainless Steel 904L Polished Plates are known for their excellent finish and high corrosion resistance. They are very suitable for decorative and high-end applications. Thicknesses available are from 1 mm to 50 mm, and the maximum dimensions can go up to 2 meters by 6 meters, making them aesthetically pleasing and durable.
Emilio Stainless is committed to providing an experience of excellence to all its customers who purchase our Premium Quality Stainless Steel 904L Sheets and Plates by providing complete documents. We send the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, which certifies the originality and high quality of our products. To further boost the confidence of our clients, we provide the Stainless Steel 904L Sheets and Plates with a range of test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. We express our promising commitment to our customers in terms of satisfaction, and on going to evolve into excellence in product quality.
Stainless Steel 904L Sheets and Plates find extensive use in industries that require top-notch corrosion resistance and strength. They are perfect for chemical processing plants, heat exchangers, condensers, and equipment handling seawater. In the oil and gas industry, they are commonly used for pipelines, pressure vessels, and storage tanks that face harsh conditions. Moreover, they are also utilized in the pulp and paper sector, power generation, and marine engineering, thanks to their ability to endure acidic and chloride-rich environments, ensuring a long lifespan and minimal maintenance needs.
