Emilio Stainless, located in Manila, Philippines, stands out as a top manufacturer and supplier of premium stainless steel products, with a particular focus on Stainless Steel 409 Sheets and Plates. Known for their dedication to precision, durability, and customer satisfaction, Emilio Stainless serves a diverse array of industrial and commercial sectors. Their Stainless Steel 409 offerings are designed to meet international standards, ensuring excellent corrosion resistance, thermal stability, and structural integrity. With a strong emphasis on innovation and quality assurance, Emilio Stainless guarantees that clients receive dependable, long-lasting materials that are perfect for demanding applications in the automotive, construction, and manufacturing industries.
The composition of Stainless Steel 409 Sheets and Plates includes iron, 10–11% chromium, and small amounts of titanium, all while keeping carbon content very low. This unique blend boosts oxidation resistance and minimizes the risk of carbide precipitation, making it a great choice for high-temperature settings. In terms of mechanical properties, it provides moderate tensile strength, good formability, and weldability. With a typical yield strength ranging from 215–275 MPa and an elongation of 20–30%, SS 409 delivers reliable performance while remaining flexible enough for shaping and fabrication. Its low thermal expansion and solid corrosion resistance make it ideal for both automotive and industrial uses.
Specifications< ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Element | Content |
|---|---|
| Carbon | 0.08 maximum |
| Manganese | 1.00 maximum |
| Phosphorus, maximum | 0.045 maximum |
| Sulfur, maximum | 0.045 maximum |
| Silicon | 1.00 maximum |
| Nickel | 0.5 |
| Chromium | 11.75 |
| Molybdenum | – |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Ti |
|---|---|---|---|---|---|---|---|---|---|
| SS 409 | 0.030 max | 0.5 max | 1 max | – | 0.020 max | 1 max | 0.040 max | 10.5 – 11.7 | 6*(%C+%N |
Contact us to get a quick quote for your requirement.

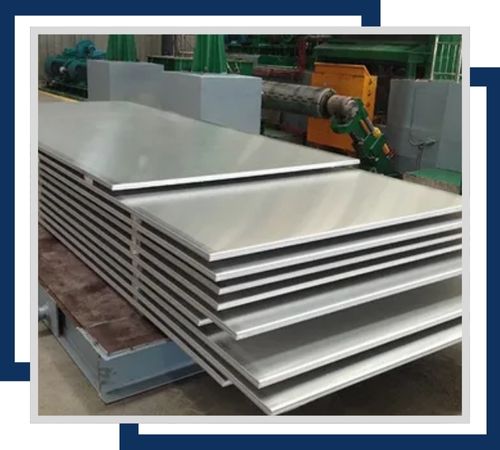

Stainless Steel 409 Hot Rolled Sheet and Plates provide good oxidation resistance and strength. These are applied in automotive exhaust systems, heat exchangers, and many more high-temperature applications that require durability.

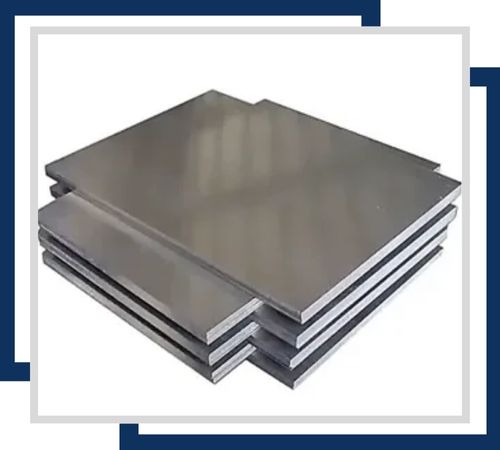

Stainless Steel 409 Cold Rolled Sheet and Plates are available with a smooth, precise finish, which provides enhanced mechanical properties, applied in automobile parts, industrial applications, and structural components that require a clean, flat surface.

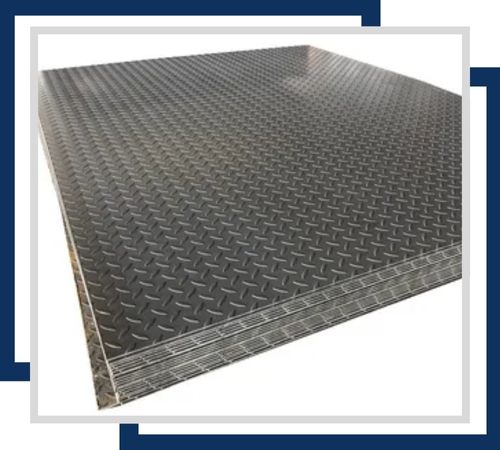

Stainless Steel 409 Chequered Sheet and Plates are applied where slip resistance and durability is required, including flooring and stair treads. It combines the strength with the corrosion resistance so it can be applied in either industrial or commercial applications.
Stainless Steel 409 Perforated Sheet and Plates are used in filtration, ventilation, and aesthetic applications. They are strong and resistant to corrosion, with functional perforations that allow for the design of various custom and structural applications in high-temperature conditions.

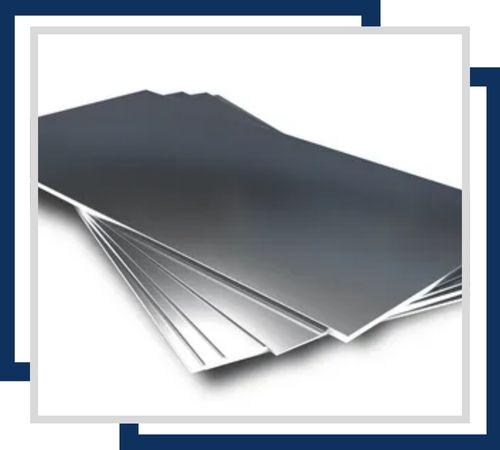

Stainless Steel 409 Shim Sheet and Plates can ensure the accuracy and rigidity to the machinery and structural parts. Owing to its properties of resistance to high temperature and corrosion, it is widely used in automobile and industrial applications where such accurate distance and alignment are a must.

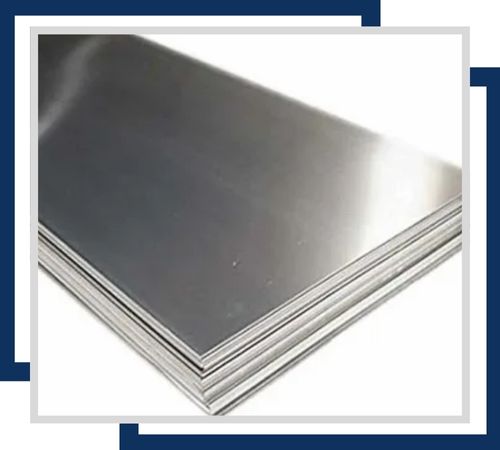

The stainless steel 409 polished sheet and plates feature a bright, shiny surface suitable for decorative and architectural purposes. They exhibit good resistance to oxidation and corrosion and can be used for aesthetic as well as functional purposes in any environment.
Emilio Stainless assures the best experience for customers by providing detailed documentation of our Stainless Steel 409 Sheets and Plates. We deliver the following crucial documents: Commercial Invoice, Packing List, Fumigation Certificate, Heat Treatment Chart, Quality Assurance Plan, and NABL-approved Lab Test Report. These documents authenticate the genuineness but at the same time highlight the better quality of our products that instill confidence and trust among our esteemed customers. Furthermore, we provide Stainless Steel 409 Sheets and Plates with test certificates like MTC in accordance with EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. Those certify our customer centric focus coupled with an unstoppable insistence on perfection on our products.
Stainless Steel 409 Sheets and Plates are commonly found in automotive exhaust systems, mufflers, and heat exchangers, thanks to their impressive high-temperature corrosion resistance. They’re also utilized in industrial equipment, chemical processing units, and kitchen appliances where moderate corrosion resistance is necessary at elevated temperatures. This material is favored for its cost-effectiveness, durability, and ease of fabrication, enabling manufacturers to create long-lasting components that require minimal maintenance. Plus, SS 409’s ability to resist scaling under heat makes it a suitable choice for ducts, panels, and more.
