Home > Sheet and Plates > Stainless Steel 317 Sheet and Plates
Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, with a focus on high-quality Stainless Steel 317 Sheets and Plates. These products are celebrated for their outstanding corrosion resistance and strength, making them perfect for tough industrial applications. Emilio Stainless takes pride in ensuring that every item meets international quality standards, providing excellent surface finishes, durability, and weldability. With a strong commitment to precision engineering and customer satisfaction, the company offers Stainless Steel 317 Sheets and Plates that are ideal for use in chemical processing, marine environments, and high-temperature industrial operations across a variety of sectors.
The composition of Stainless Steel 317 Sheets and Plates includes about 18% chromium, 14–16% nickel, and 3–4% molybdenum, which significantly enhance their resistance to corrosion and pitting. They also contain trace amounts of carbon, manganese, silicon, and phosphorus. These plates boast impressive mechanical properties, featuring a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 35%. The alloy is known for its exceptional toughness, high creep strength, and resistance to oxidation, making it well-suited for high-temperature and chemically exposed environments.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

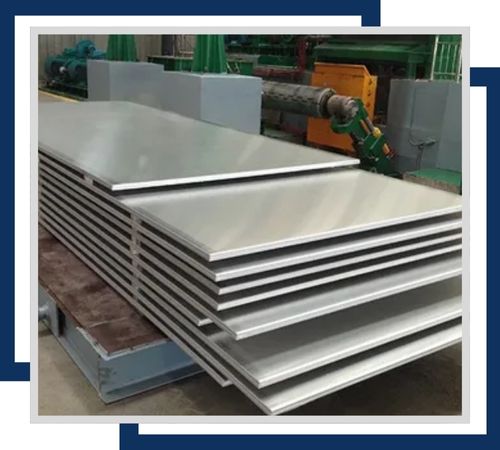

Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.

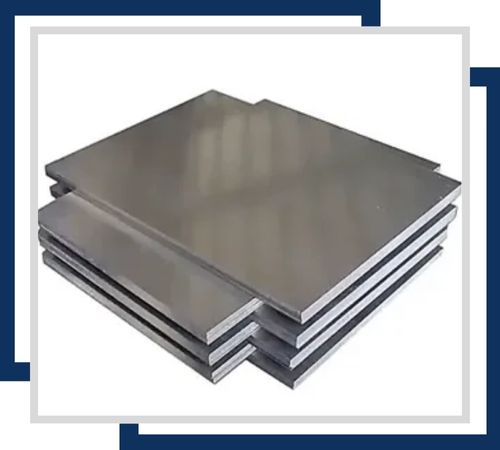

Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.

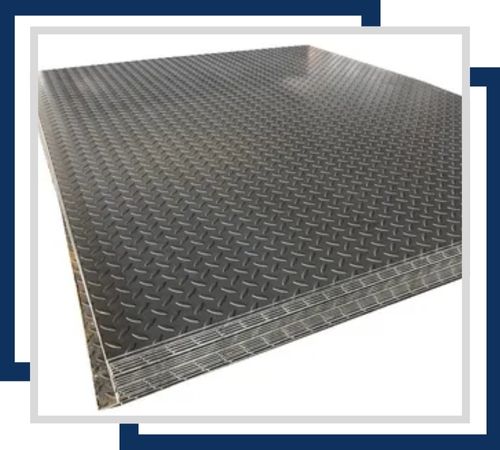

Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.

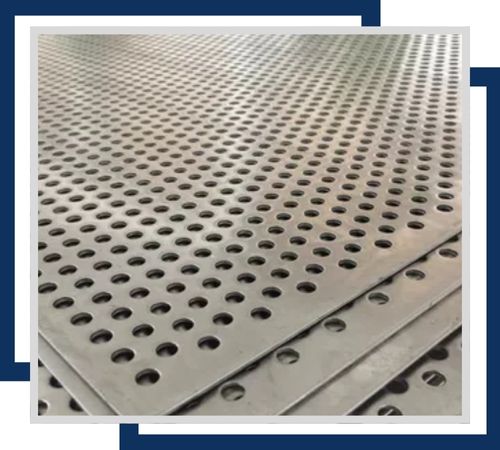

Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.

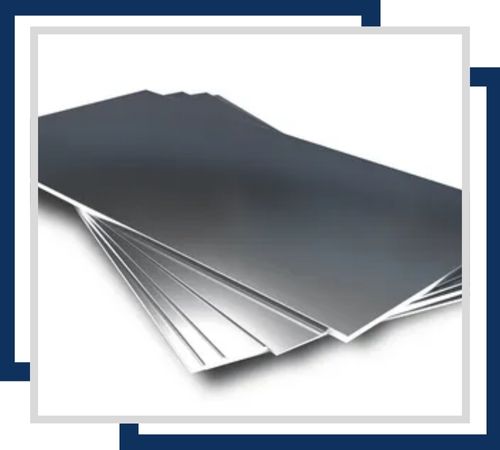

Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.

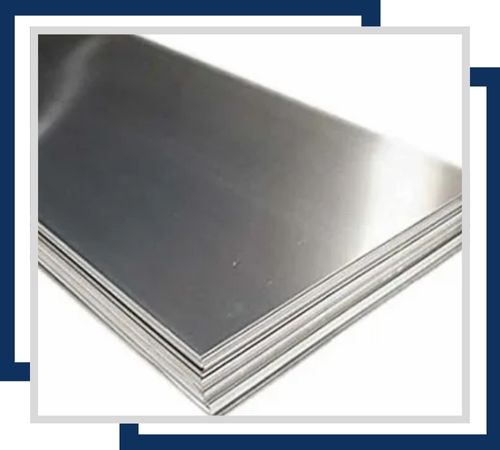

Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
Stainless Steel 317 Sheets and Plates find extensive use in industries that require superior corrosion and heat resistance. They are commonly utilized in chemical and petrochemical plants, food processing equipment, pulp and paper production, and marine engineering. Thanks to their high molybdenum content, they offer excellent protection against chloride corrosion, making them ideal for saltwater and acidic conditions. Additionally, these materials are used in heat exchangers, condensers, pressure vessels, and storage tanks. The alloy’s remarkable weldability and formability make it a top choice for fabrication in industrial, architectural, and environmental applications.
