Emilio Stainless is a reputable manufacturer and supplier located in Manila, Philippines, specializing in top-notch Stainless Steel 317L Sheets and Plates. Renowned for their exceptional corrosion resistance and durability, these sheets and plates are a go-to choice across various industries that demand high-performance materials. Emilio Stainless prides itself on precision engineering and rigorous quality control to ensure they meet international standards. With a strong commitment to excellence, the company offers customized sizes and finishes tailored for a range of industrial applications, making them a favored option for customers looking for dependable and long-lasting stainless steel solutions, both locally and globally.
Stainless Steel 317L Sheets and Plates are low-carbon, molybdenum-bearing austenitic alloys primarily made up of iron, chromium (18–20%), nickel (11–15%), and molybdenum (3–4%). The lower carbon content improves weldability and reduces carbide precipitation. These sheets and plates boast impressive mechanical properties, including high tensile strength, good yield strength, and outstanding creep resistance at elevated temperatures. Their enhanced resistance to chemical attacks, especially in sulfurous and chloride environments, makes them perfect for applications in harsh and corrosive conditions.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

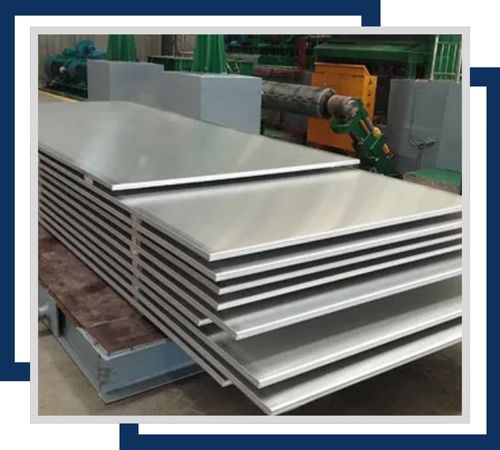

High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.

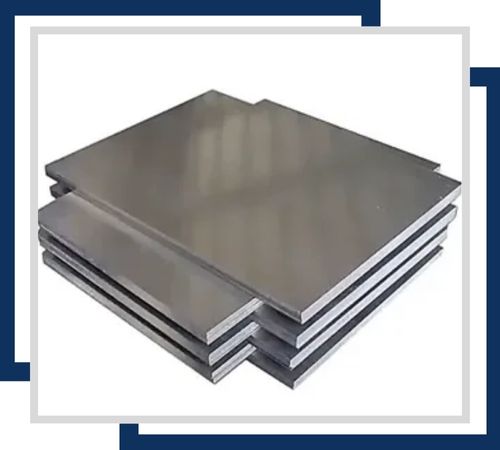

With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.

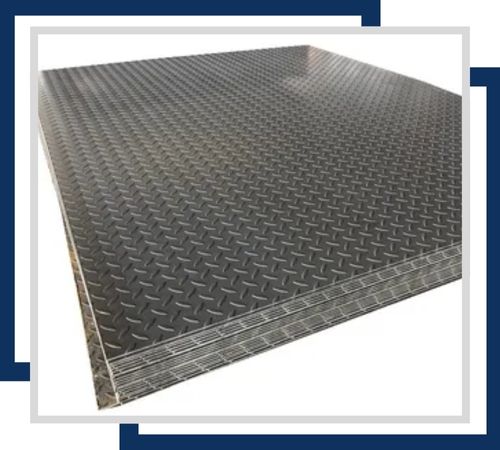

They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

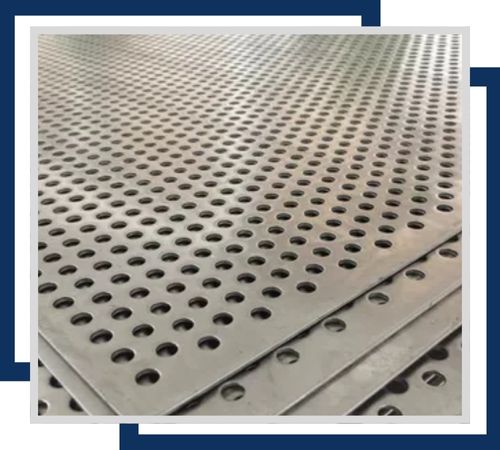

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.

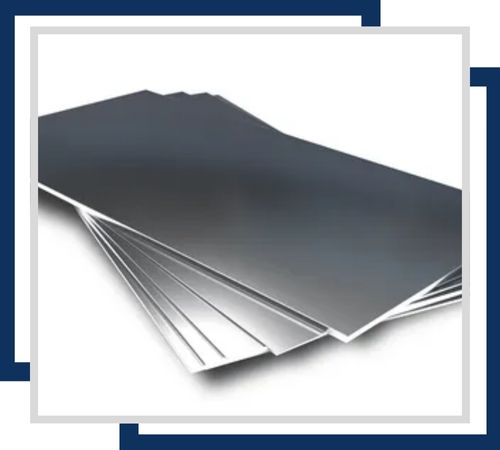

Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.

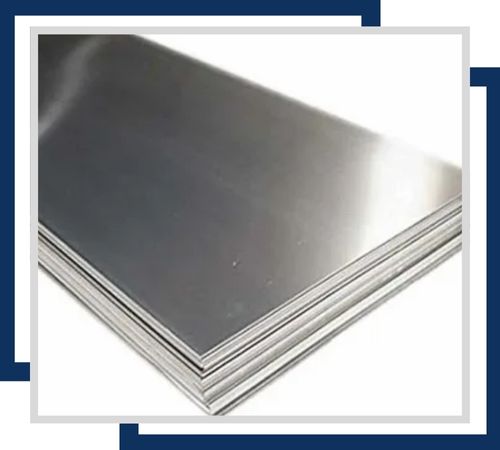

They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
We, at Emilio Stainless, ensure a completely hassle-free experience to our customer while providing documentation with our premium range of Stainless Steel 317L Sheets and Plates . Our pack consists of the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. The quality and authenticity of our product get authenticated due to these documents, which then brings trust and confidence in the mind of our client. We also provide test certificate for our Stainless Steel 317L Sheets and Plates, like an MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates indicate our relentless pursuit of client satisfaction and our quest for excellence in the quality of the product.
You’ll find Stainless Steel 317L Sheets and Plates widely utilized in the chemical processing, petrochemical, and pharmaceutical industries, thanks to their remarkable resistance to corrosion and pitting. They’re ideal for heat exchangers, condensers, pressure vessels, and storage tanks that operate in aggressive chemical settings. Moreover, they’re also used in marine equipment, pulp and paper processing, and food processing machinery. With their superior strength, formability, and weldability, these materials are suitable for both structural and decorative applications, ensuring reliable performance even in tough industrial and environmental conditions.
