Emilio Stainless, a top-notch manufacturer and supplier located in Manila, Philippines, specializes in high-quality Stainless Steel 17-7 PH Sheets and Plates that are built for strength, durability, and resistance to corrosion. Renowned for their impressive mechanical properties and formability, these sheets and plates are perfect for demanding industrial applications. Emilio Stainless guarantees that every product is crafted using cutting-edge techniques and rigorous quality controls to comply with international standards. The 17-7 PH grade merges the advantages of stainless steel with increased hardness and toughness, making it ideal for industries that require high strength and lasting performance in tough conditions.
Stainless Steel 17-7 PH Sheets and Plates consist of about 17% chromium, 7% nickel, and a touch of aluminum for precipitation hardening. This distinctive blend offers high tensile and yield strength, remarkable corrosion resistance, and good formability. With tensile strength reaching approximately 1300 MPa and robust fatigue resistance, these sheets and plates hold their ground under both high stress and elevated temperatures. Their well-balanced composition makes them perfect for applications where strength and corrosion resistance are crucial.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.

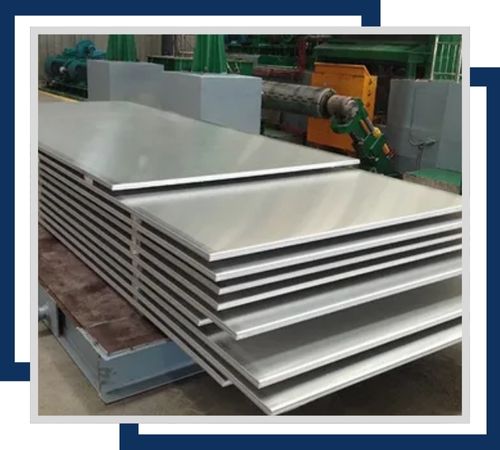

Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

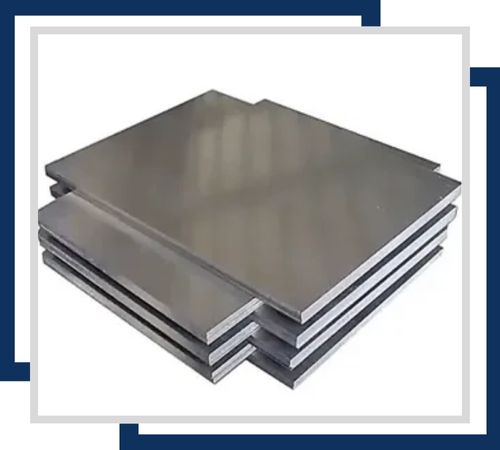

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

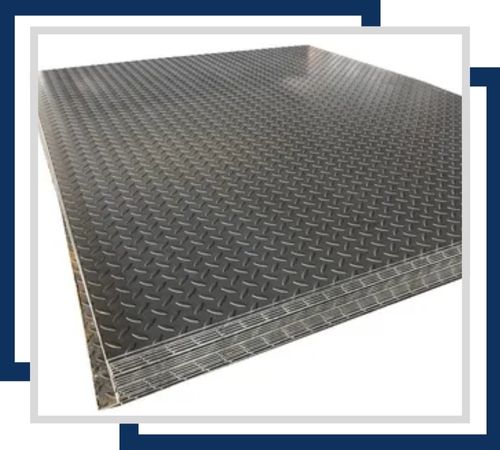

Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

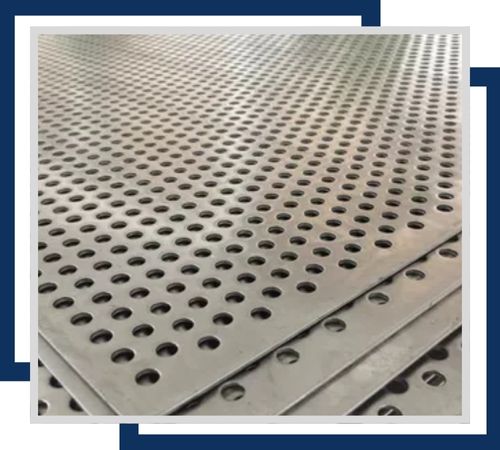

The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

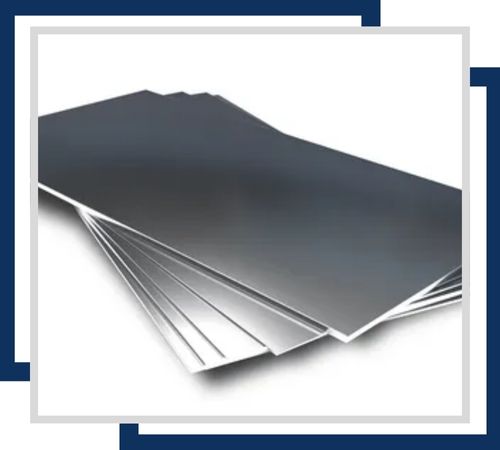

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

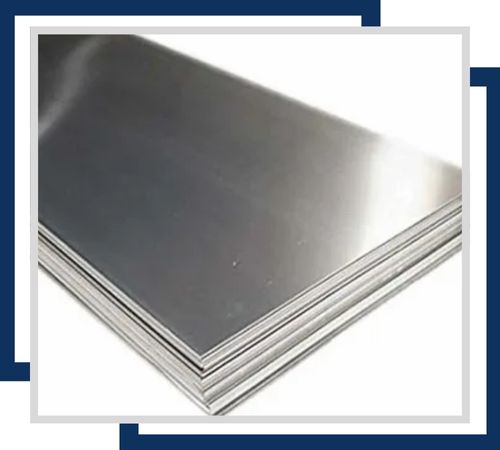

Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Emilio Stainless is committed to providing a great customer experience by offering full documentation for its high-quality Stainless Steel 17-7 PH Sheets and Plates. We provide important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports to prove authenticity and give strength to our superior quality. Moreover, our Stainless Steel 17-7 PH Sheets and Plates are provided with many test certificates like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These records assuredly ensure our customer satisfaction and constant product excellence.
Stainless Steel 17-7 PH Sheets and Plates find extensive use in the aerospace, marine, and chemical industries thanks to their exceptional mechanical strength and corrosion resistance. They are ideal for creating components like springs, diaphragms, pressure vessels, aircraft parts, and various mechanical equipment. These sheets and plates excel in both corrosive and high-temperature settings, ensuring long-lasting reliability. They are also utilized in the petrochemical, paper, and power generation sectors, where durability and precision are vital. Emilio Stainless offers 17-7 PH sheets and plates in a variety of sizes and finishes to cater to diverse needs.
