Emilio Stainless is a reputable manufacturer and supplier of Stainless Steel 347/347H Sheets and Plates, proudly located in Manila, Philippines. Renowned for its high-quality stainless steel products, the company caters to a diverse array of industries, including oil and gas, petrochemical, power generation, and chemical processing. Emilio Stainless is dedicated to offering corrosion-resistant, heat-resistant, and high-strength sheet and plate solutions that comply with international standards. With a focus on precision manufacturing, competitive pricing, and timely delivery, Emilio Stainless has established itself as a go-to source for Stainless Steel 347/347H Sheets and Plates throughout the Philippines and neighboring markets.
The Stainless Steel 347/347H Sheets and Plates from Emilio Stainless are crafted from stabilized austenitic stainless steels, which contain 17–19% chromium, 9–13% nickel, and columbium (niobium) to enhance resistance to intergranular corrosion. The “H” grade boasts a higher carbon content, providing improved strength at elevated temperatures. These materials exhibit excellent mechanical properties, with a tensile strength of around 515 MPa and a yield strength of approximately 205 MPa. They are particularly well-suited for high-temperature settings, where resistance to oxidation, creep, and stress rupture is essential for maintaining long-term structural integrity.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

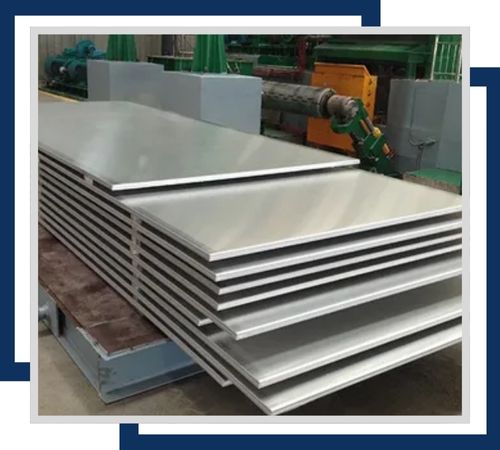

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

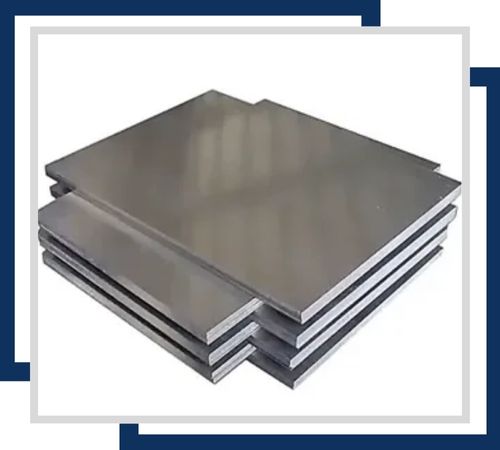

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.
These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

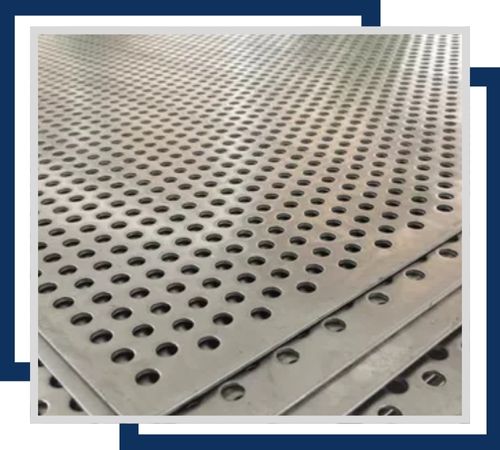

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

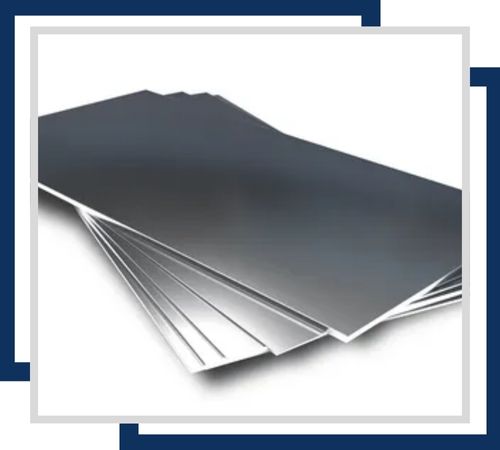

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

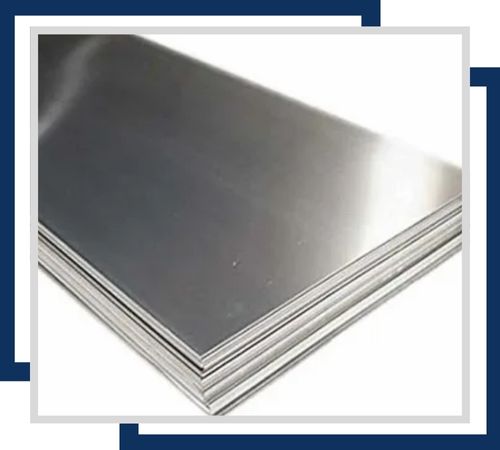

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Emilio Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
Emilio Stainless supplies Stainless Steel 347/347H Sheets and Plates for applications that demand superior performance in challenging, high-temperature, and corrosive environments. Common applications include heat exchangers, furnace components, pressure vessels, boiler parts, and chemical processing equipment. Their outstanding weldability and thermal stability make them perfect for both welded and structural applications in refineries, power plants, and marine industries.
