Emilio Stainless, located in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality Stainless Steel 304/304L Sheets and Plates. Renowned for their impressive corrosion resistance, durability, and formability, these products are perfect for a variety of industrial, architectural, and engineering uses. The 304/304L grades deliver exceptional performance, with 304L featuring a low carbon content that helps reduce carbide precipitation and improves weldability. At Emilio Stainless, advanced manufacturing methods and rigorous quality control ensure that every piece meets precise dimensions, maintains consistent quality, and boasts a long service life. These sheets and plates are versatile, providing reliability and high performance across numerous applications.
Stainless Steel 304/304L Sheets and Plates are composed of 18–20% chromium, 8–10.5% nickel, and a maximum of 0.08% carbon for 304 and 0.03% for 304L, along with small amounts of manganese, silicon, and phosphorus. These austenitic stainless steels showcase a tensile strength ranging from 485–620 MPa and a yield strength of about 170–310 MPa, along with excellent ductility and toughness. The 304L grade is particularly advantageous for welding due to its low carbon content, which minimizes the risk of sensitization. These sheets and plates maintain their dimensional stability, corrosion resistance, and mechanical strength in various environmental conditions, making them ideal for industrial, structural, and fabrication applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.

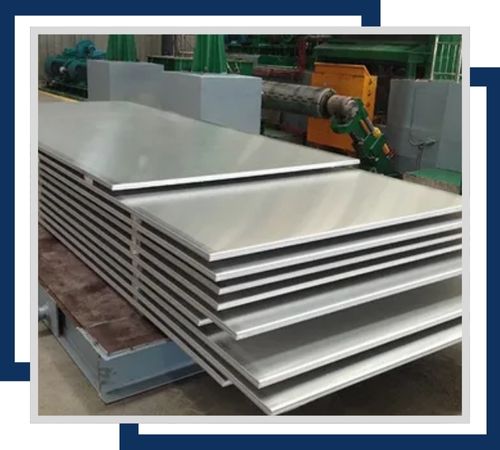

This type of stainless steel is known for its good corrosion resistance. The thickness of this type of stainless steel ranges from 3mm to 100mm. The sheets and plates are available in sizes up to 1500mm x 3000mm. Suitable for structural applications and industrial uses.

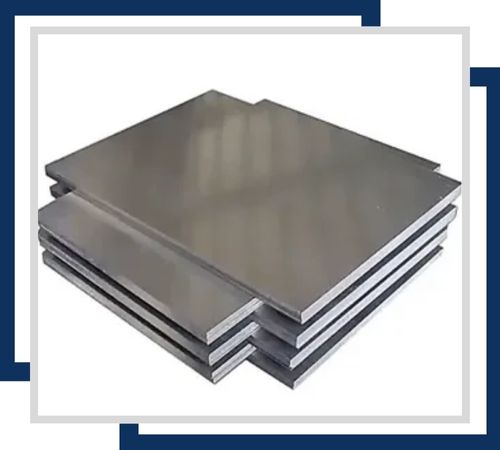

Offering great corrosion resistance, 304L cold-rolled sheets and plates are well known for smooth finish. These are available in thicknesses of 0.5mm up to 12mm, standard sizes up to 1500mm x 3000mm. They are ideal for applications requiring high-quality surface.

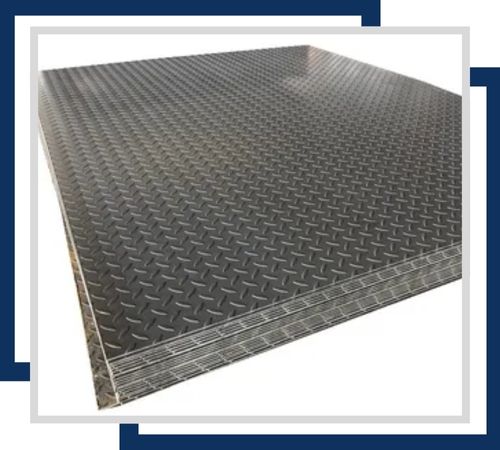

With superior corrosion resistance, 304L chequered sheets and plates are designed for anti-slip applications. They typically come in 2mm to 6mm thicknesses and sizes up to 1500mm x 3000mm. They are commonly used in flooring and stair treads.

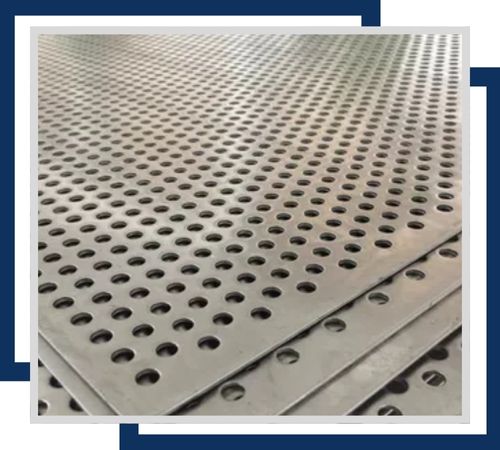

Featuring excellent corrosion resistance, these hole-perforated sheets and plates come in different hole patterns, size, and thickness with a specified range of 0.5mm to 6mm, standard dimension up to 1500mm x 3000mm, suitable for filtration and decorative uses.

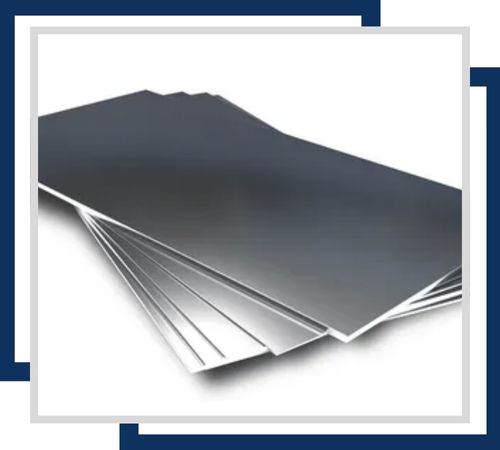

304 shim sheets and plates have good corrosion resistance. They can be as thin as 0.1mm. Standard sizes can go up to 1500mm x 3000mm. These are used in machinery for accurate spacing and adjustment.

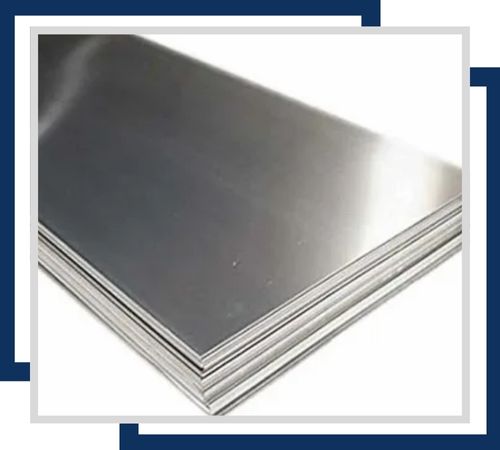

304 polished sheets and plates offer excellent corrosion resistance and a high-gloss finish. Thicknesses from 0.5mm to 12mm, and sizes up to 1500mm x 3000mm. Aesthetic and architectural applications.
Emilio Stainless aims at making the purchase process hassle-free for its clients by offering detailed documentation of excellent quality Stainless Steel 304/304L Sheets and Plates. These include critical commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports, which give the authenticity and premium quality to our products. We also offer Stainless Steel 304/304L Sheets and Plates with Test Certificate like EN 10204 3.1b, PMI Test Certificate, radiography test reports of 100%, and third-party inspection. It shows us focused on satisfaction to our valued customers and also hard work.
Stainless Steel 304/304L Sheets and Plates find extensive use in the chemical processing, food and beverage sectors, pharmaceutical equipment, architectural projects, and industrial fabrication. They are perfect for creating ductwork, panels, enclosures, kitchen equipment, machine parts, and structural components that require both corrosion resistance and durability. The 304L grade is especially well-suited for welded applications thanks to its low carbon content. Emilio Stainless offers 304/304L sheets and plates in a range of sizes and thicknesses, ensuring that you can find the right fit for your needs.
